Home >> Nissan-Datsun >> 1999 >> Sentra GXE L4-1597cc 1.6L DOHC MFI (GA16DE) >> Repair and Diagnosis >> Heating and Air Conditioning >> Air Door >> Air Door Actuator / Motor >> Testing and Inspection >> Fresh Air/Recirculation Switch

Fresh Air/Recirculation Switch




PART 1 OF 2




PART 2 OF 2

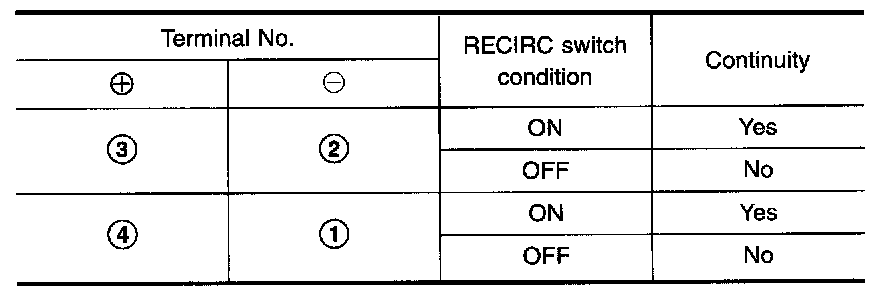

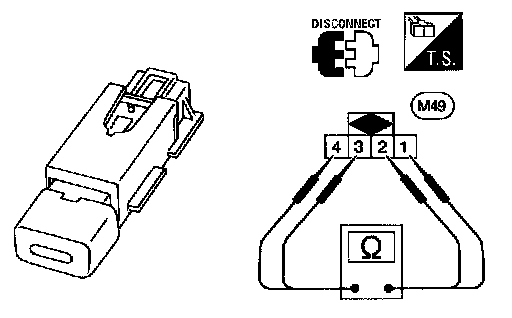

Check continuity between terminals at each switch position.
