Rear Crankshaft Main Bearing Seal: Service and Repair

Rear Oil Seal
1. Remove flywheel or drive plate.
2. Remove rear oil seal retainer.
3. Remove traces of liquid gasket using scraper.

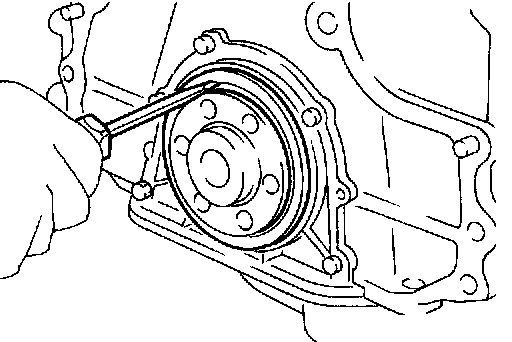

4. Remove seal from rear oil seal retainer.
- Be careful not to scratch rear oil seal retainer.

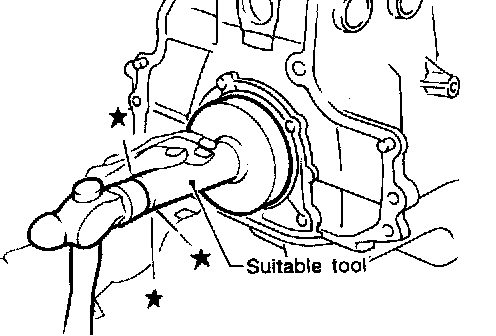

5. Apply new engine oil to new oil seal and install it using a suitable tool.

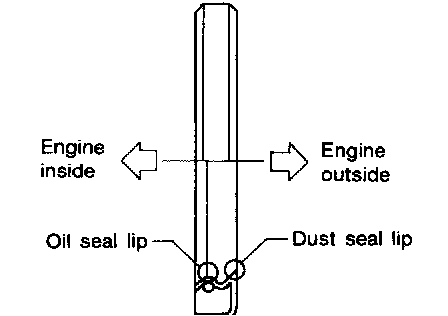

- Install new oil seal in the direction shown.
