Trunk Lamp

MODELS WITHOUT POWER DOOR LOCKS

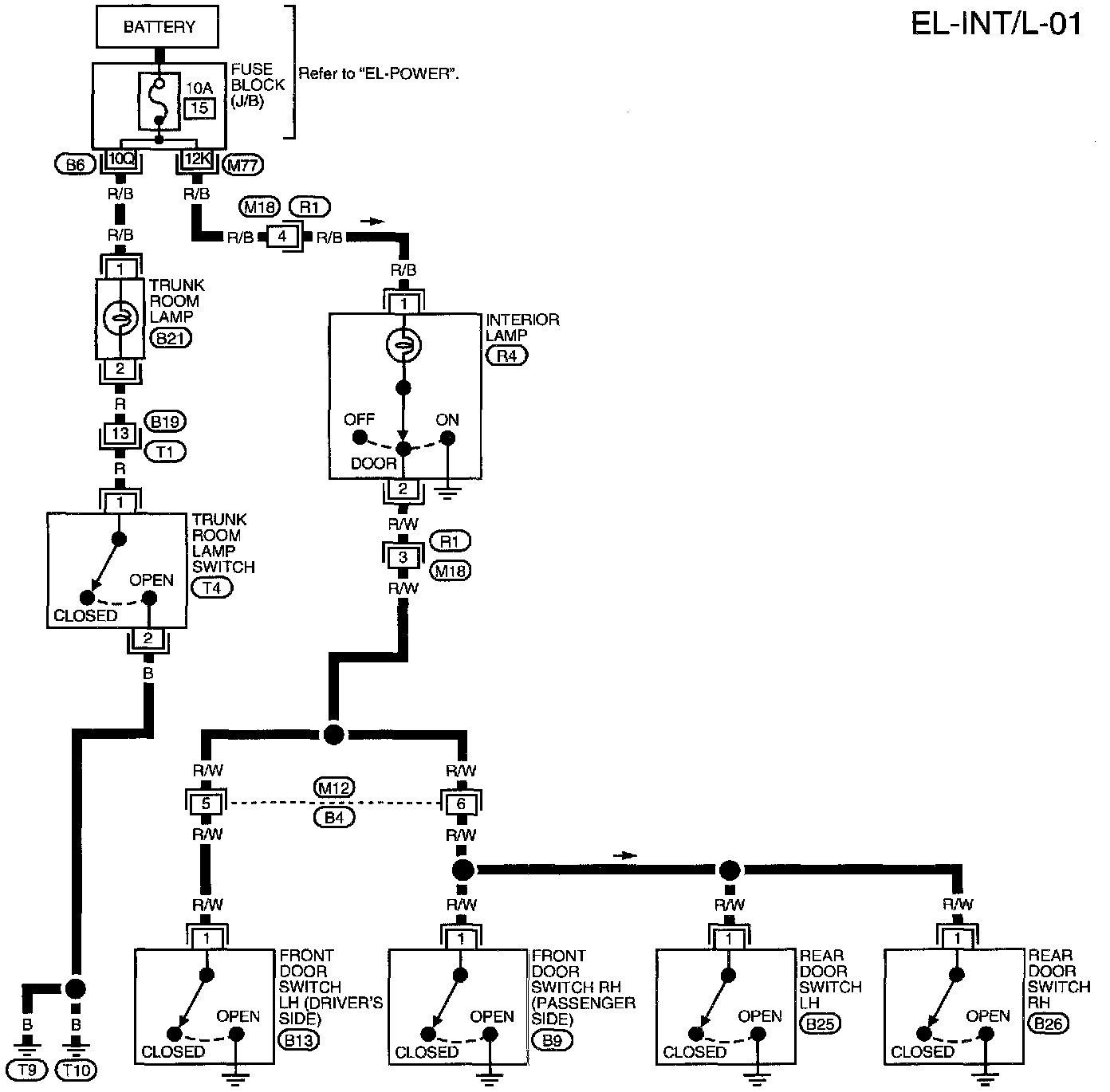

Circuit Diagram





Circuit Connectors


MODELS WITH POWER DOOR LOCKS

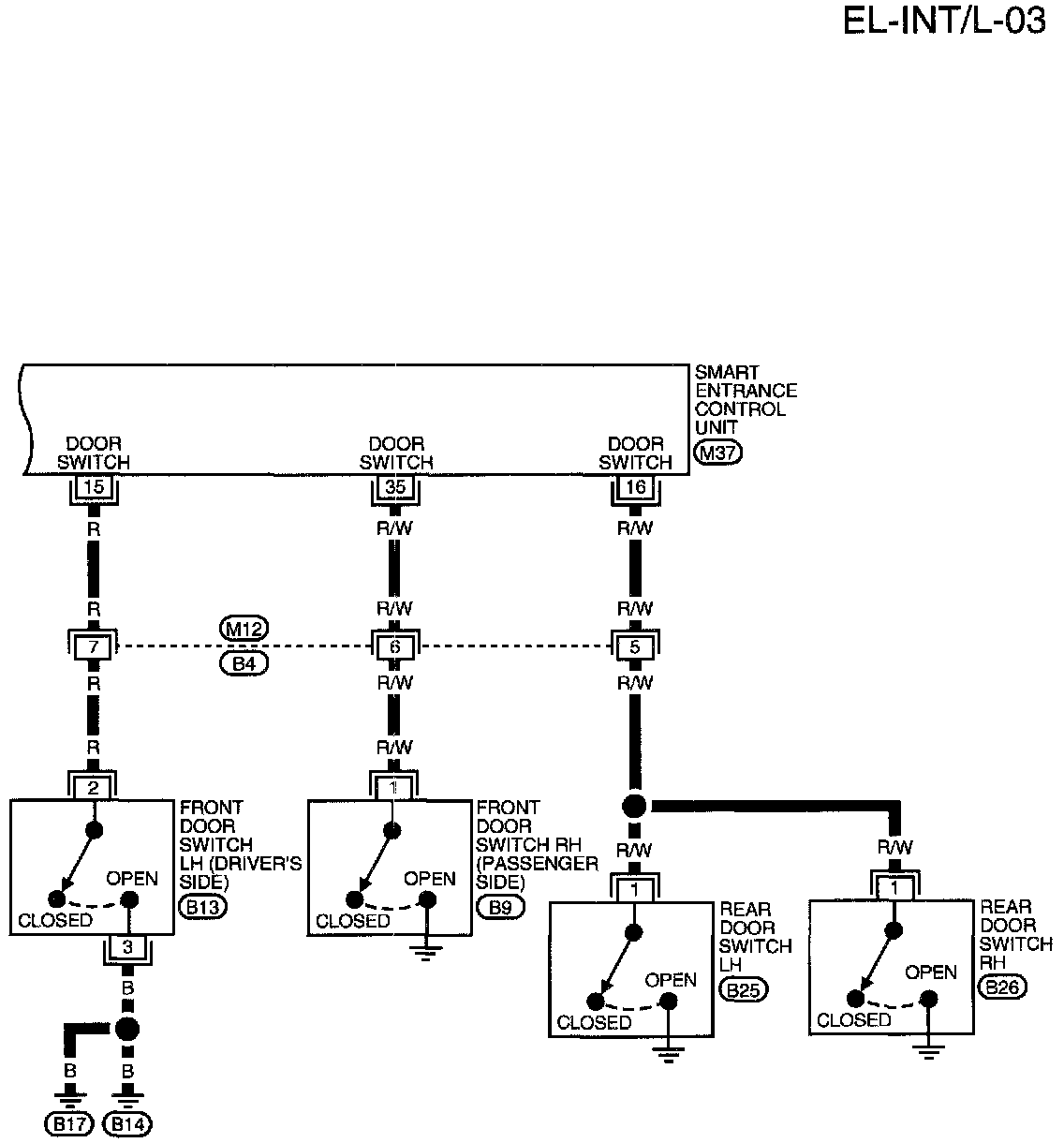

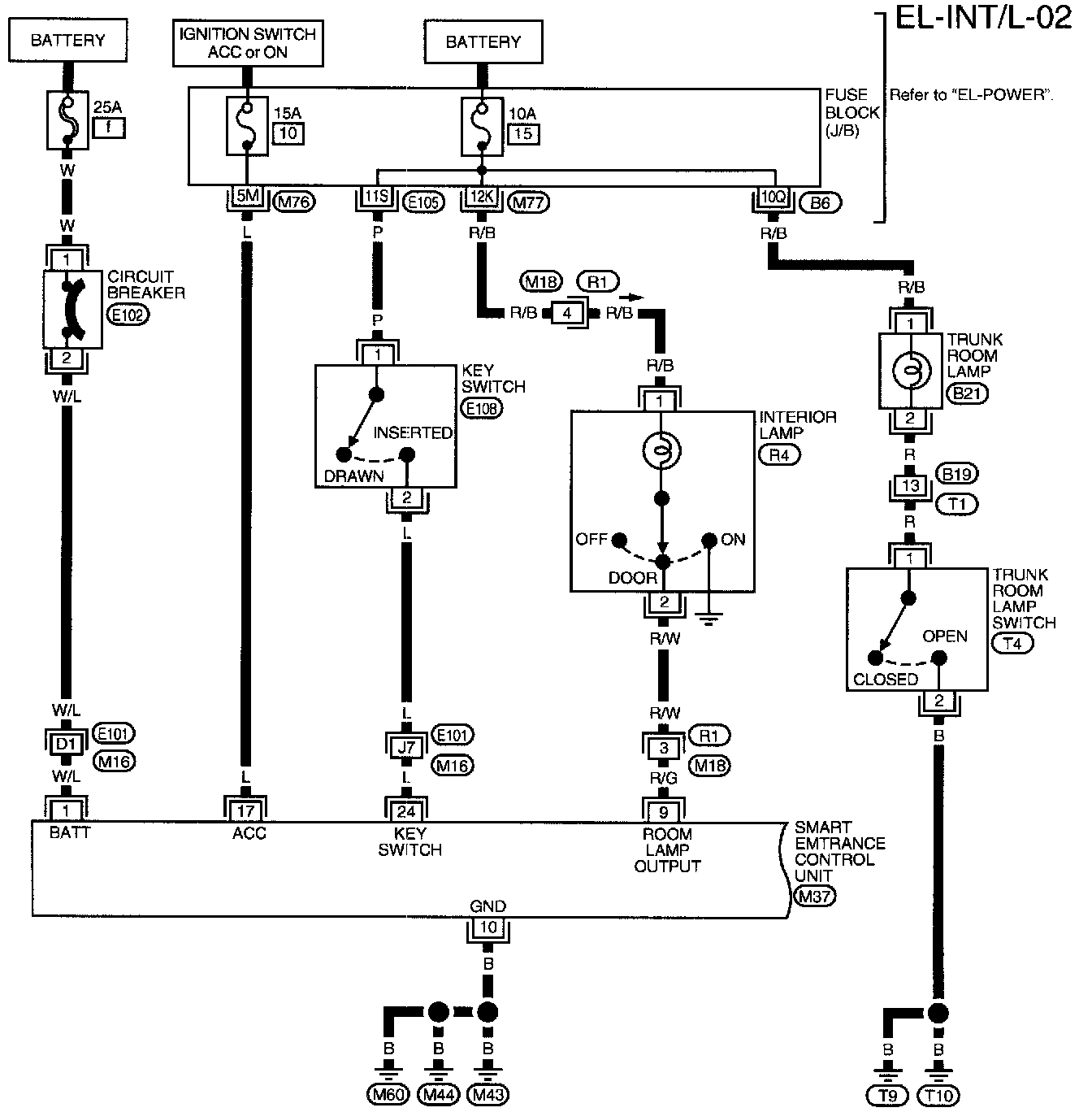

Circuit Diagrams








Circuit Connectors





E101, M16 Engine Harness and Main Room Harness Terminal Arrangement





M37 Control Units Terminal Arrangements
