Keyless Entry

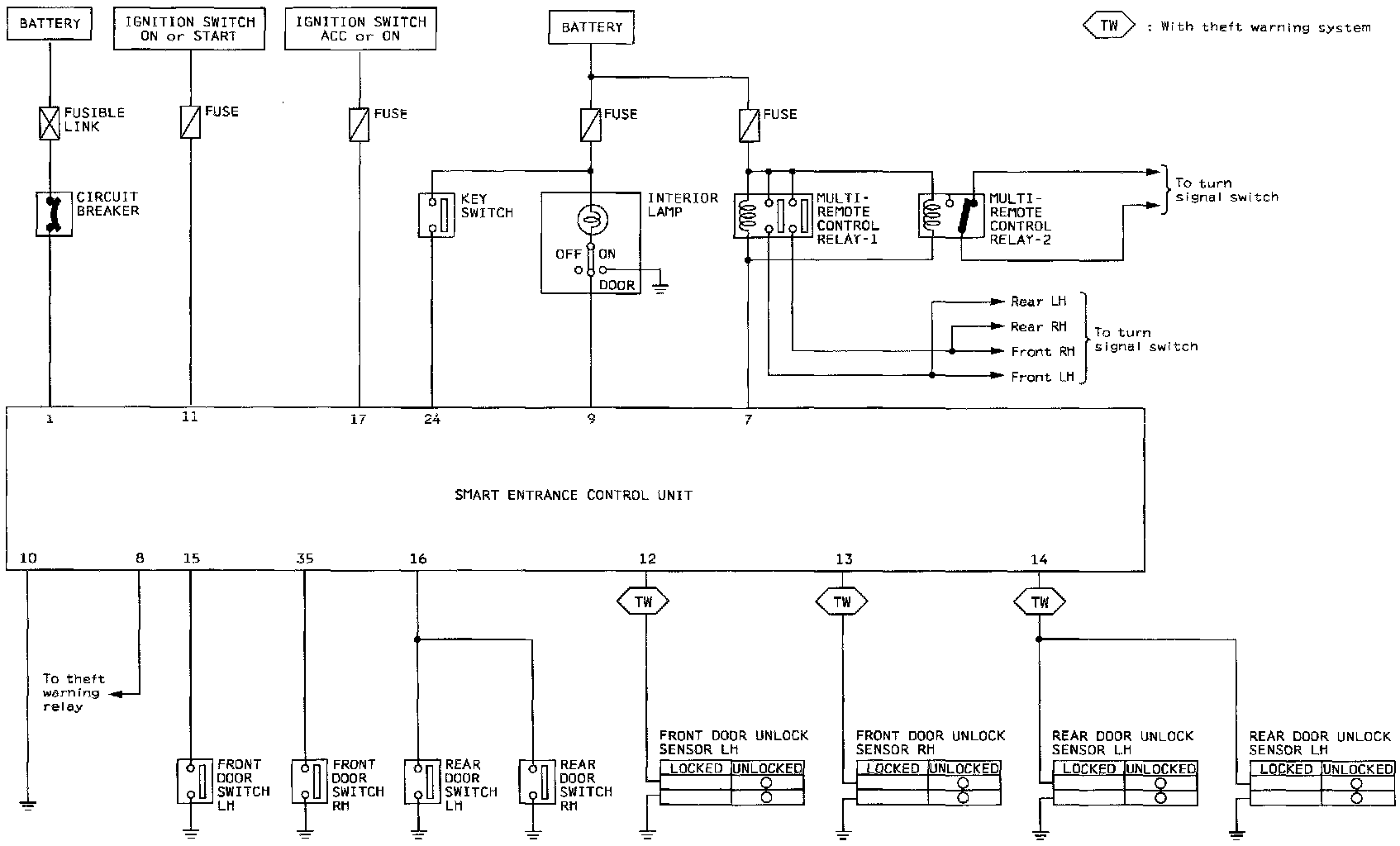

Schematic For The Multi-Remote Control System

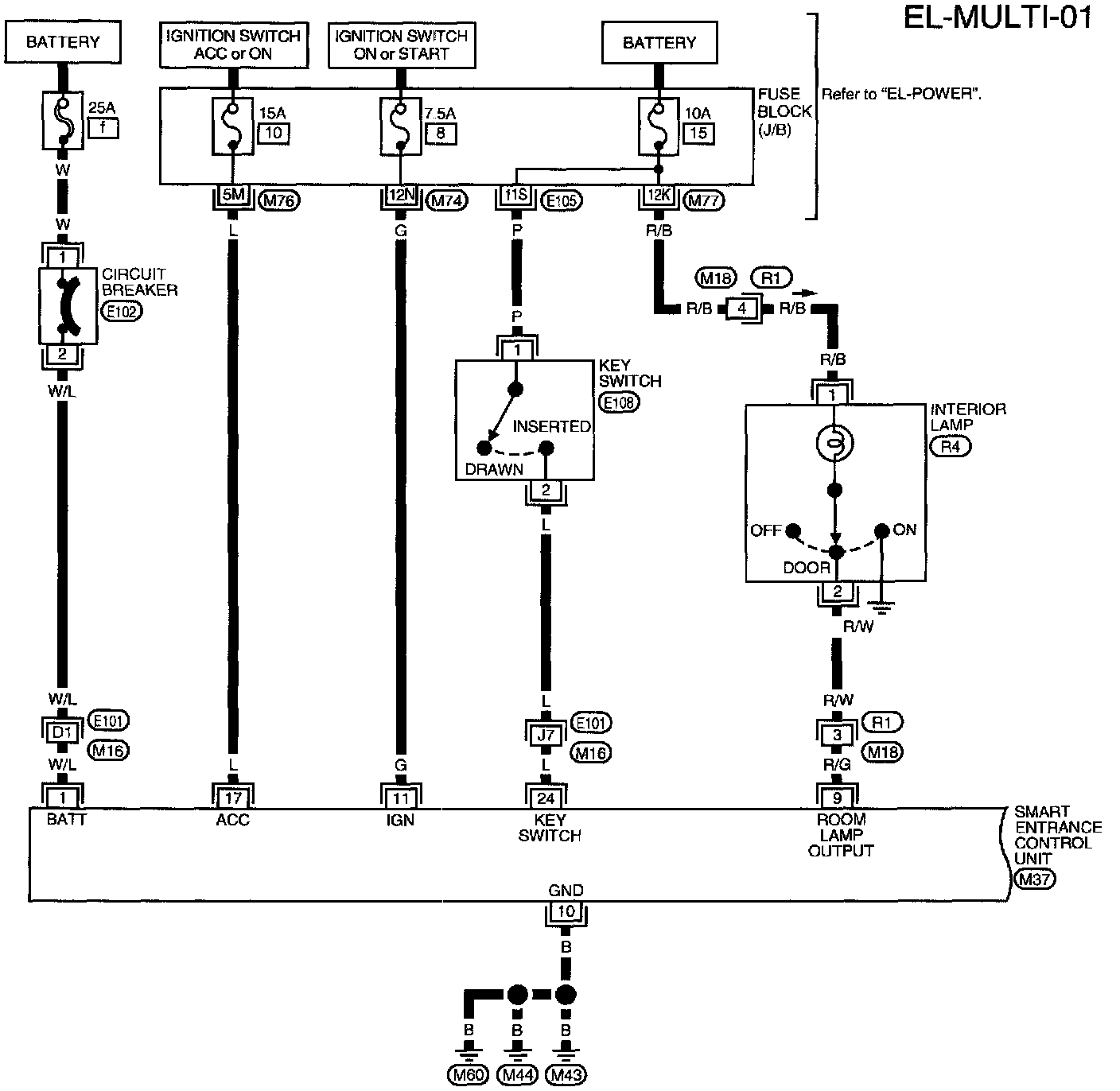

(Part 1 of 4)
Circuit Breaker
Fuse Block (J/B)
Interior Lamp
Key Switch
Smart Entrance Control Unit
- Key Switch
- Room Lamp Output

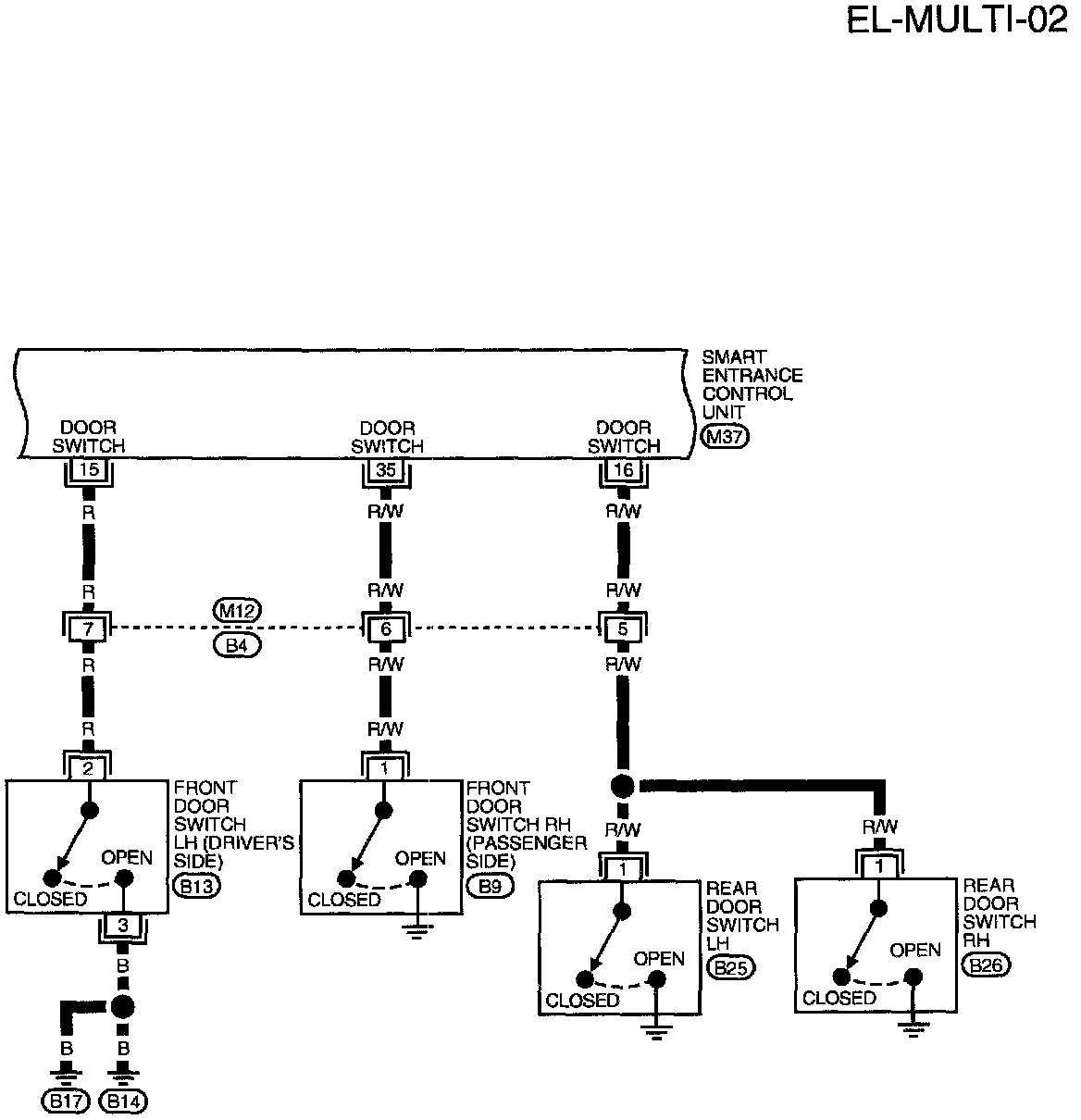

(Part 2 of 4)
Front Door Switch LH
Front Door Switch RH
Rear Door Switch LH
Rear Door Switch RH
Smart Entrance Control Unit
- Door Switch

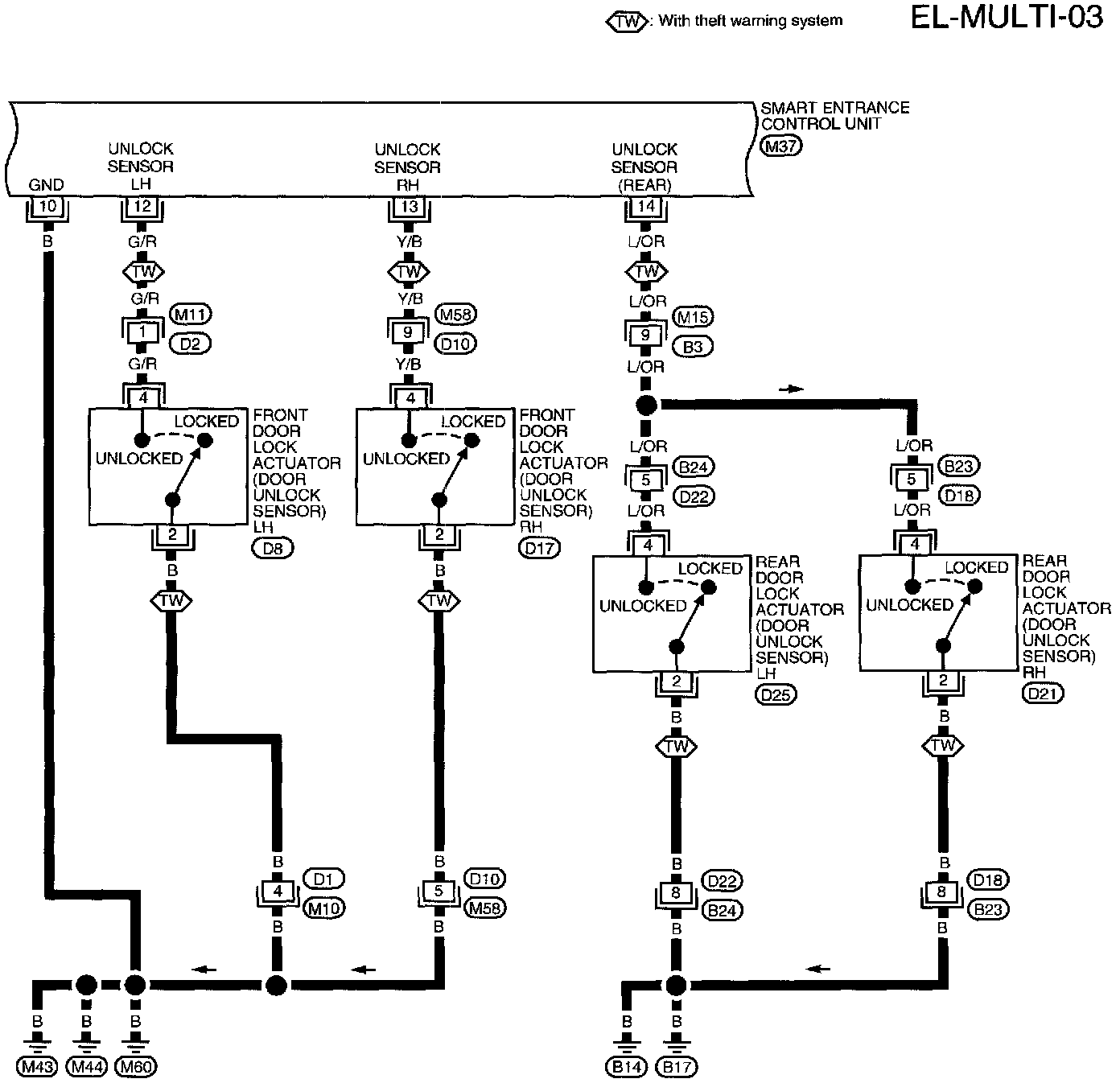

(Part 3 of 4)
Front Door Lock Actuator LH
Front Door Lock Actuator RH
Rear Door Lock Actuator LH
Rear Door Lock Actuator RH
Smart Entrance Control Unit
- Unlock Sensor

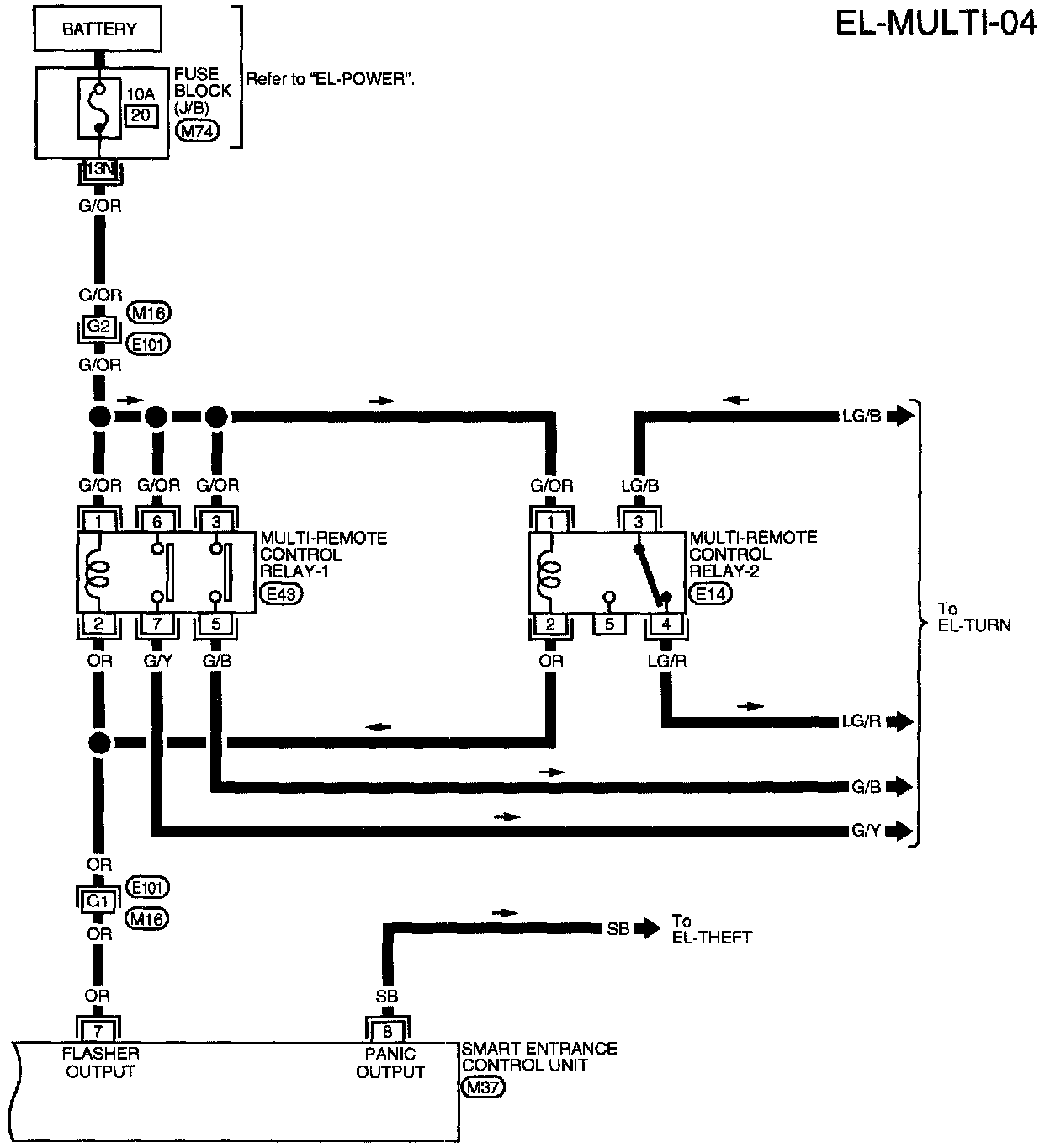

(Part 4 of 4)
Fuse Block (J/B)
Multi-Remote Control Relay-1
Multi-Remote Control Relay-2
Smart Entrance Control Unit
- Flasher Output
- Panic Output














Circuit Connectors





E101, M16 Engine Harness and Main Room Harness Terminal Arrangement





M37 Control Units Terminal Arrangements
