EL-METER-2

Without Tachometer

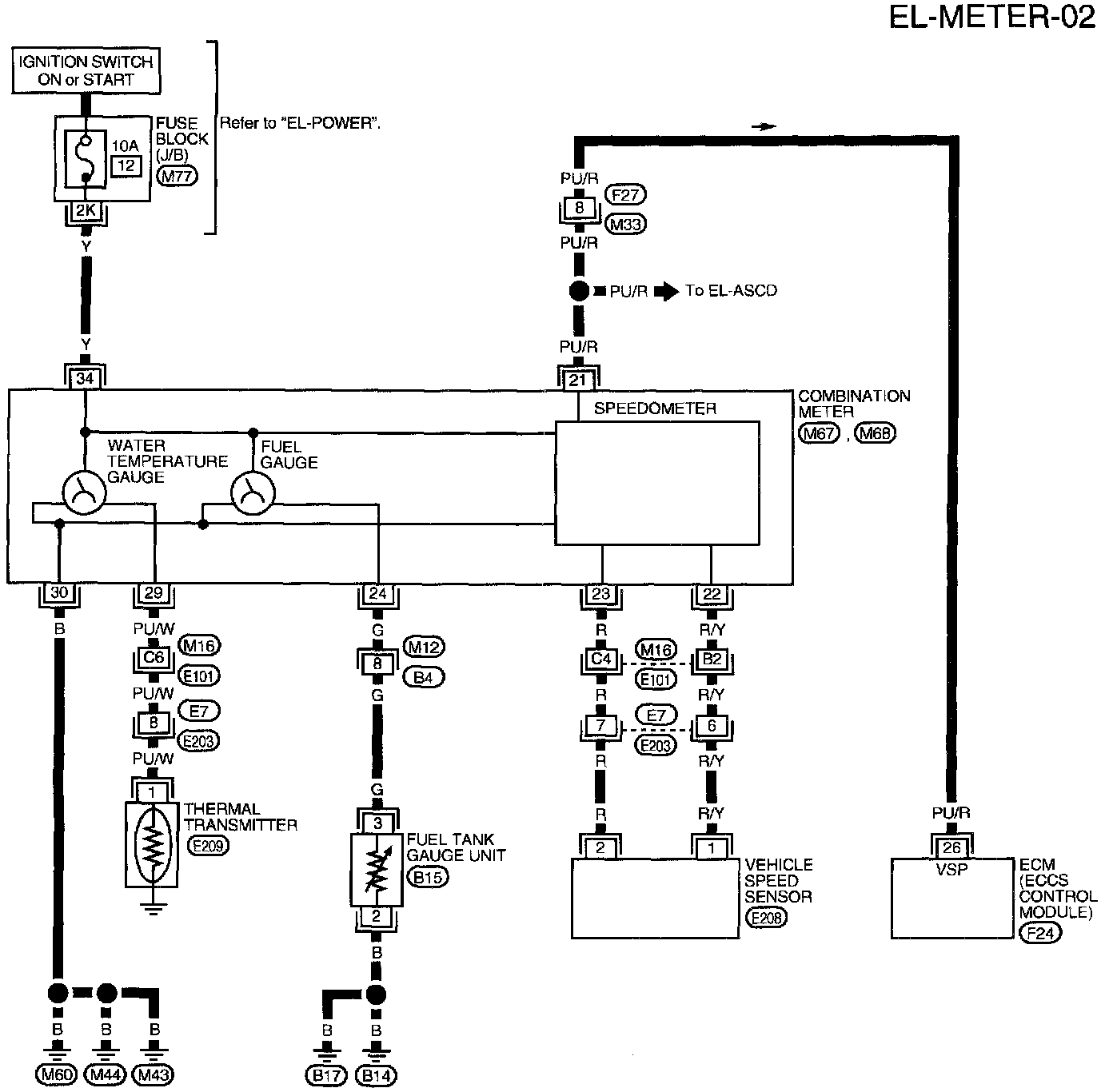

EL-METER-02

Meters And Gauges Circuit Connectors

E101, M16 Engine Harness and Main Room Harness Terminal Arrangement

F24 Control Units Terminal Arrangements
