EC-VENT/V

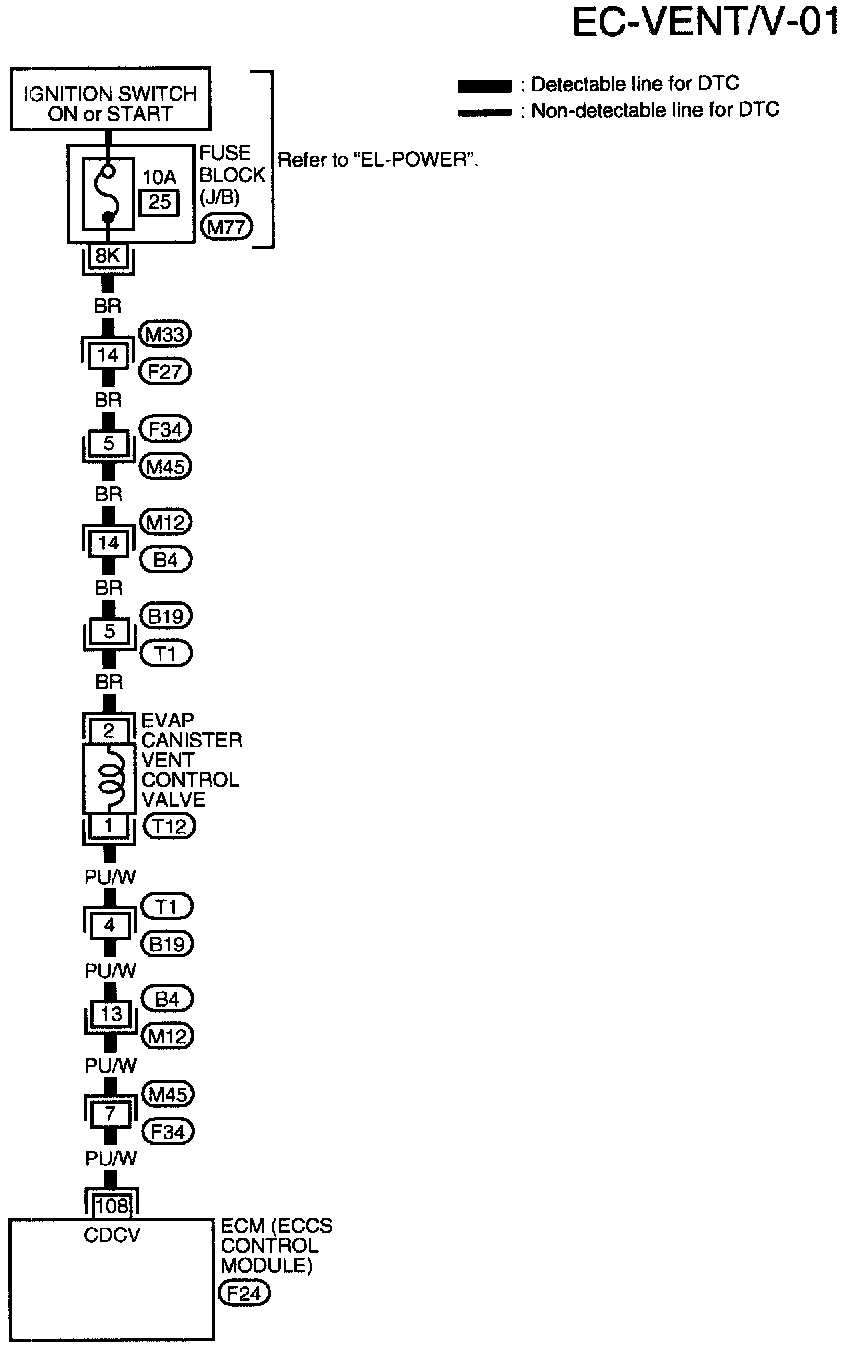

EC-VENT/V-01





Evaporative Emission (EVAP) Canister Vent Control Valve (Circuit) Circuit Connectors
