EC-FUEL

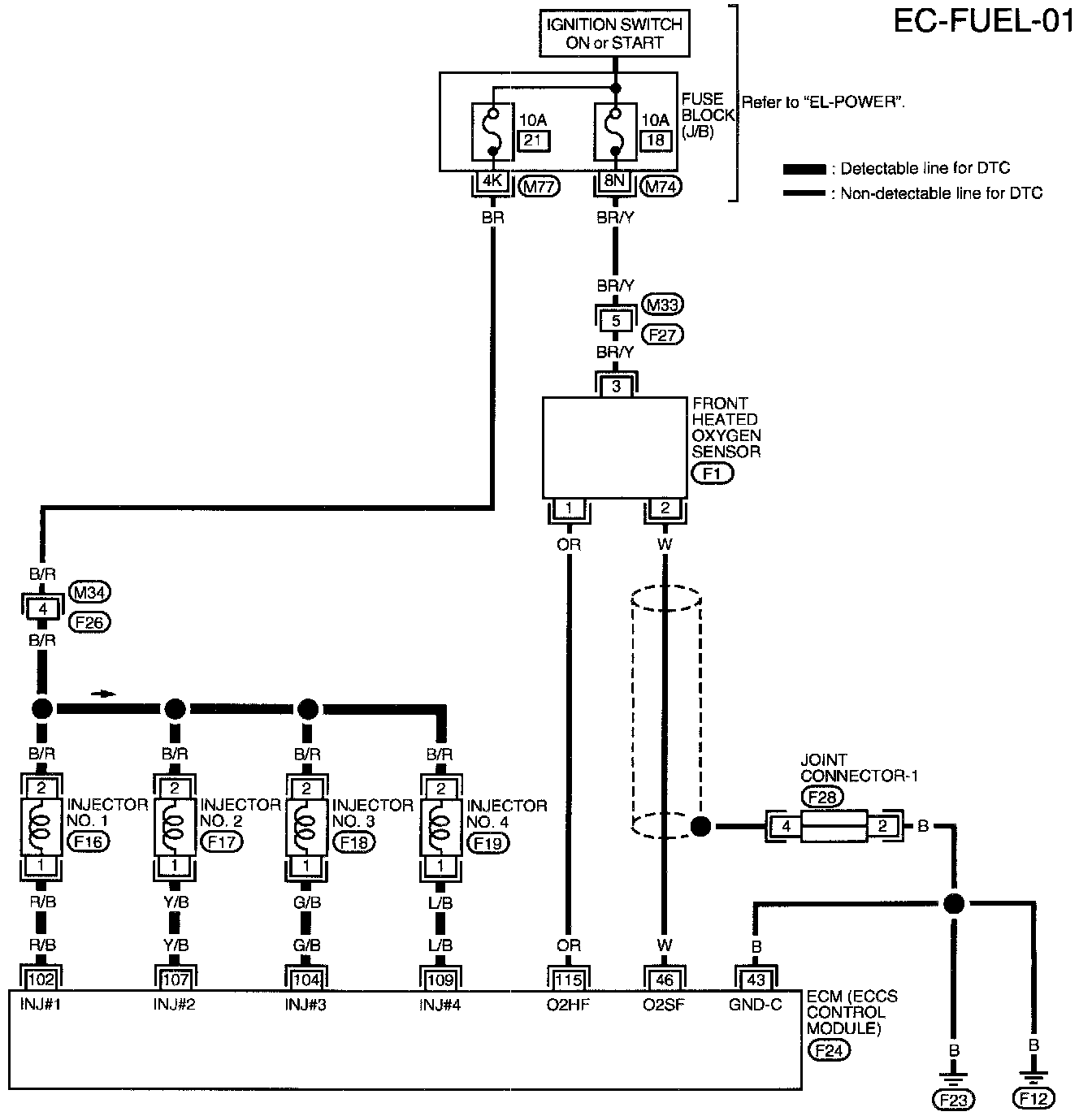

EC-FUEL-01 (DTC: P0171)





(Lean Side) Circuit Connectors





E101, M16 Engine Harness and Main Room Harness Terminal Arrangement





F28 Joint Connector Terminal Arrangement
