CONTROL VALVE ASSEMBLY AND ACCUMULATOR
REMOVAL





1. Drain ATF from transaxle.

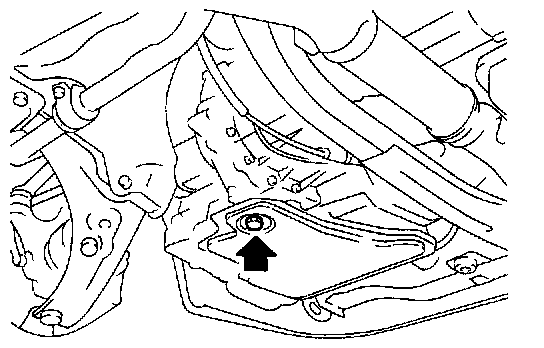

2. Remove oil pan and gasket.

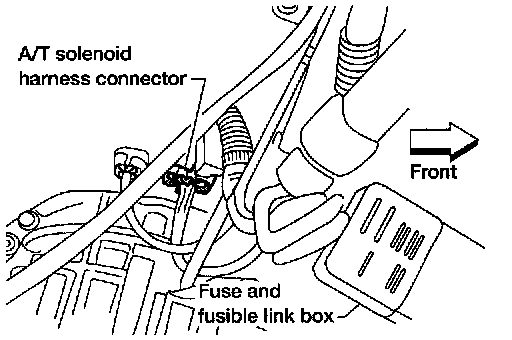

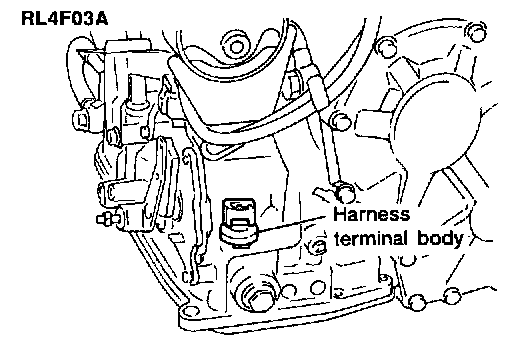

3. Disconnect A/T solenoid harness connector.

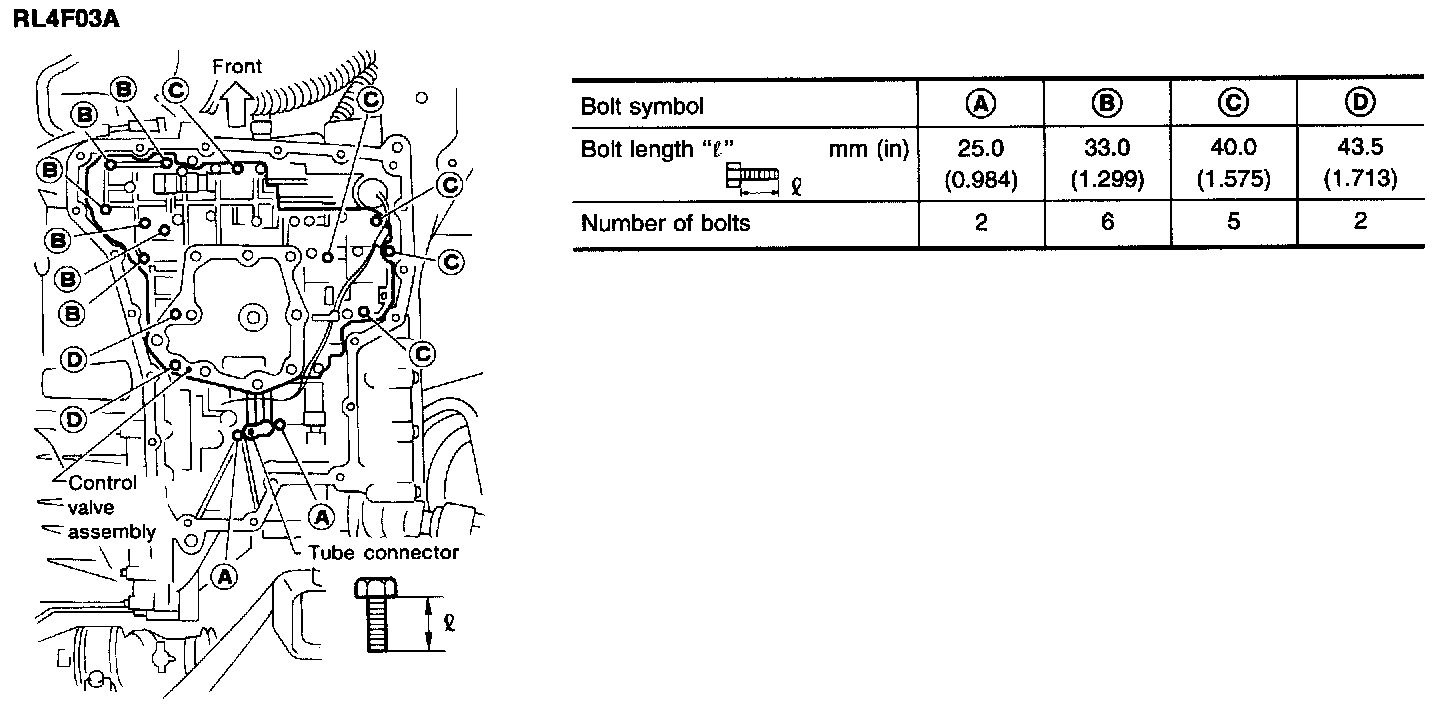

Bolt length, number and location:





4. Remove control valve assembly by removing fixing bolts.

- Be careful not to drop manual valve, tube connector, tubes and servo release accumulator return spring.

5. Disassemble and inspect control valve assembly if necessary.

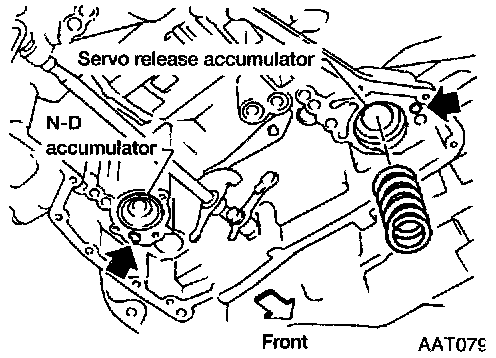

6. Remove servo release and N-D accumulators by applying compressed air if necessary.
- Hold each piston with a rag.

INSTALLATION





- Tighten fixing bolts to specification.

Torque: 7 - 9 Nm (0.7 - 0.9 kg-m, 61 - 78 inch lbs.)

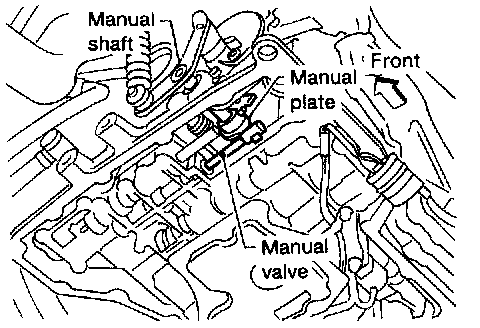

- Set manual shaft in Neutral position, then align manual plate with groove in manual valve.
- After installing control valve assembly, make sure that selector lever can be moved to all positions.
