Seals and Gaskets: Service and Repair

DIFFERENTIAL SIDE OIL SEAL REPLACEMENT





1. Remove drive shaft assemblies.

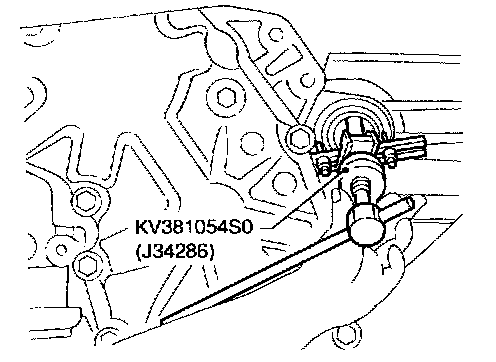

2. Remove oil seals.

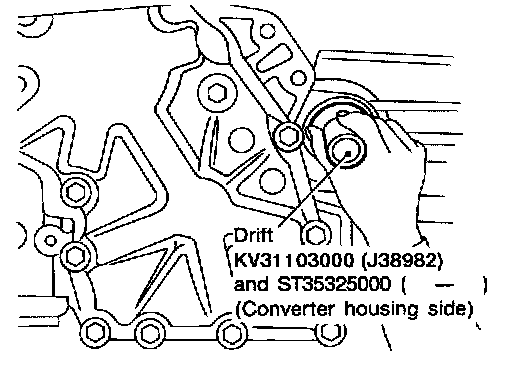

3. Install oil seals.
- Apply ATF before installing.

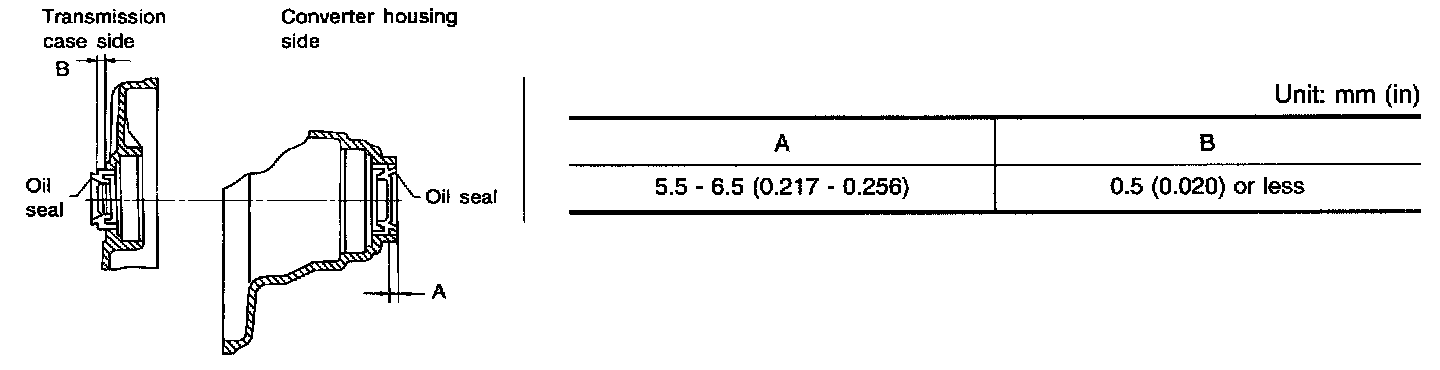

- Install oil seals so that dimensions "A" and "B" are within specification.
4. Reinstall any part removed.
