Electrical Diagrams

Part 1 Of 2:

Part 2 Of 2:

Schematic Diagrams

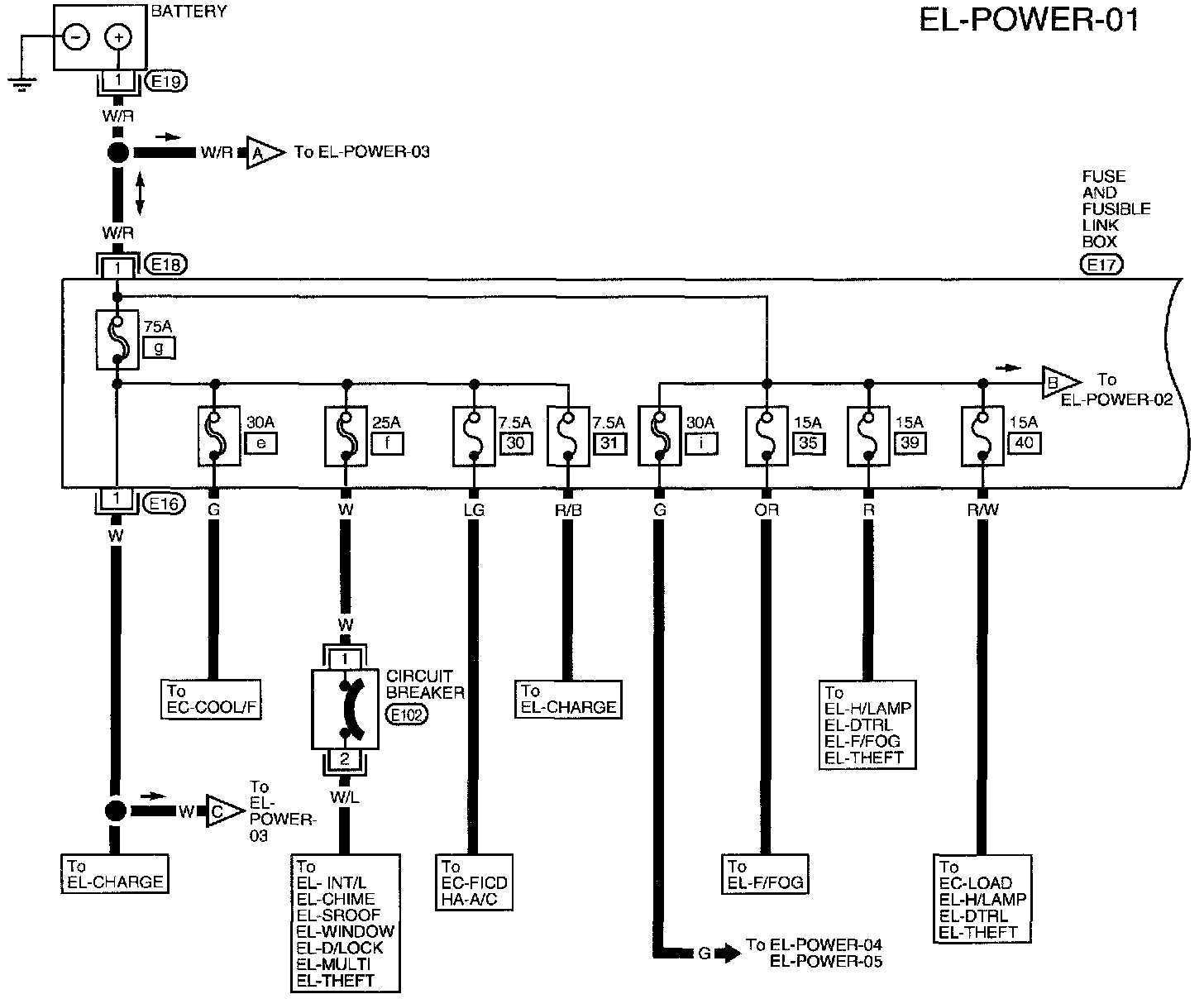

(Battery Power Supply - Ignition SW. In any position) (Part 1 Of 6)
Battery
Circuit Breaker
Fuse And Fusible Link Box

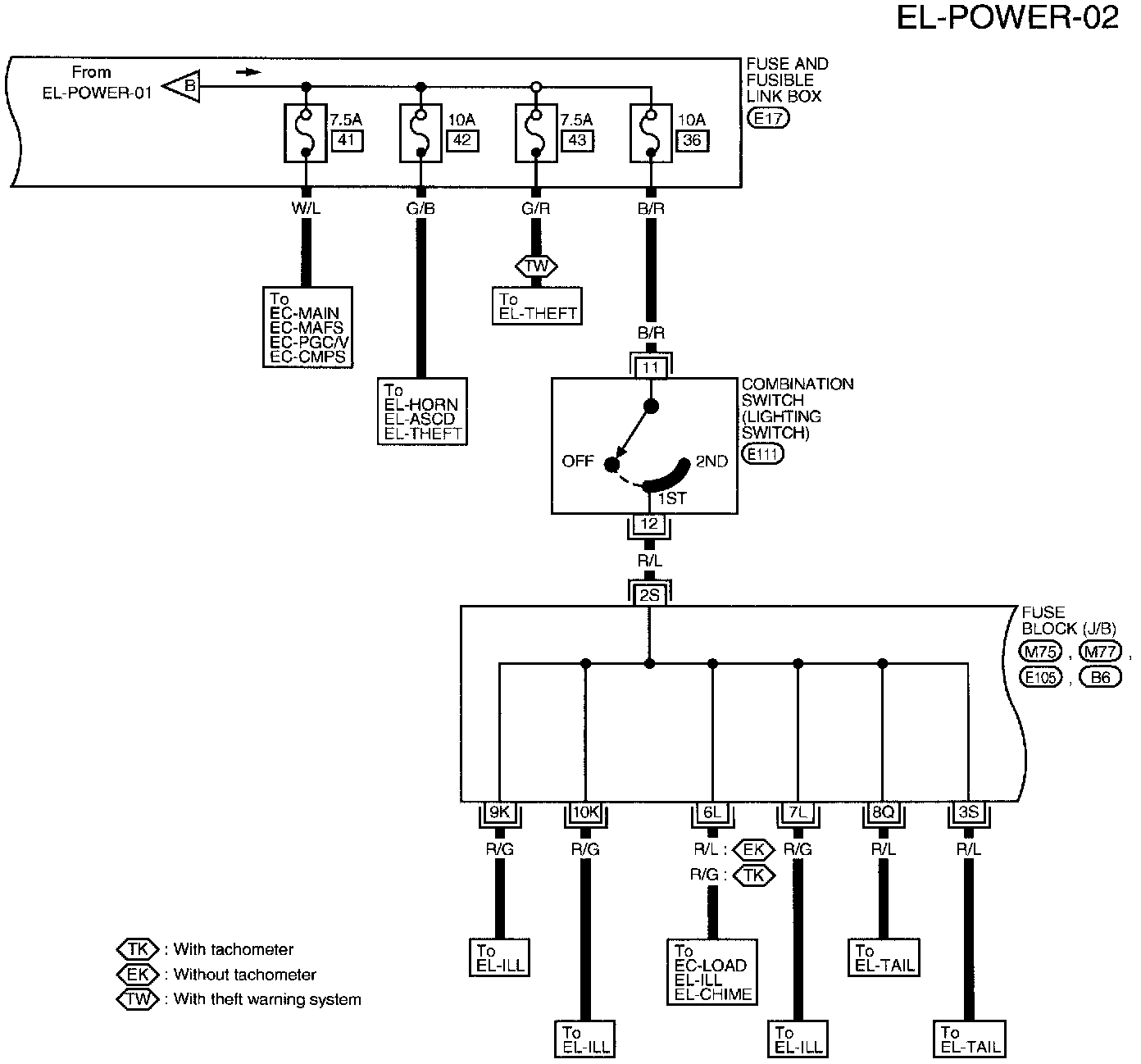

(Battery Power Supply - Ignition SW. In any position) (Part 2 Of 6)
Combination Switch (Lighting Switch)
Fuse And Fusible Link Box
Fuse Block (J/B)

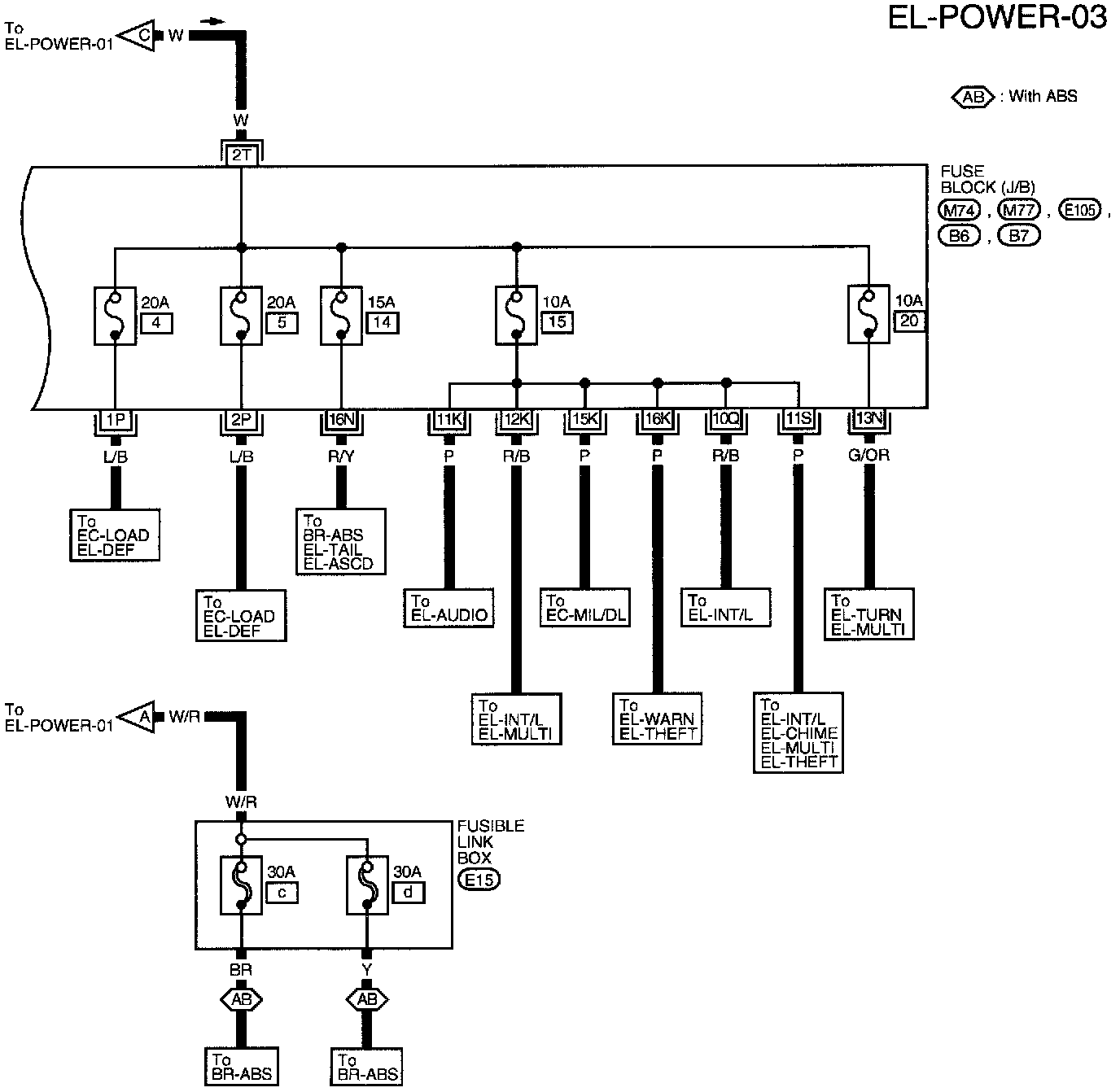

(Battery Power Supply - Ignition SW. In any position) (Part 3 Of 6)
Fuse Block (J/B)
Fusible Link Box

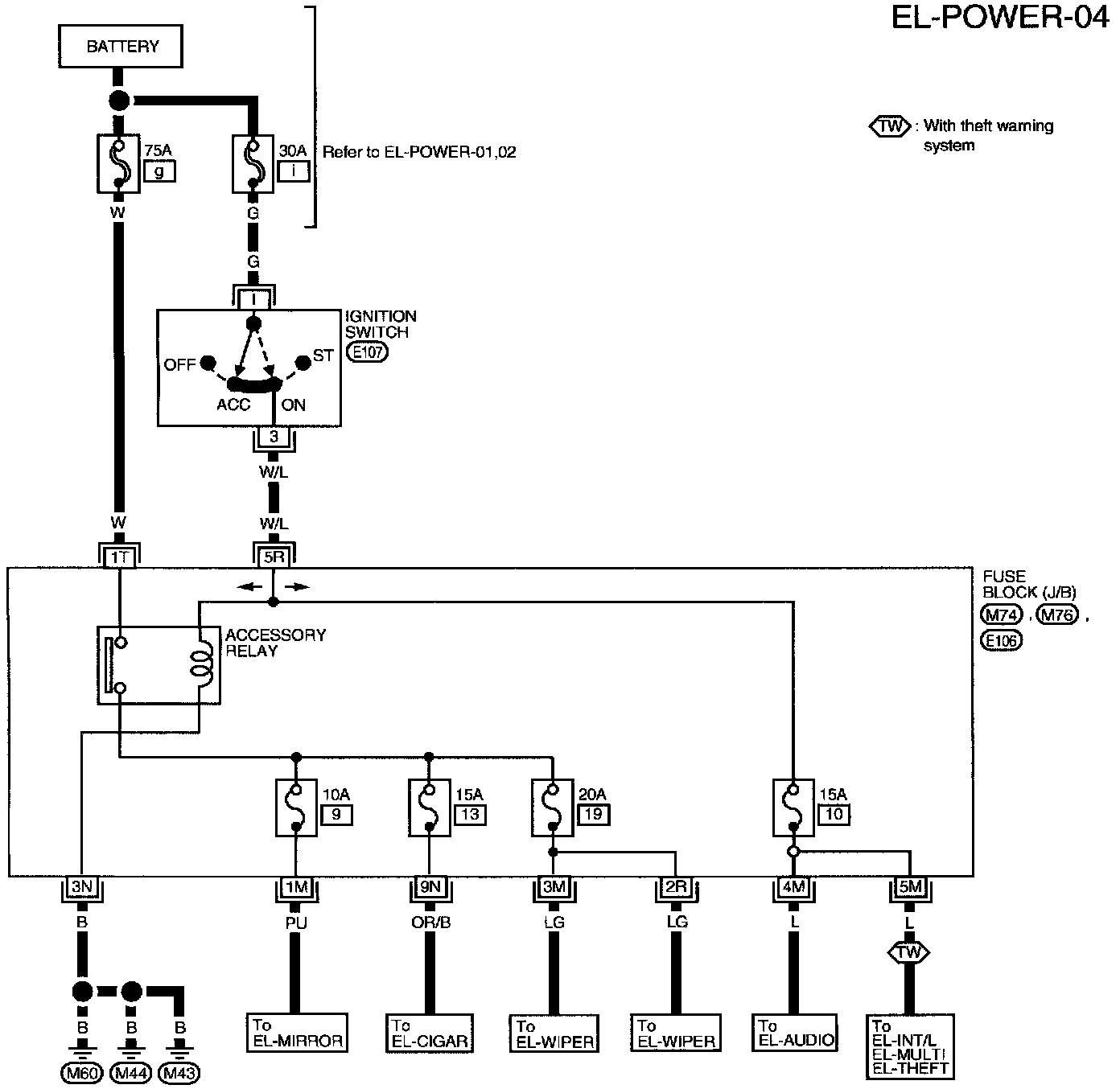

Accessory Power Supply - Ignition SW. in "ACC" or "ON") (Part 4 Of 6)
Accessory Relay
Battery
Fuse Block (J/B)
Ignition Switch

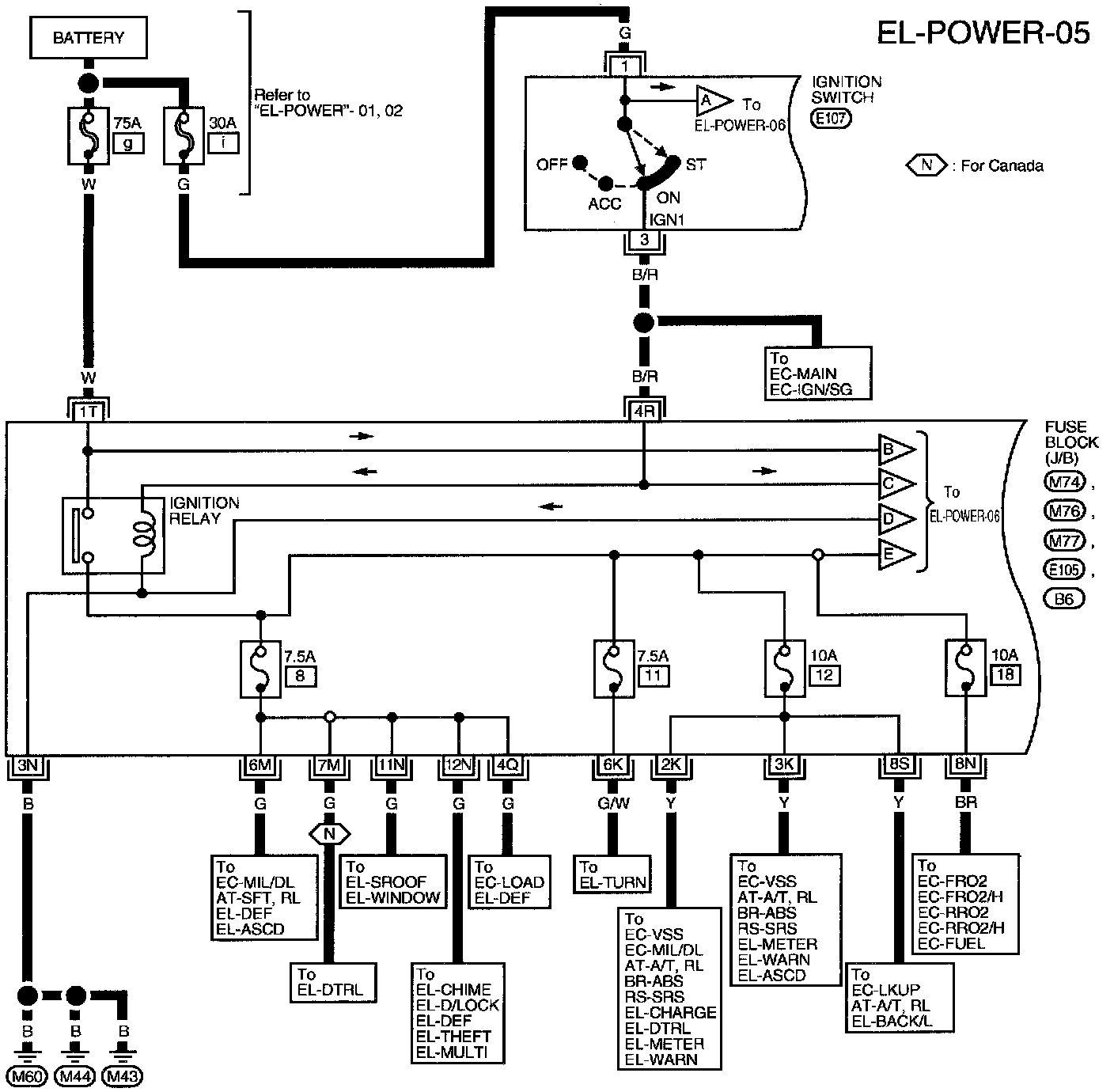

Ignition Power Supply - Ignition SW. in "ON" and/or "START") (Part 5 Of 6)
Battery
Fuse Block (J/B)
Ignition Relay
Ignition Switch

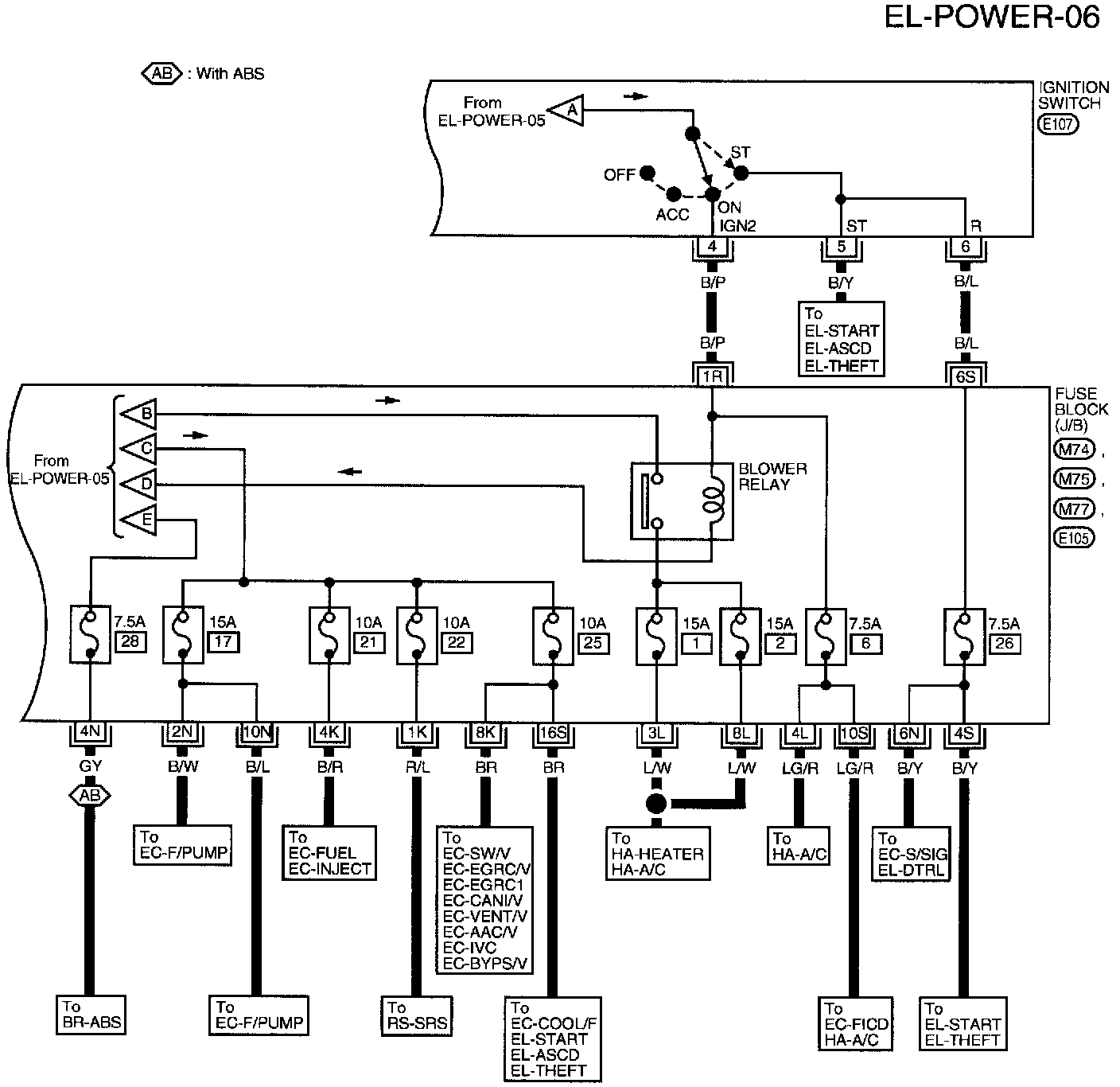

Ignition Power Supply - Ignition SW. in "ON" and/or "START") (Part 6 Of 6)
Blower Relay
Fuse Block (J/B)
Ignition Switch
























Circuit Connectors




M74, M75, M76, M77, B6, B7, E105, E106 Fuse Block - Junction Box (J/B) Terminal Arrangement
