Ball Joint

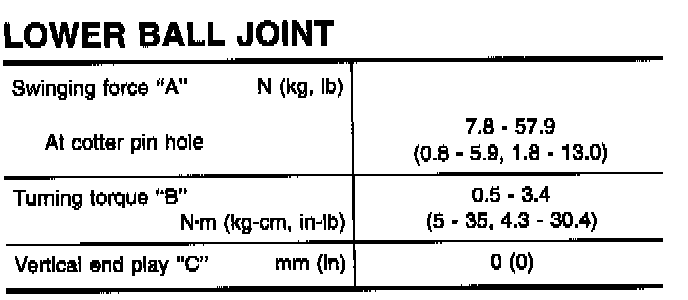

SERVICE SPECIFICATIONS

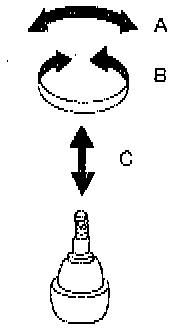

Swinging Force "A" [1]: 7.8 - 57.9 N (1.8 - 13.0 lbs.)
Turning Torque "B": 0.5 - 3.4 Nm (4.3 - 30.4 inch lbs.)
Vertical End Play "C": 0 mm (0 inch)

TIGHTENING SPECIFICATIONS
Lower Ball Joint Castle Nut: 59 - 74 Nm (43 - 54 ft. lbs.)

[1]: Measuring point: cotter pin hole of ball stud.
