Flow of Diagnosis

A good understanding of the malfunction conditions can make troubleshooting faster and more accurate. In general, each customer feels differently about a problem. It is important to fully understand the symptoms or conditions of a customer complaint.

Information From Customer
WHAT.......Vehicle Model

WHEN.......Date, Frequencies

WHERE......Road Conditions

HOW........Operating Conditions, Symptoms

Preliminary Check
Check that the following parts are in good order.
- Battery
- Fuse
- System component-to-harness connections

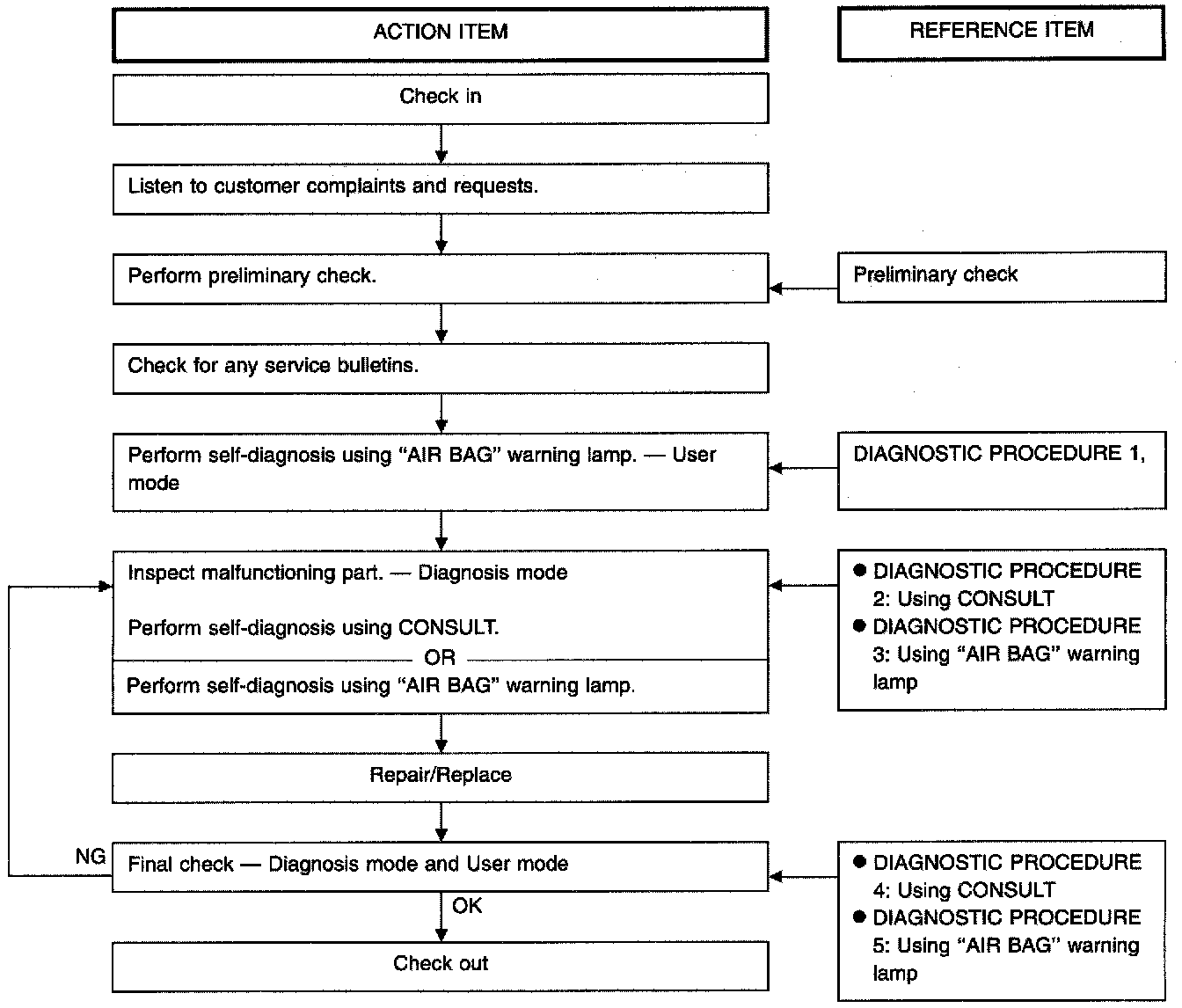

Work Flow:

Work Flow
