Installation

INSTALLATION

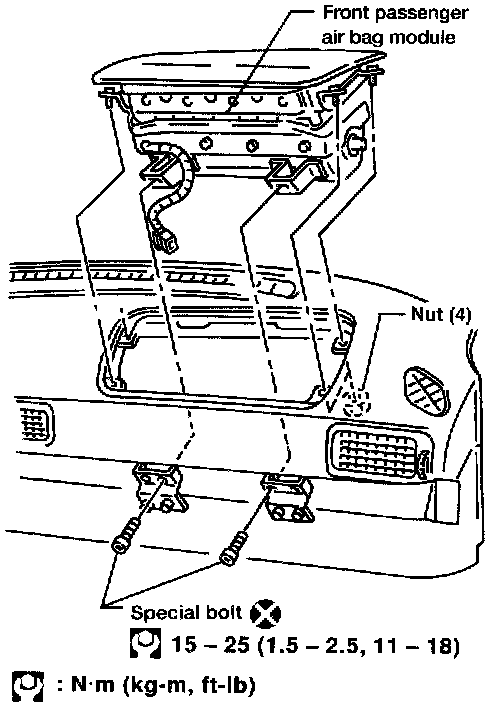

Front Passenger Air Bag Module - Installation:

1. Install front passenger air bag module in instrument panel.
- Ensure that the harness is not caught between air bag module and support bracket.
- Tighten four nuts.
- Install two new special bolts using TAMPER RESISTANT TORX (Size T50).

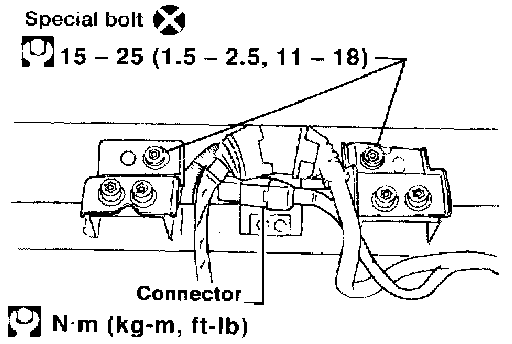

Front Passenger Air Bag Module - Installation:

2. Connect front passenger air bag module connector to air bag harness.
3. Install glove box and glove box lid.
