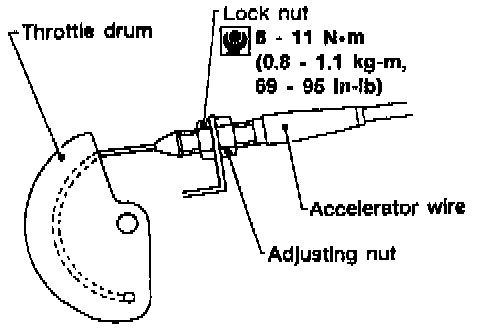

Throttle Cable/Linkage: Adjustments

CAUTION:
- Make sure the ASCD wire is not pulling the throttle drum.




1. Loosen lock nut, then tighten adjusting nut until throttle drum starts to move
2. From that position, turn back adjusting nut 1.5 to 2 turns, then tighten lock nut.
