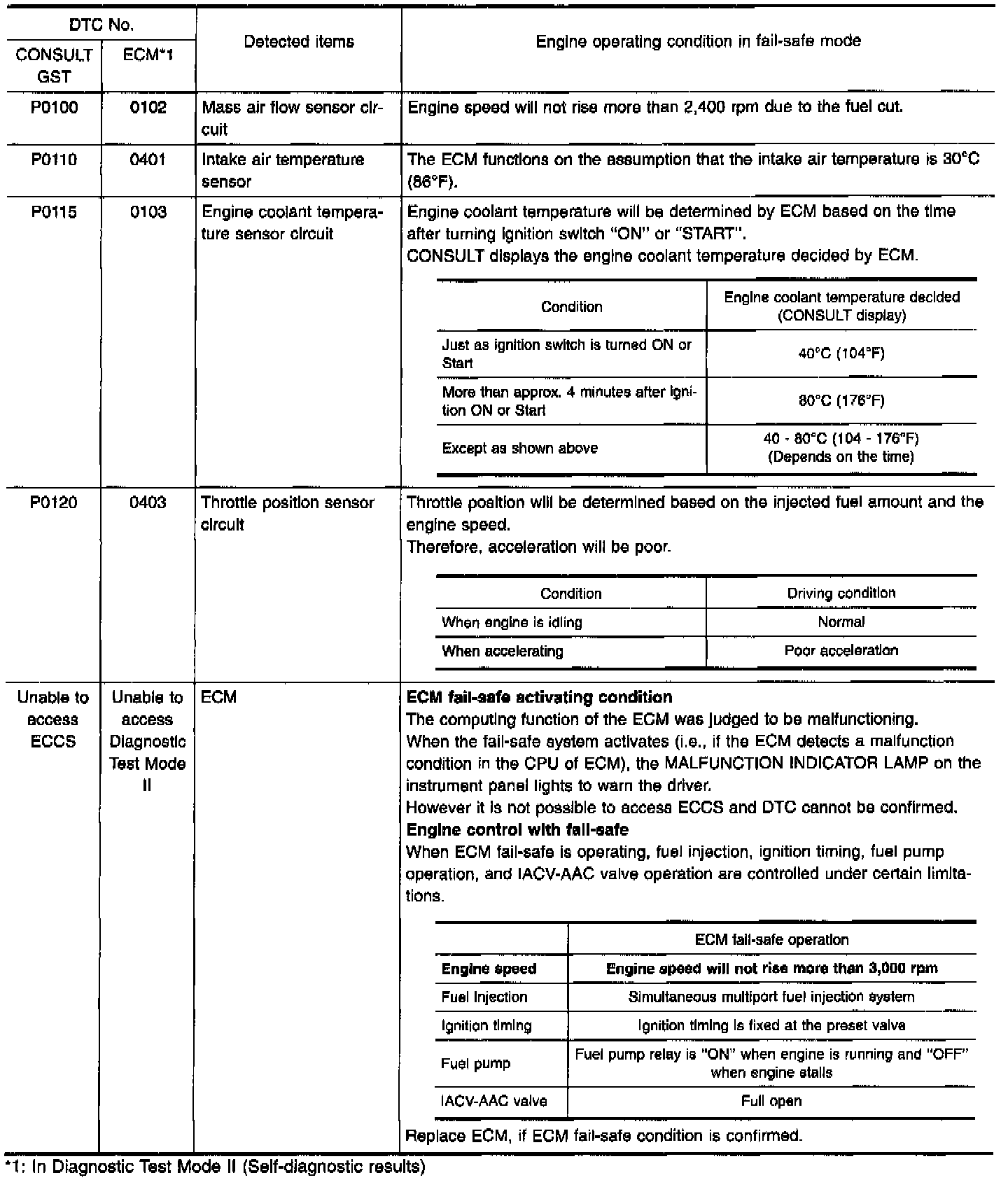

Fail Safe Chart
Fail Safe Chart
The ECM enters fail-safe mode if any of the following malfunctions is detected due to the open or short circuit. When the ECM enters the fail-safe mode, the
MIL
illuminates.
