System Introduction

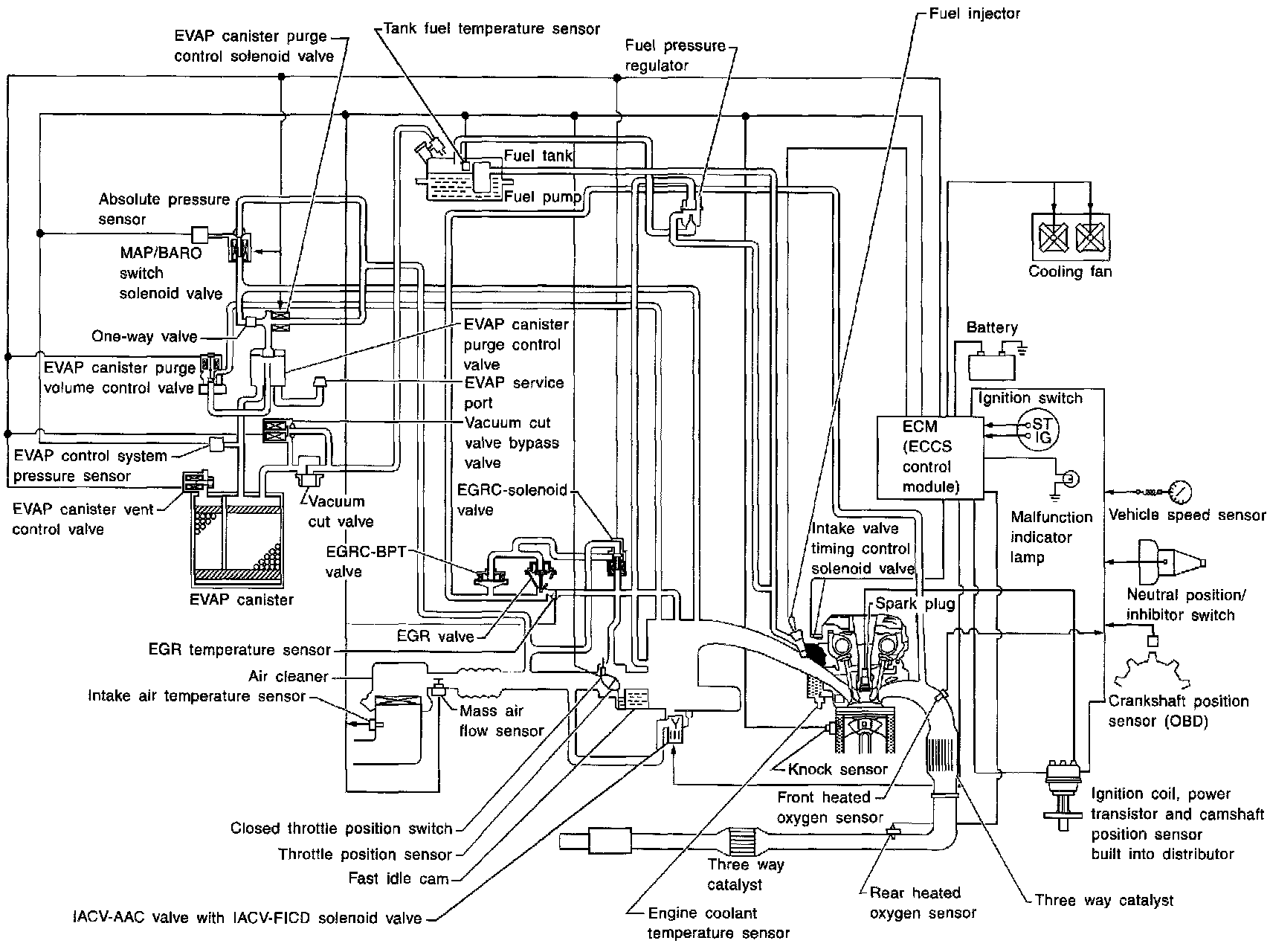

SYSTEM DIAGRAM

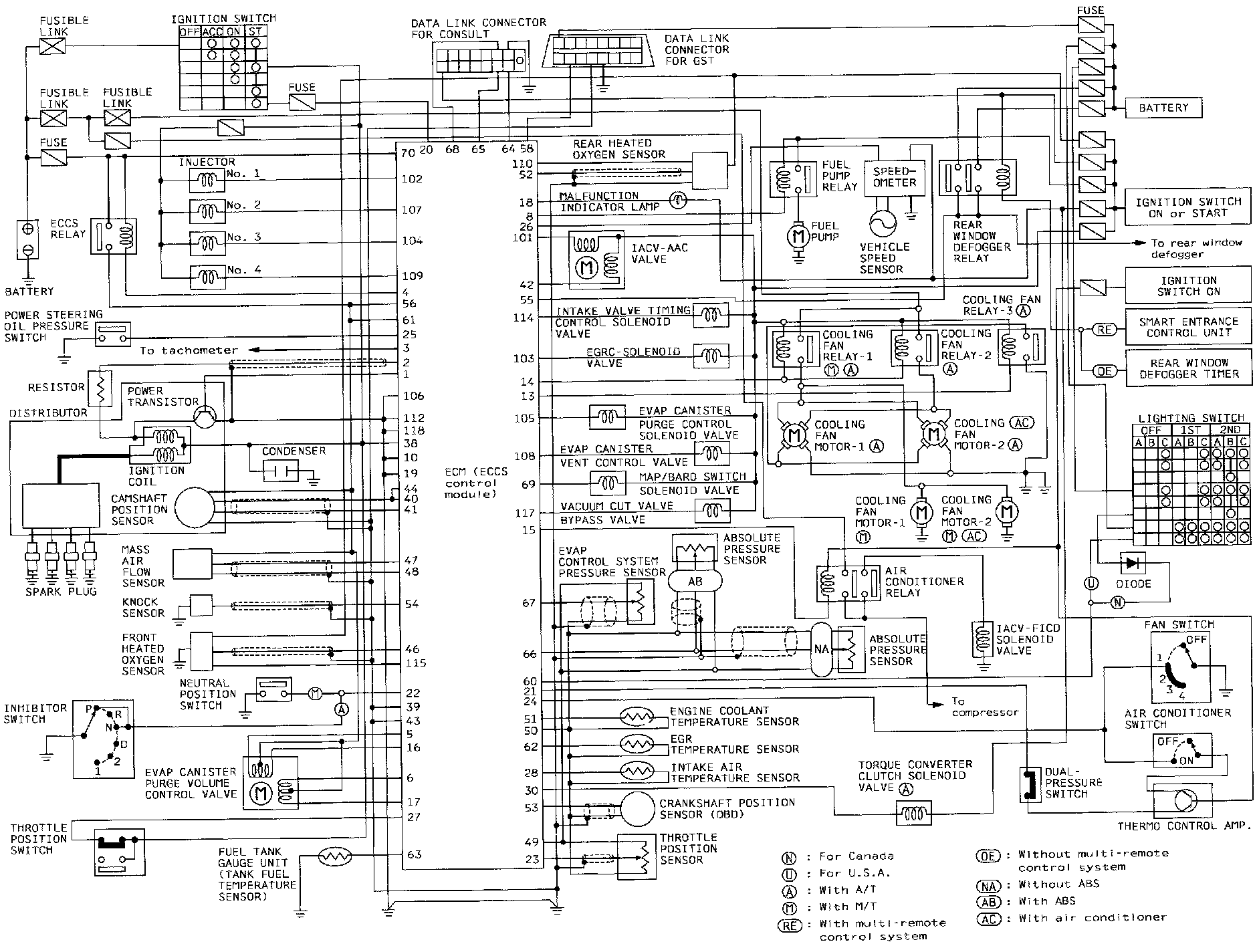

CIRCUIT DIAGRAM

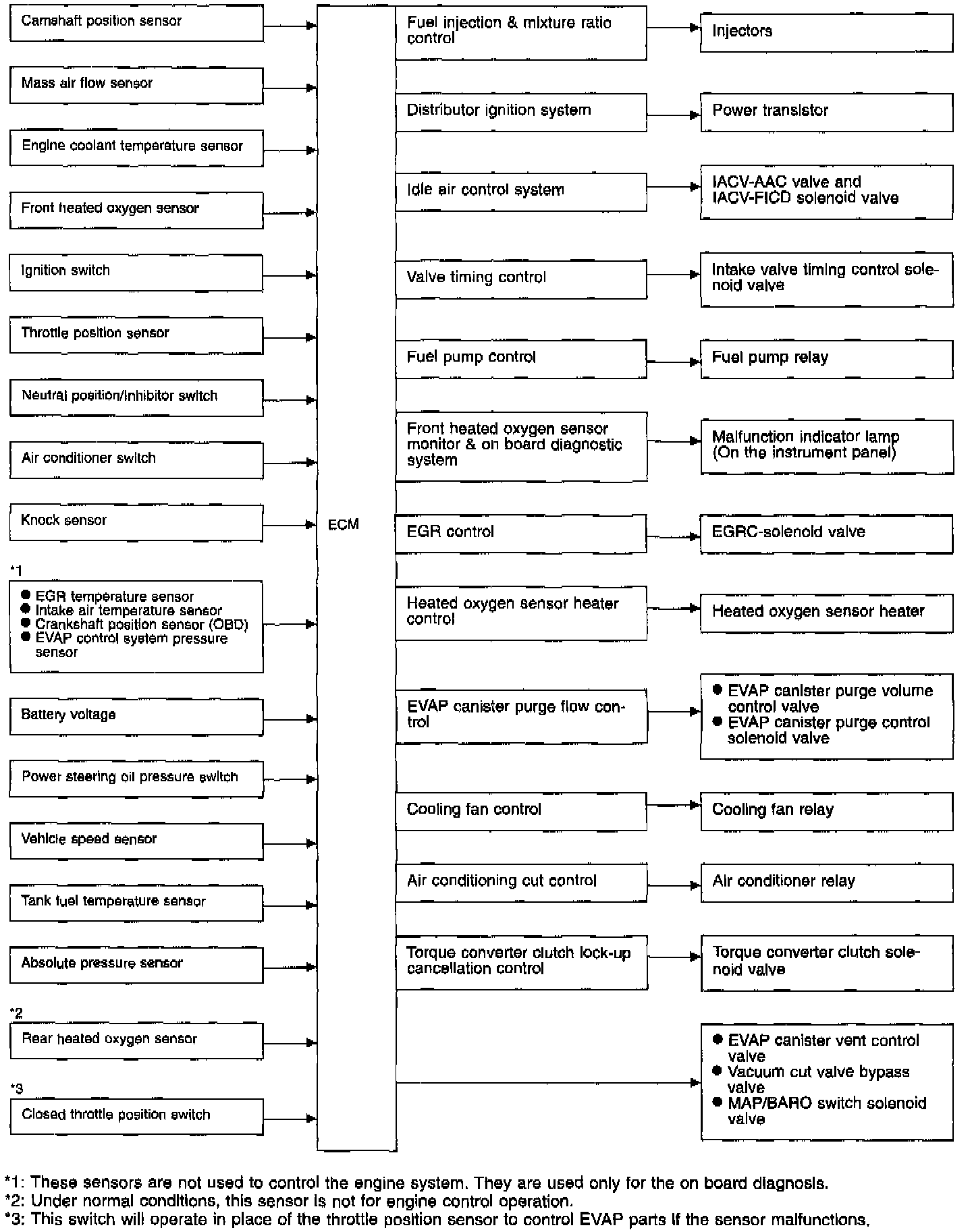

SYSTEM CHART

INTRODUCTION
The engine has an ECM to control major systems such as fuel control, ignition control, idle air control system, etc. The ECM accepts input signals from sensors and instantly drives actuators. It is essential that both input and output signals are proper and stable.
