Checking Fluid Level

1. Check fluid level with engine OFF.

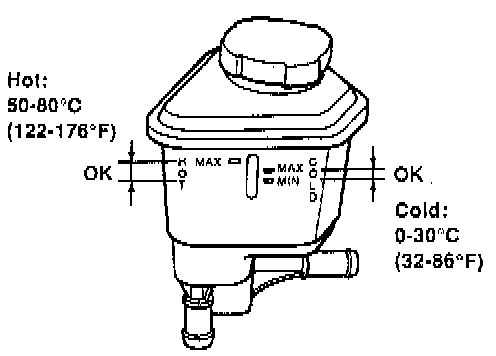

2. Check fluid level referring to the scale on reservoir tank.
3. Use HOT range for fluid temperatures of 50 - 80° C (122 - 176° F).
4. Use COLD range for fluid temperatures of 0 - 30° C (32 - 86° F).

CAUTION:
^ Do not overfill.
^ Recommended fluid is Automatic Transmission Fluid (ATF) type Dexron III, or equivalent.
