Fluid - M/T: Service and Repair

Checking M/T Oil Level





Note: Never start engine while checking oil level.

1. Check for oil leaks.

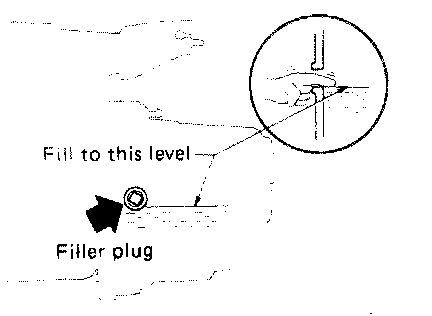

2. Check oil level.

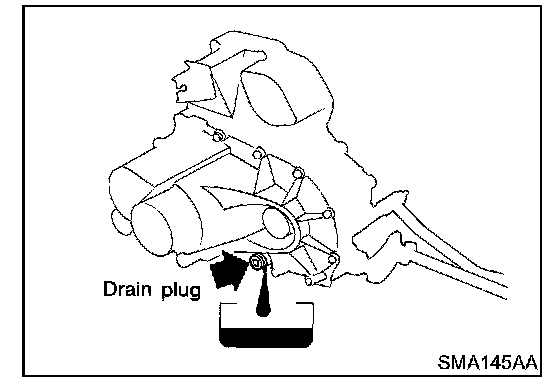

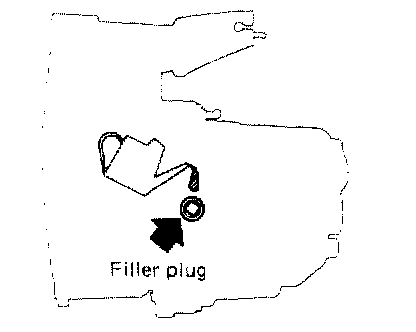

Changing M/T Oil









Oil Capacity:
RN4F31A
2.7 liters (5-3/4 US Pt, 4-3/4 Imp pt)
RS5F31A
2.8 liters (5-7/8 US pt, 4-7/8 Imp pt)
