Component Tests and General Diagnostics

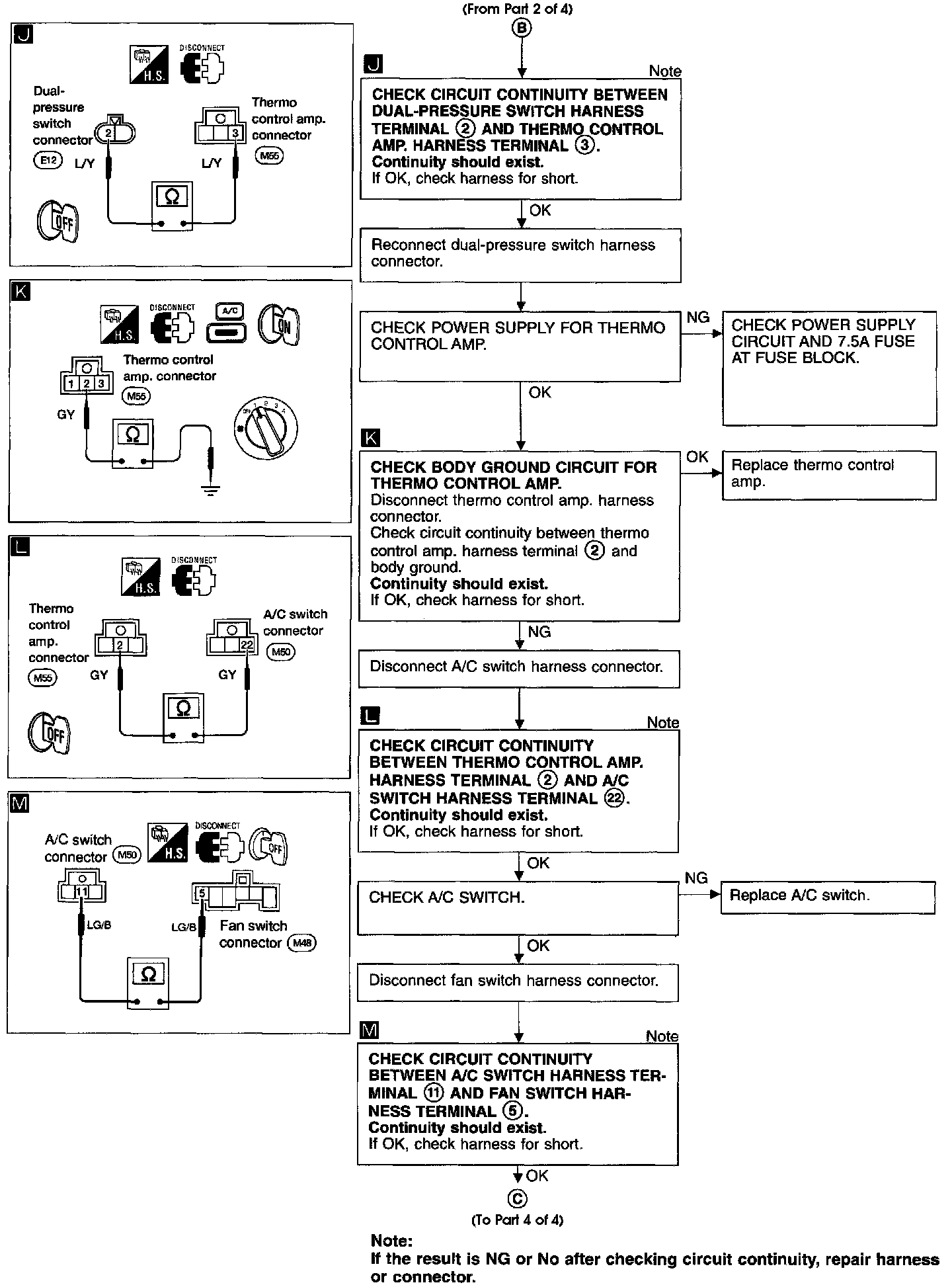

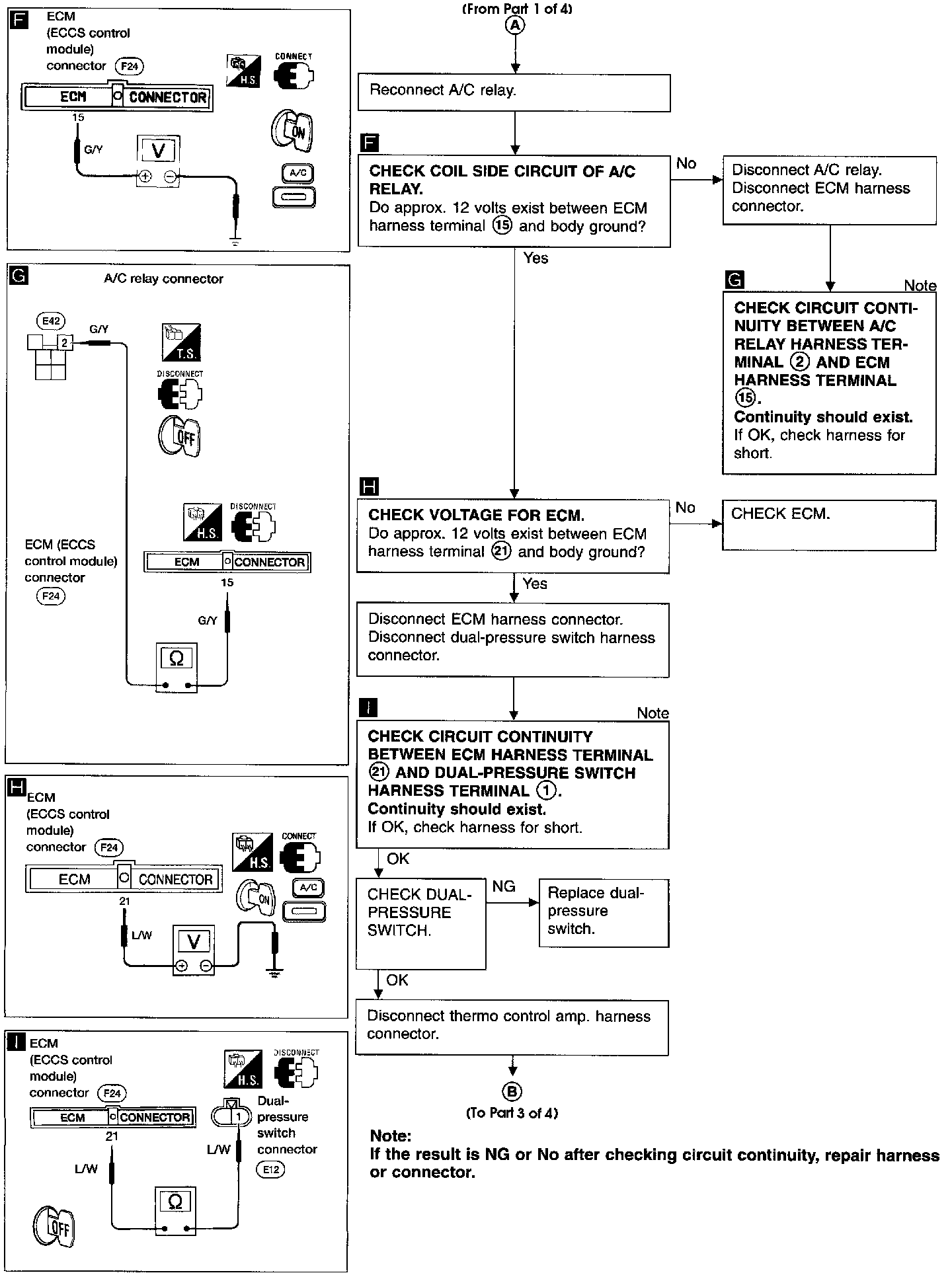

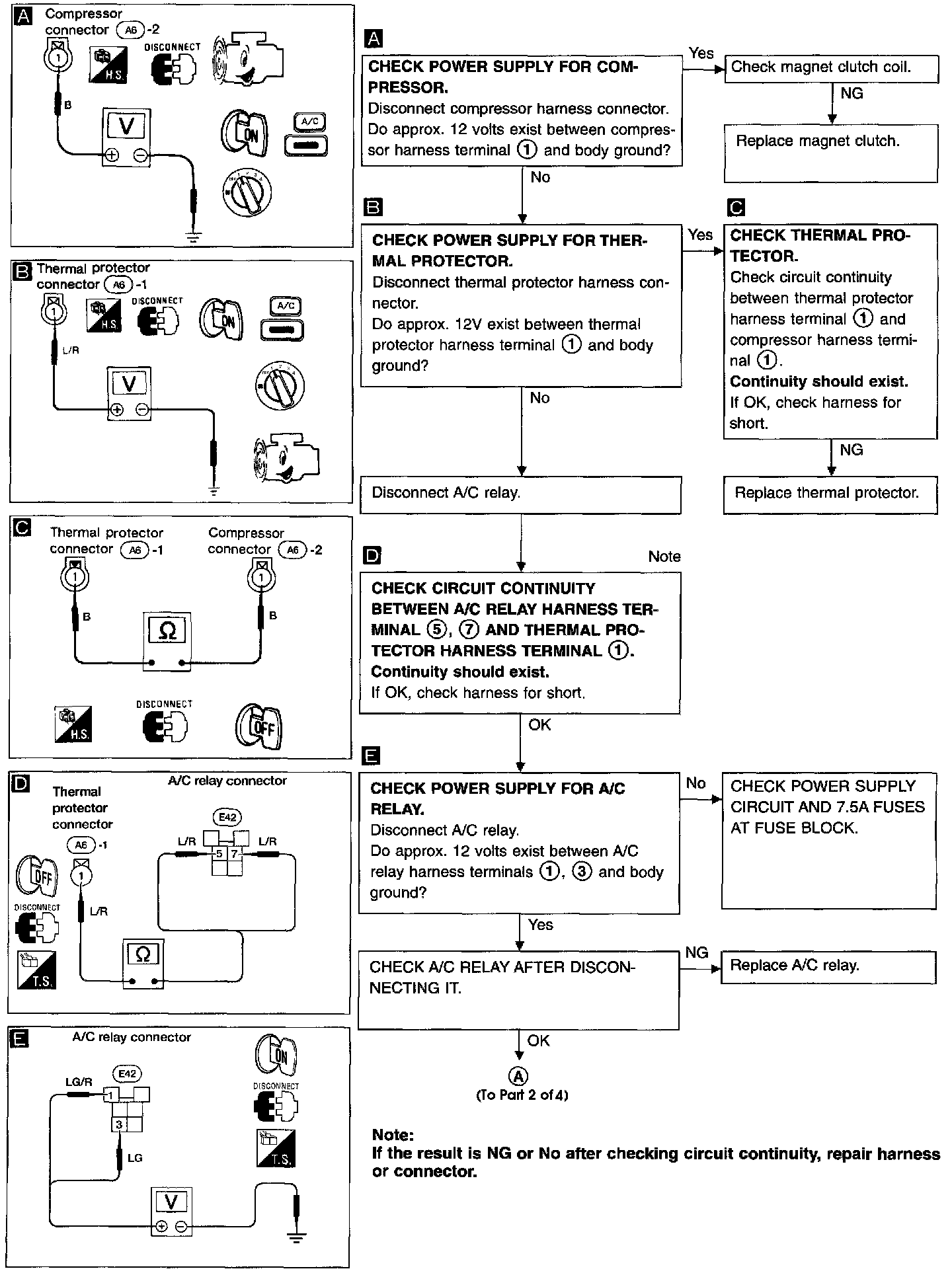

INSPECTION FLOW




CHECK FOR MAGNET CLUTCH













SYMPTOM: Magnet clutch does not engage when A/C switch and fan switch are ON.
