Leak Detection Sensor, Evaporative System

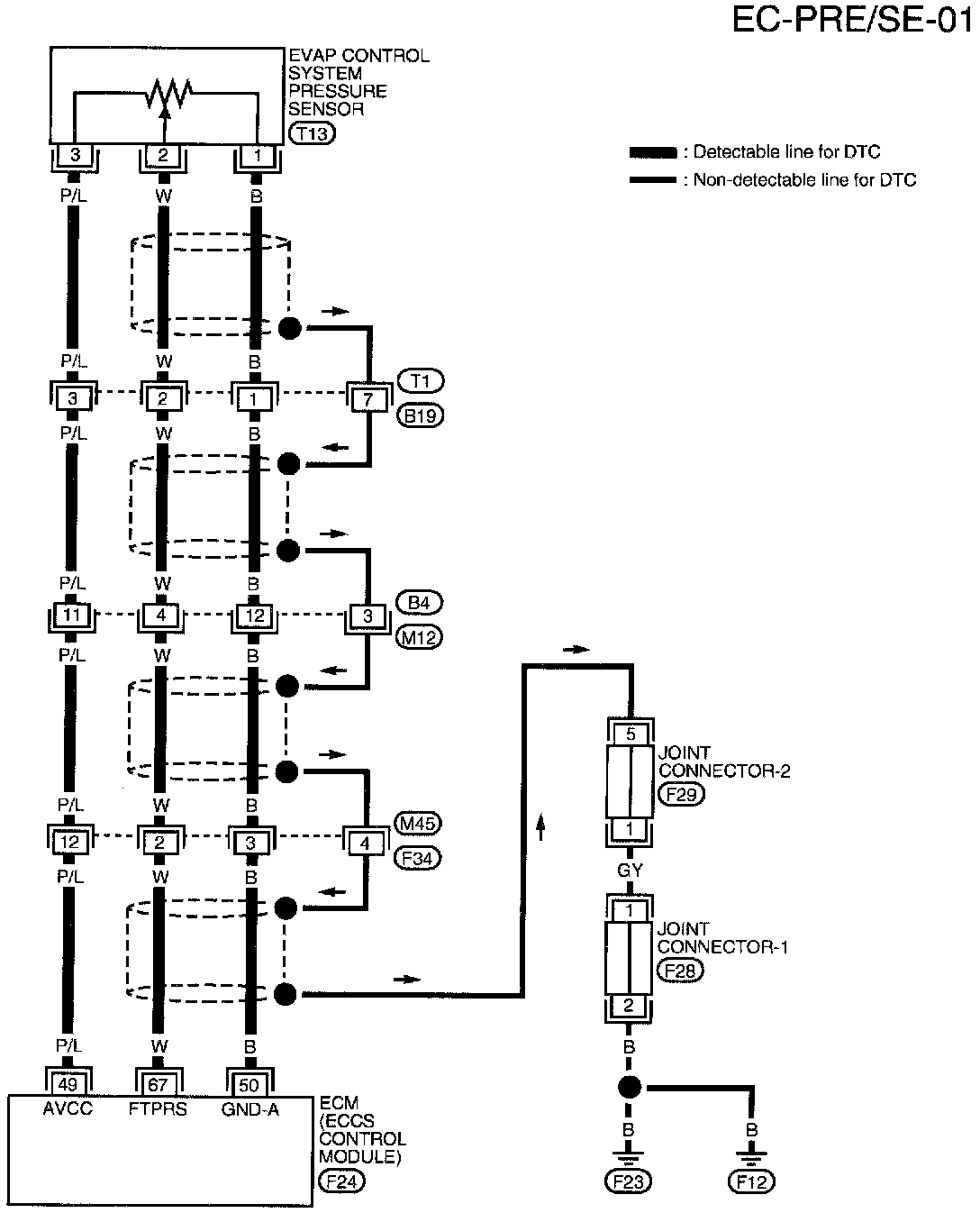

Circuit Diagrams




Circuit Connectors




F28, F29 Terminal Arrangement
