Main Relay (Computer/Fuel System)

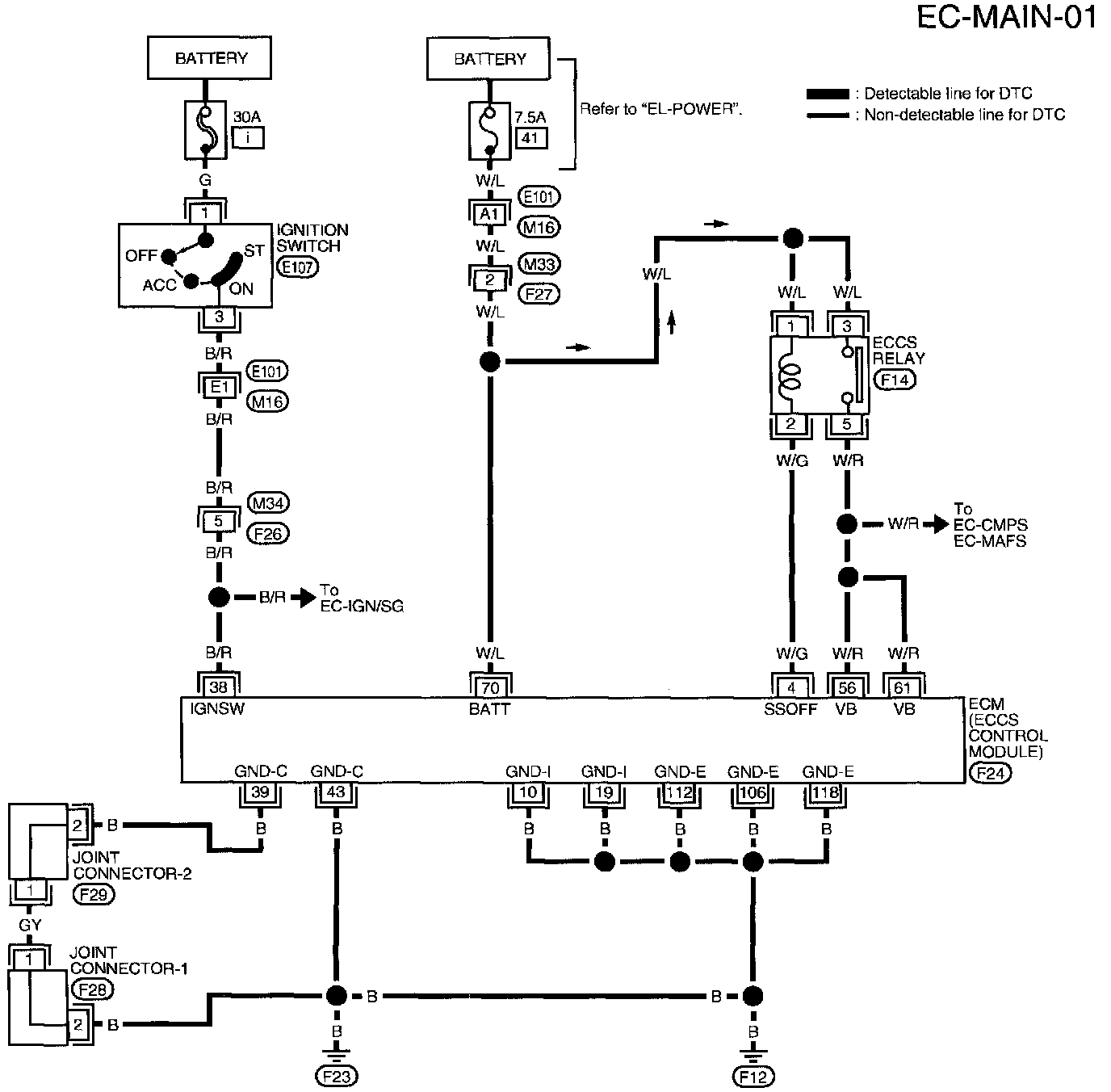

Circuit Diagrams




Circuit Connectors




M16, E101 Main Harness and Engine Room Harness Terminal Arrangement




F28, F29 Terminal Arrangement
