ABS Main Relay: Locations

Anti-Lock Brake System components

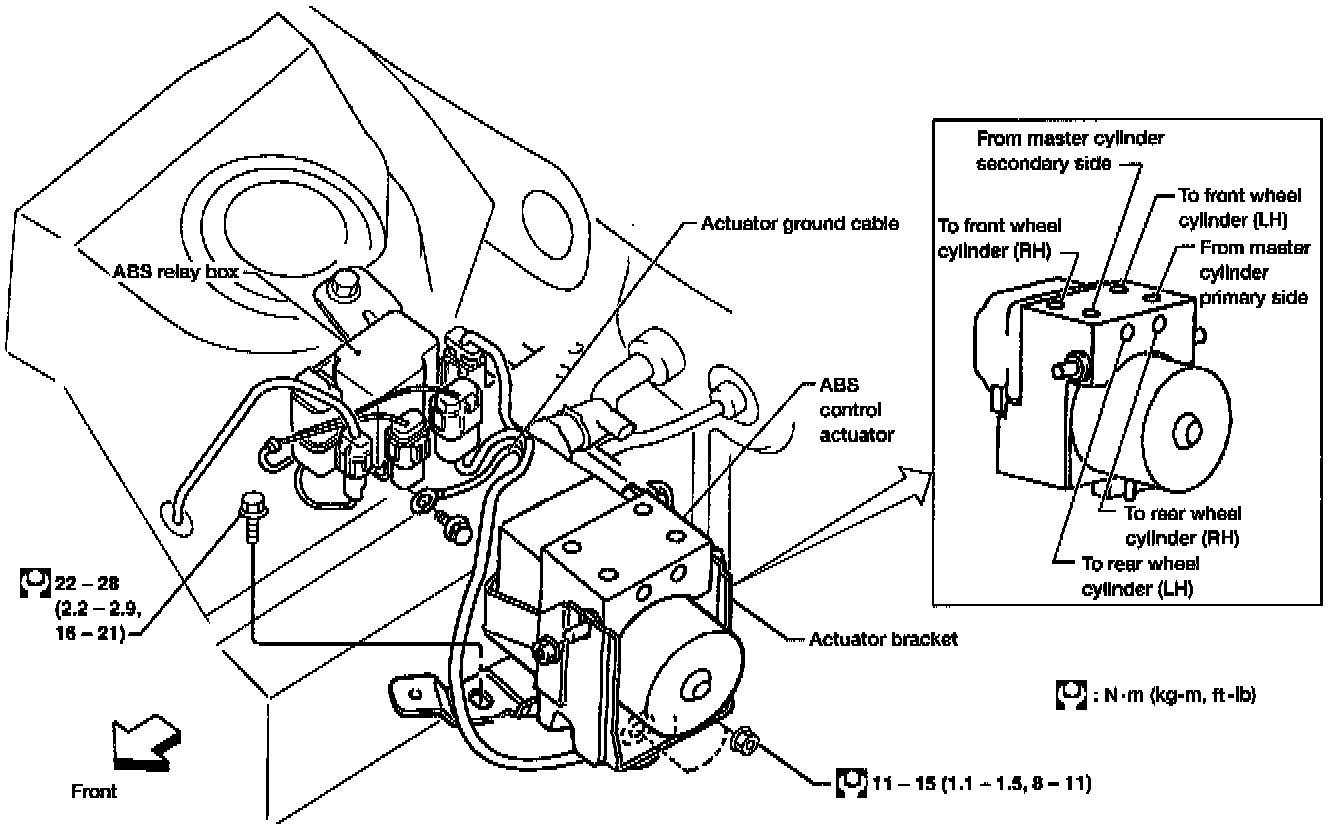

Component Parts and Harness Connector Location





ABS Relay Box
