2-Door Coupe

2 - Door Coupe

CAUTION:
- Do not disassemble buckle or seat belt assembly.
- Replace anchor bolts if they are deformed or worn out.
- Never oil tongue and buckle.
- If any component of seat belt assembly is questionable, do not repair. Replace the seat belt assembly.
- If webbing is cut, frayed, or damaged, replace seat belt assembly.
- When replacing seat belt assembly, use a genuine NISSAN seat belt assembly.
- After any collision, inspect all seat belt assemblies, including retractors and other attached hardware.

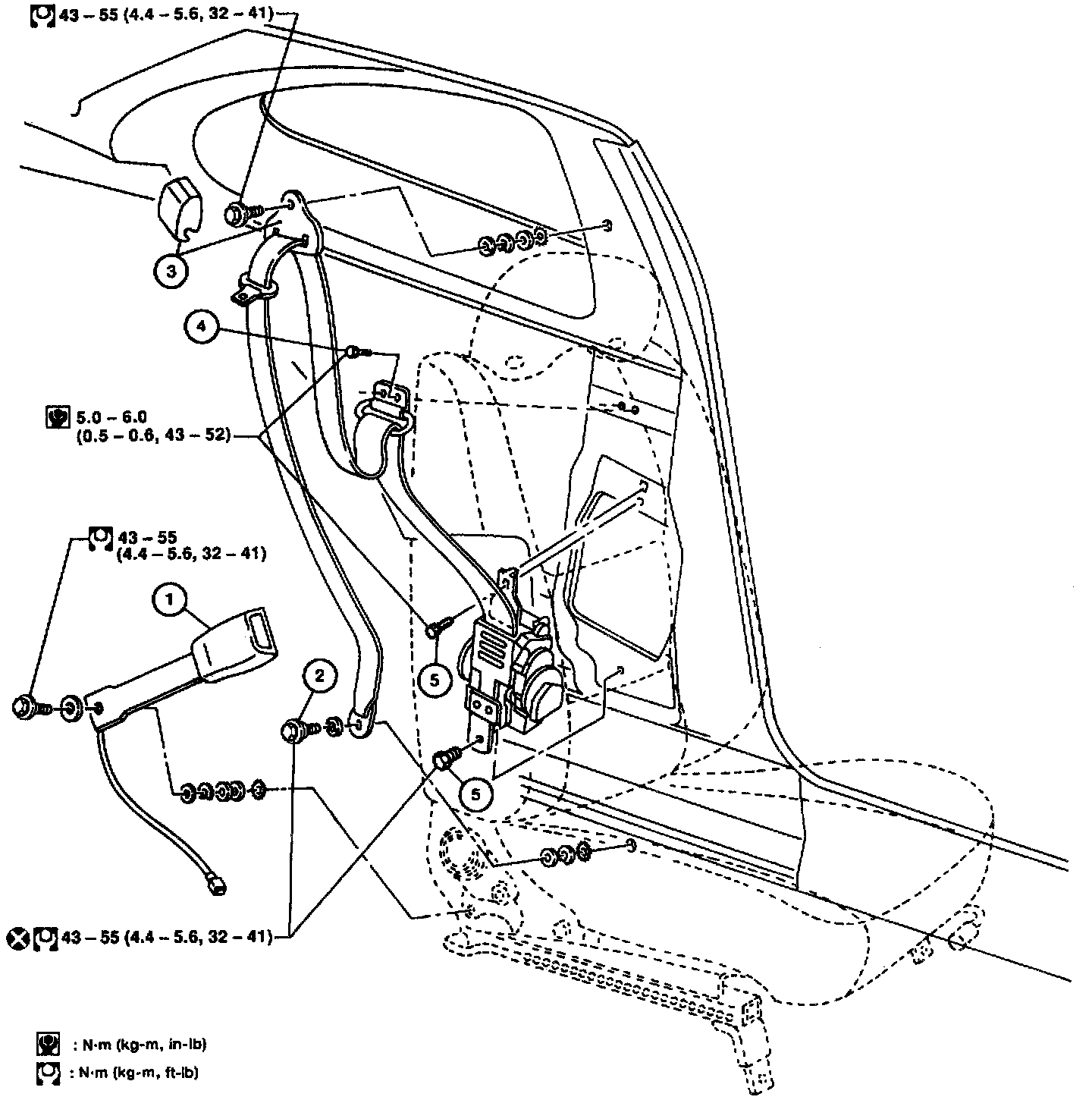

Removal
Remove front seat.

2-Door Coupe:

1. Remove buckle.
2. Remove floor anchor bolt.
Remove rear side finisher.
3. Remove pillar anchor cover and anchor bolt.
4. Remove guide plate bolts.
5. Remove retractor bolts.
Remove retractor.
