Collision Diagnosis

To repair the SRS, perform the following steps.

When SRS Is Activated In A Collision
1. Replace the diagnosis sensor unit.
2. Remove the air bag modules.

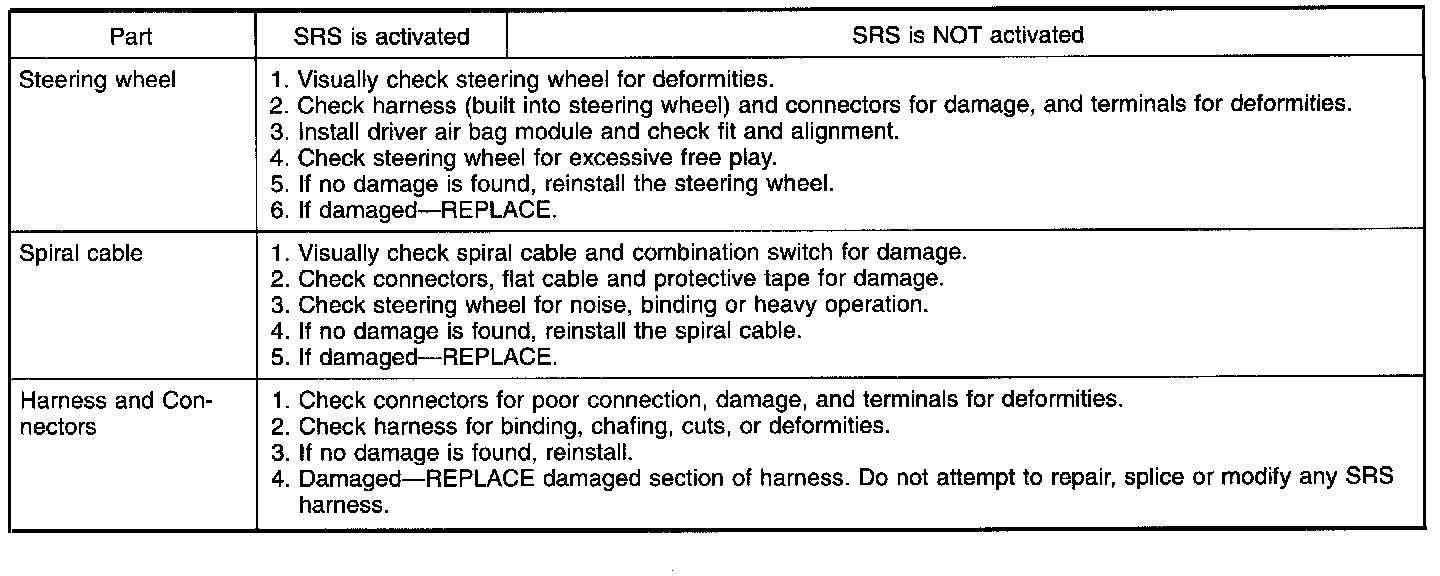

SRS Inspection (Part 1 Of 2):

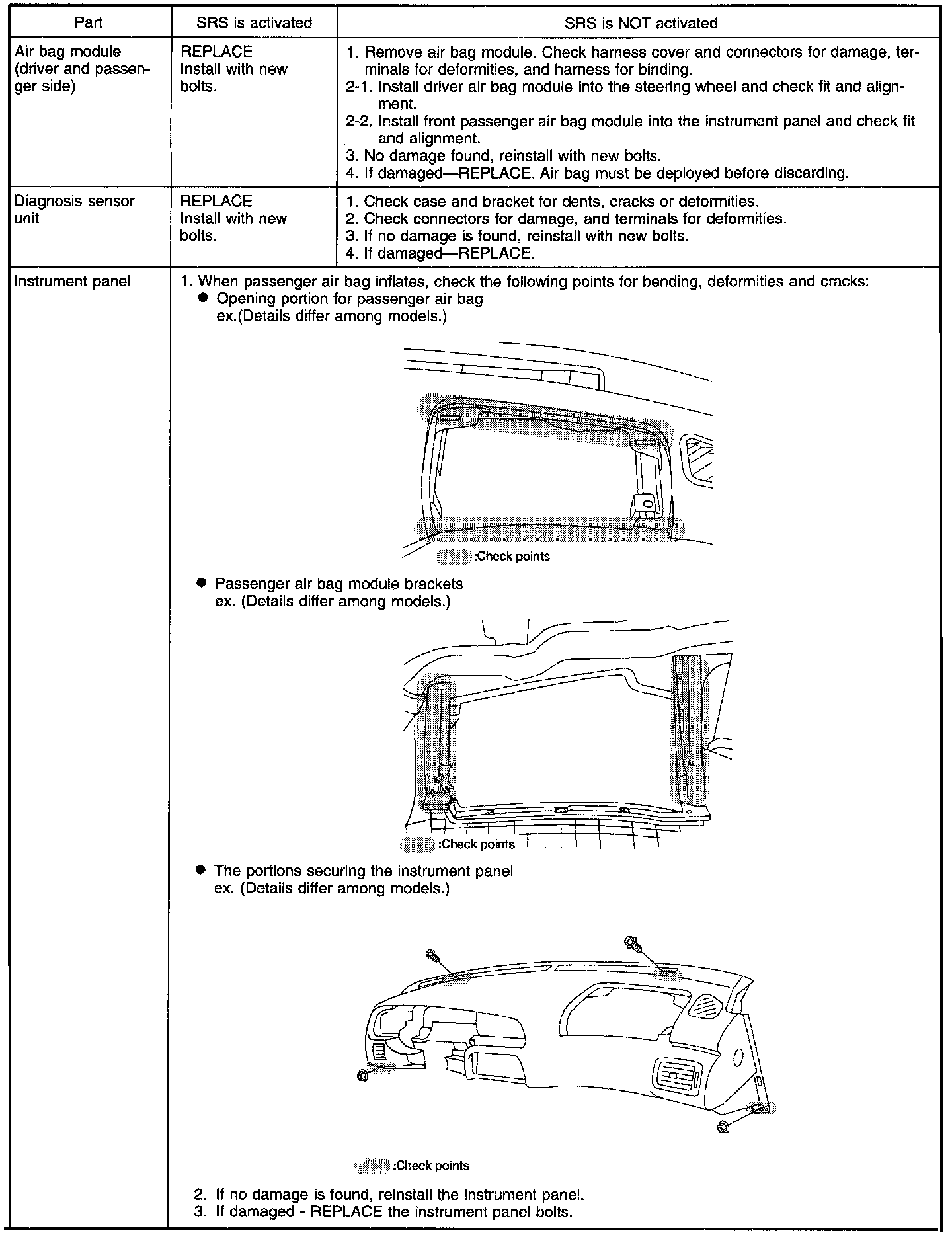

SRS Inspection (Part 2 Of 2):

SRS Inspection

3. Check the SRS components using the table(s) shown.
Replace any SRS components showing visible signs of damage (dents, cracks, deformation).
4. Install new air bag modules.
5. Conduct self-diagnosis. Refer to "SRS Operation Check". Ensure the remainder of the SRS is operating properly. Clearing Trouble Codes

When SRS Is Not Activated In A Collision
1. Check the SRS components. Refer to "SRS inspection".
Replace any SRS components showing visible signs of damage (dents, cracks, deformation).
2. Conduct self-diagnosis using CONSULT and "AIR BAG" warning lamp. Refer to "SRS Operation Check". Ensure entire SRS operates properly.
