Fuel Gauge Sender: Testing and Inspection

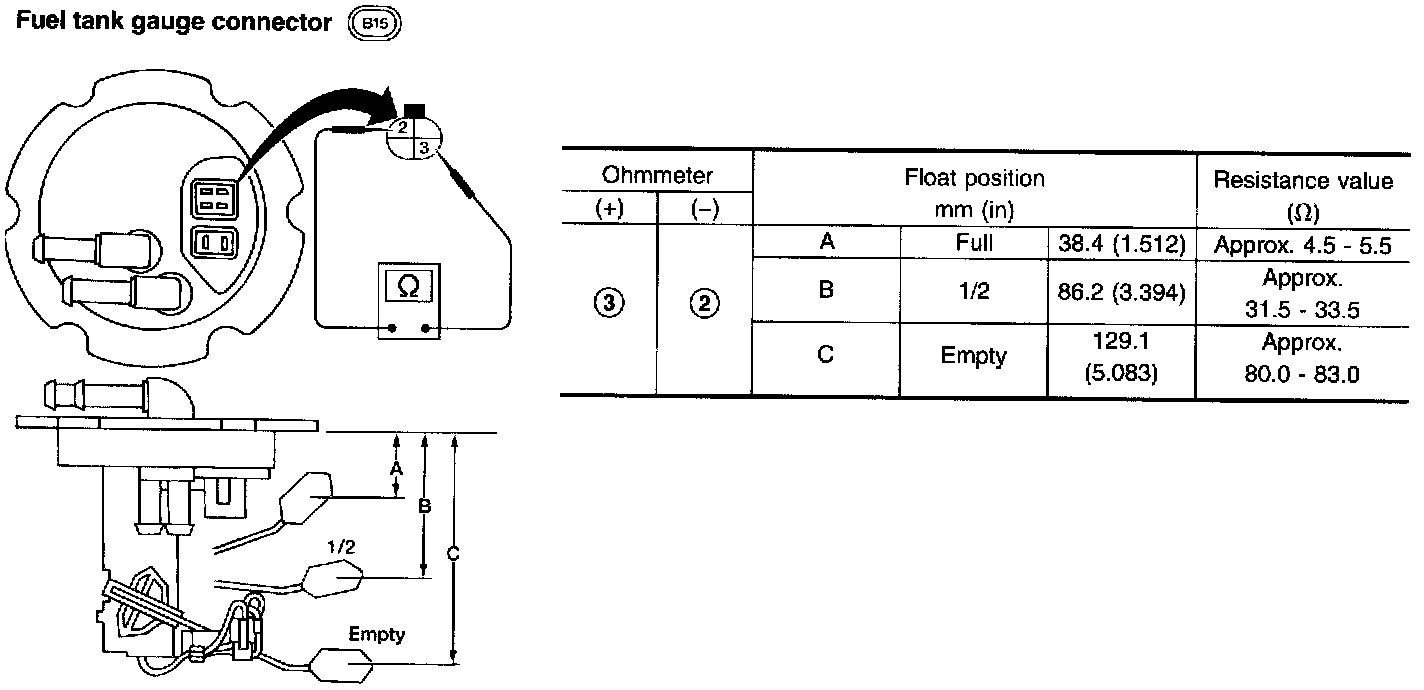

With Tachometer


Check the resistance between terminals (3) and (2).

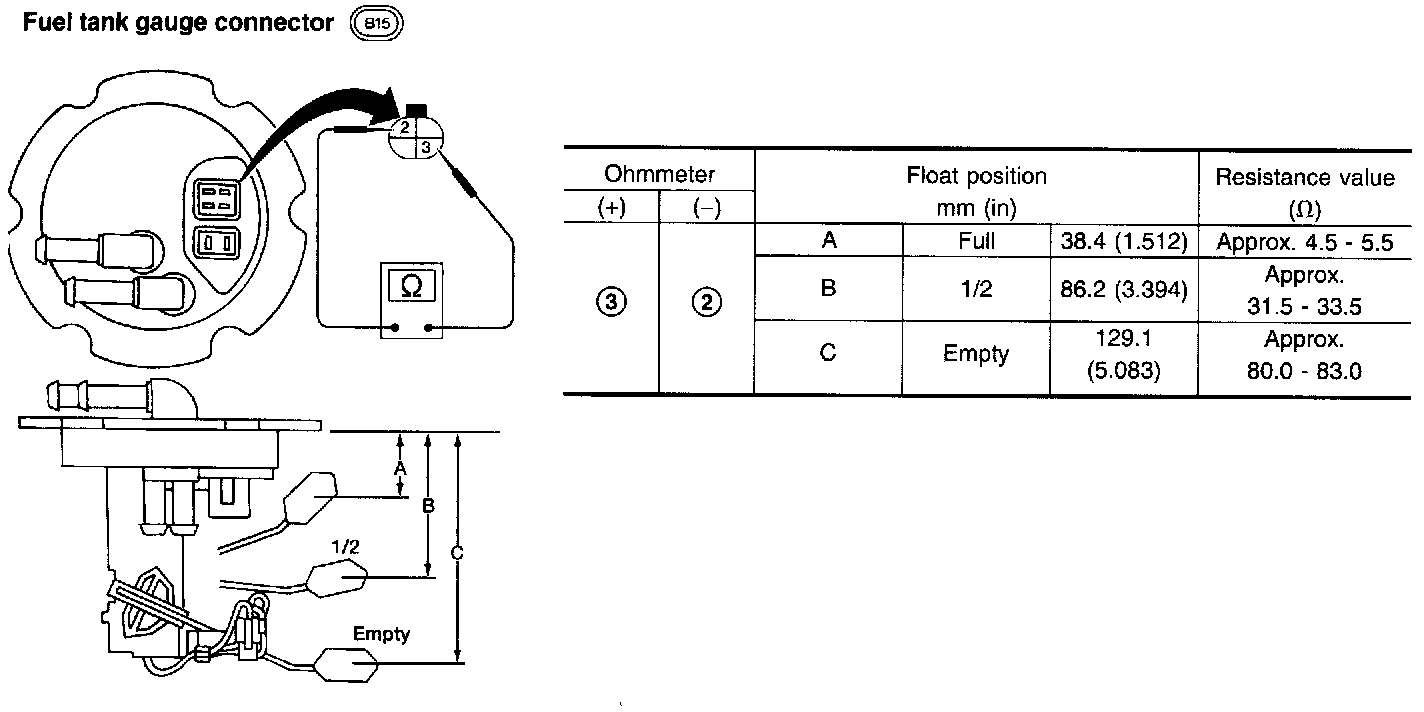

Without Tachometer

Check the resistance between terminals (3) and (2).
