Meters and Gauges (With Tachometer)

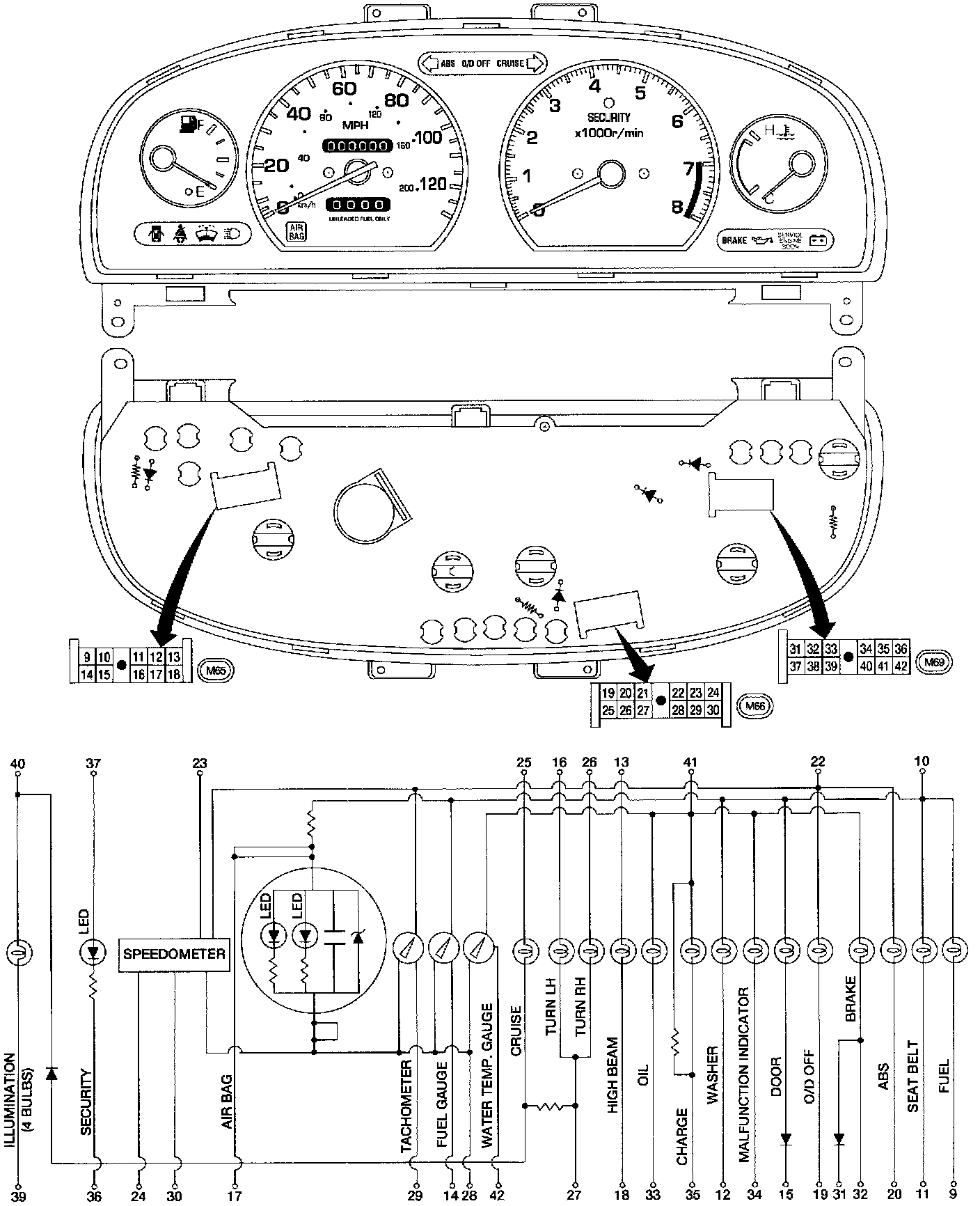

Combination Meter

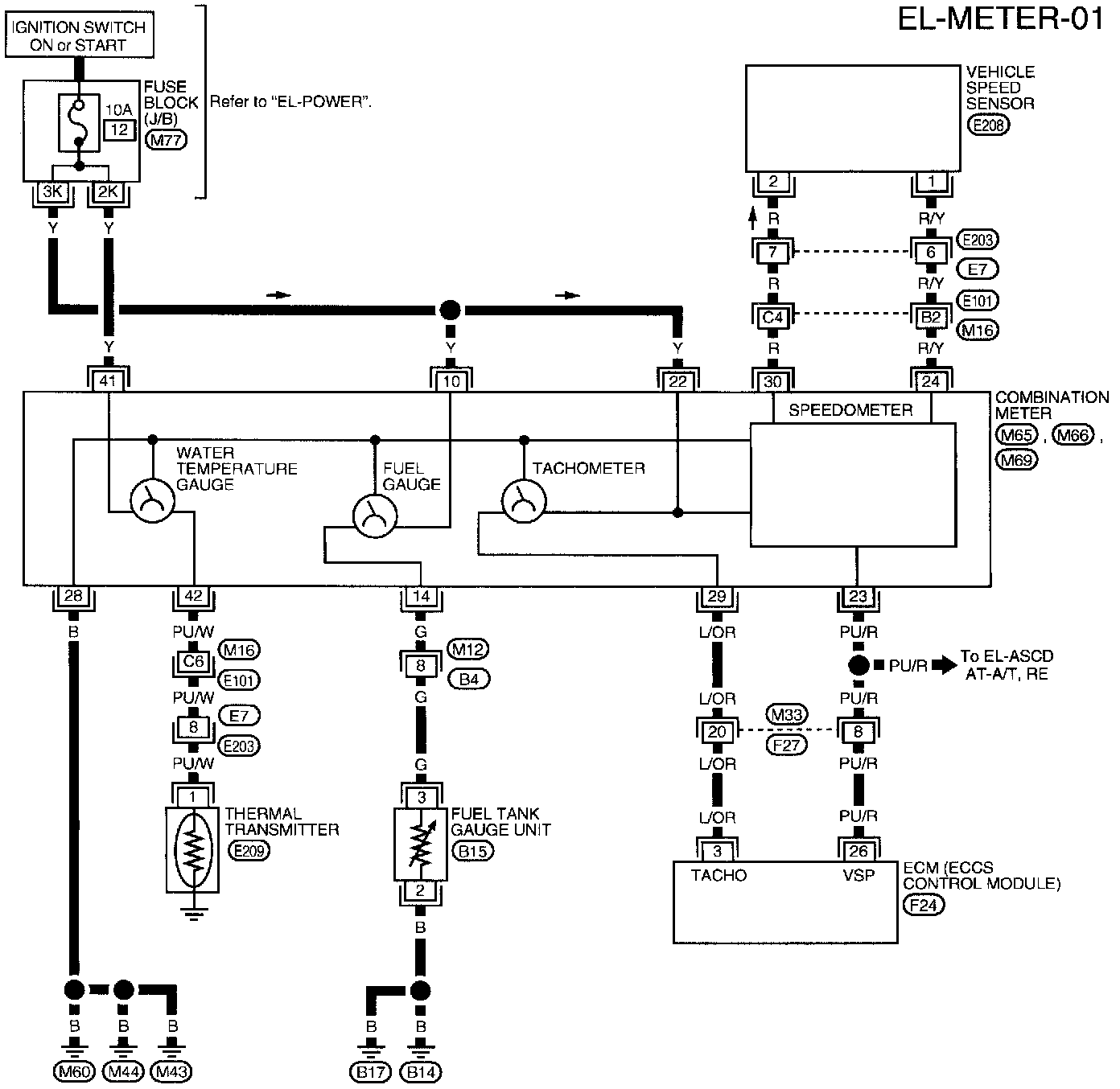

Circuit Diagrams





Circuit Connectors





M16, E101 Main Harness and Engine Room Harness Terminal Arrangement





F24 ECM (ECCS Control Module)
