Symptom Related Diagnostic Procedures

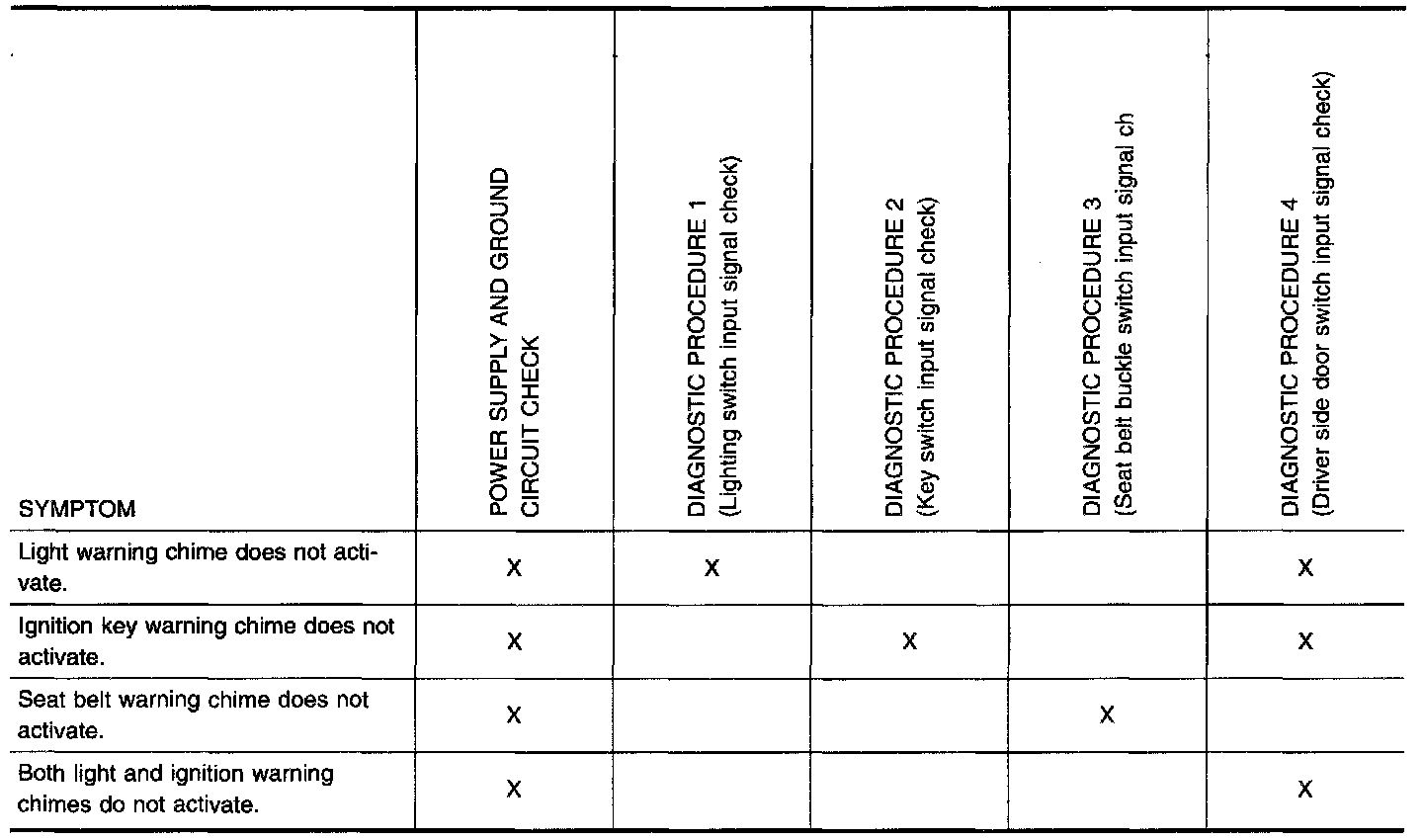

Symptom Chart

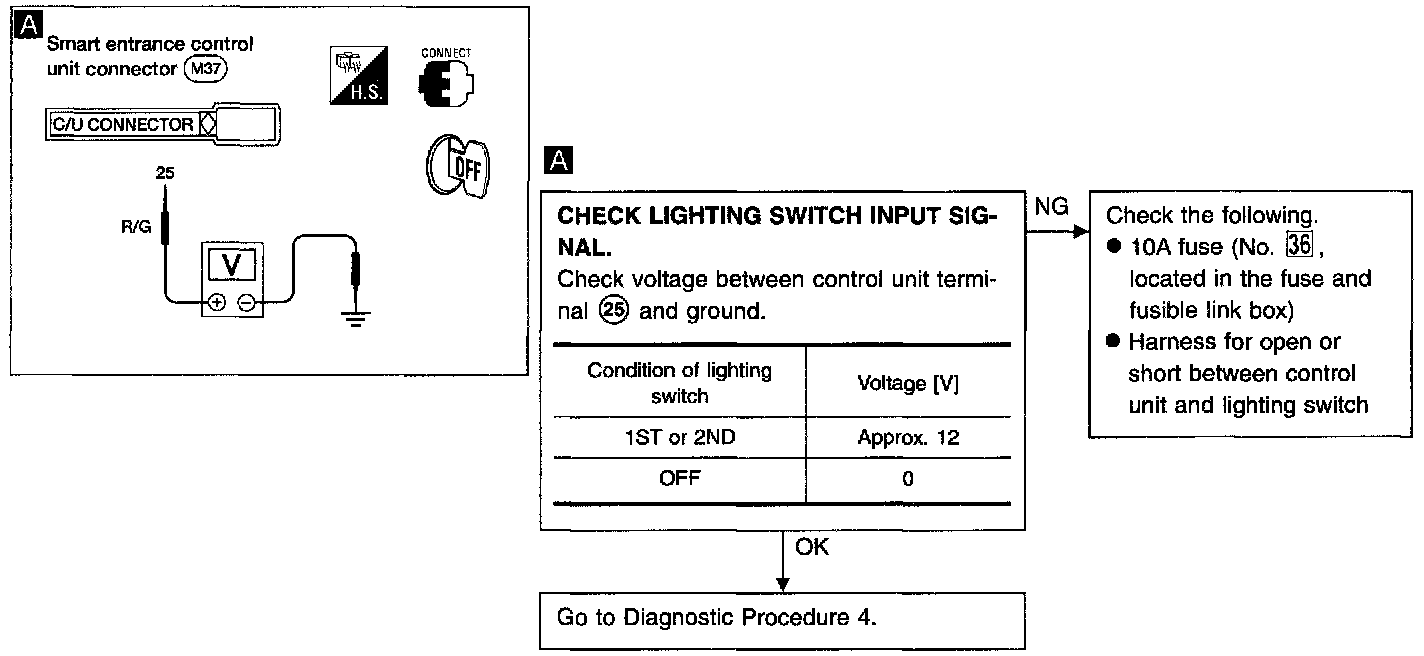

Diagnostic Procedure 1 (Lighting Switch Input Signal Check)
With Power Door Locks

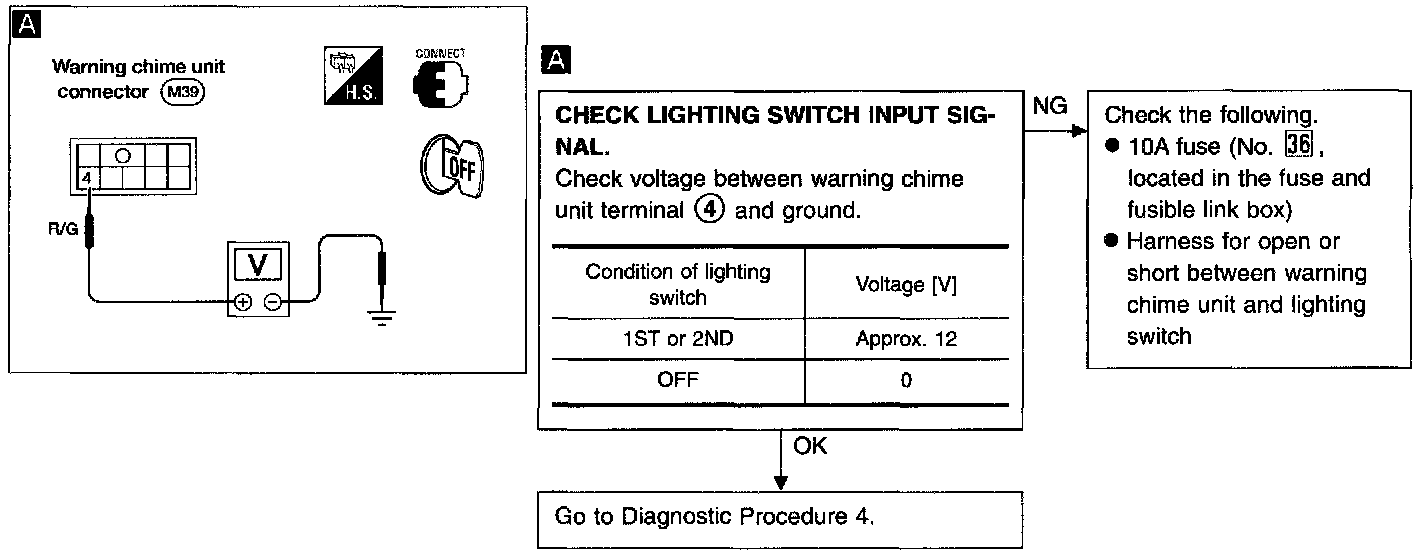

Without Power Door Locks
Diagnostic Procedure 2 (Key Switch Input Signal Check)

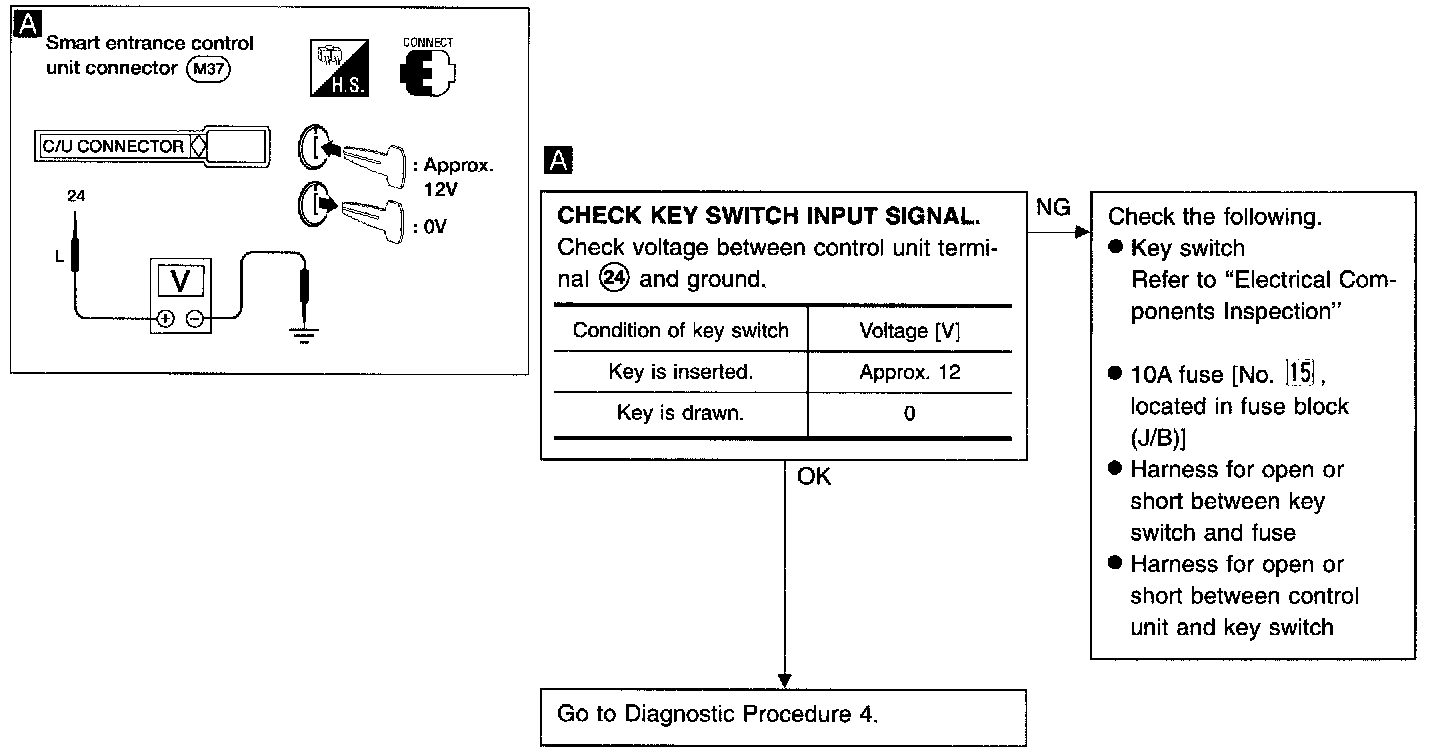

With Power Door Locks

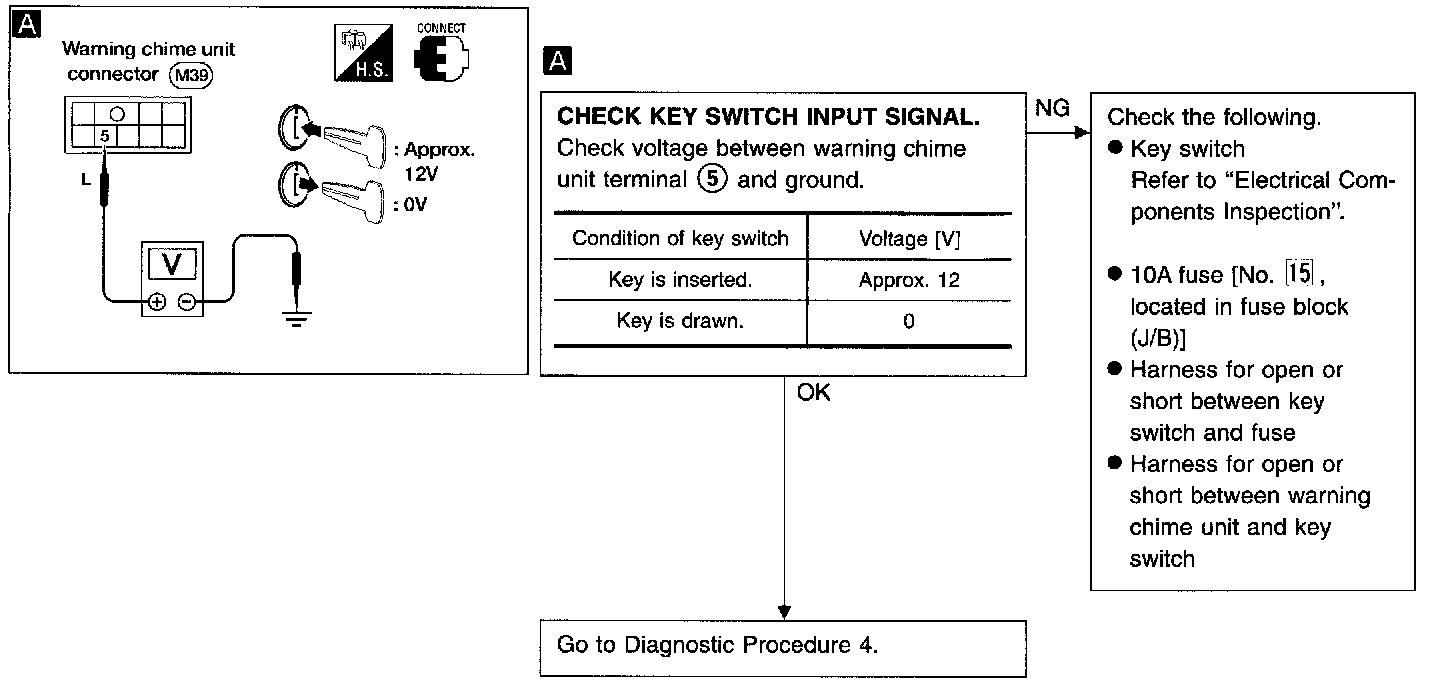

Without Power Door Locks
Diagnostic Procedure 3 (Seat Belt Buckle Switch Input Signal Check)

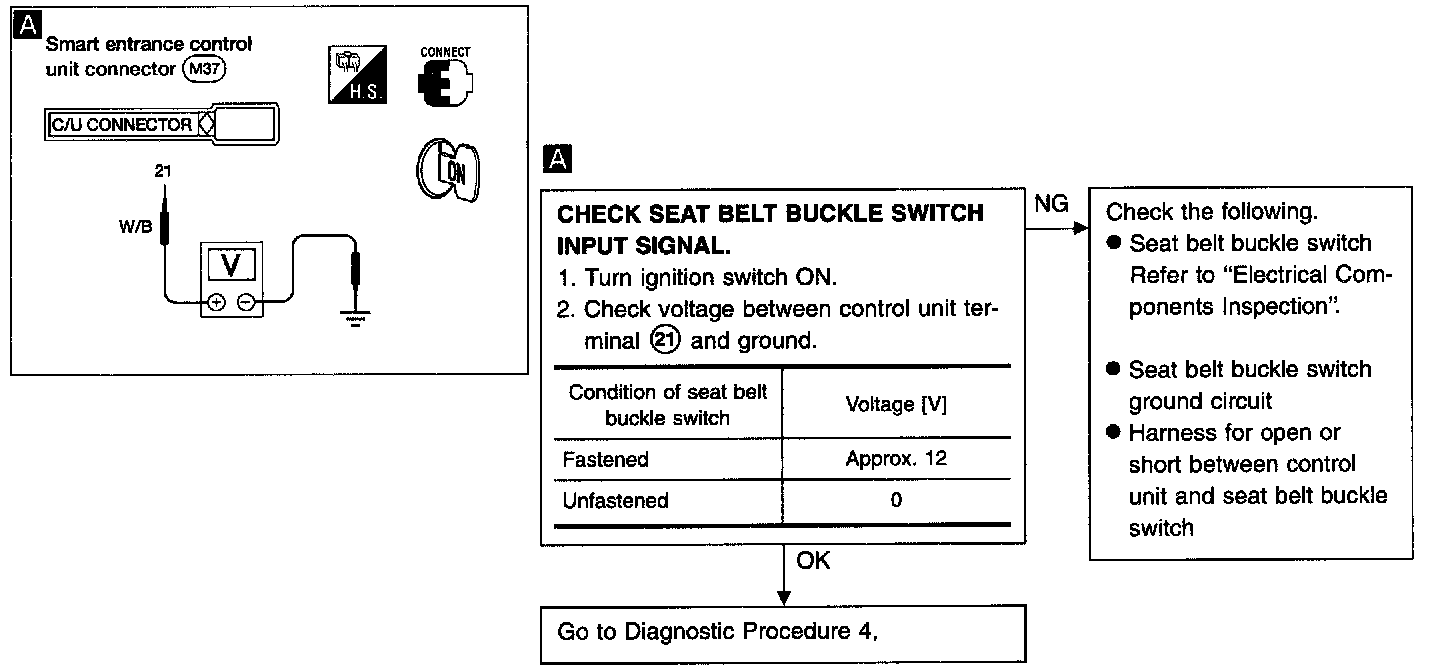

With Power Door Locks

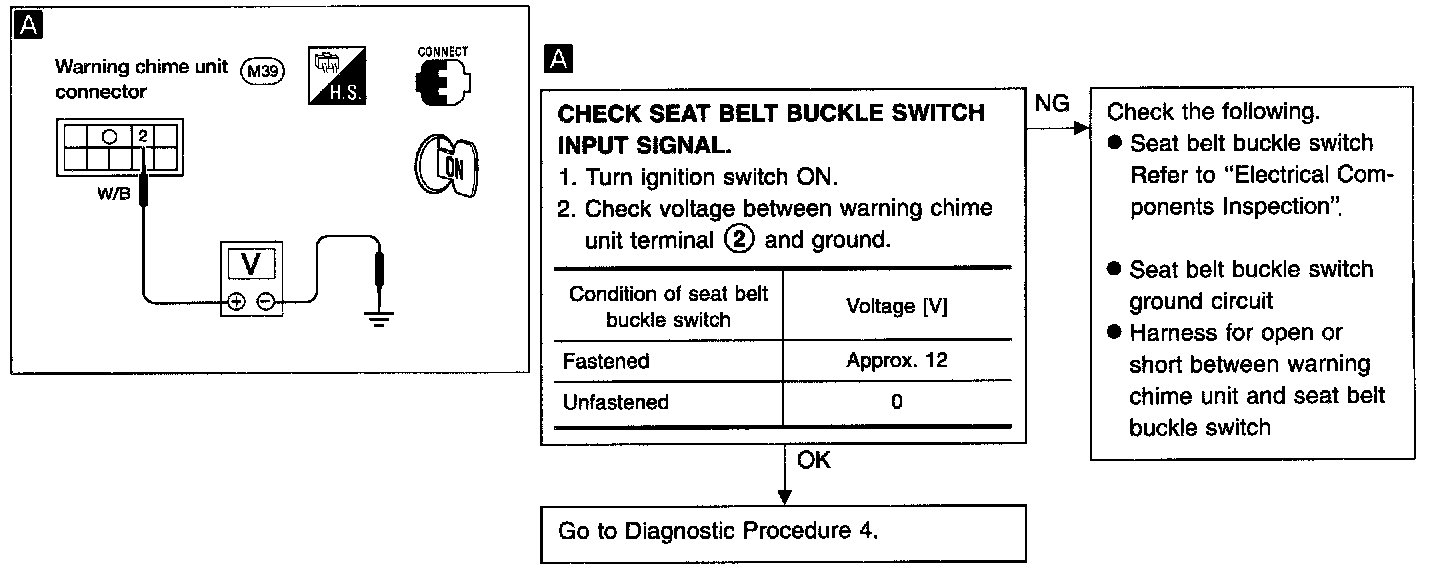

Without Power Door Locks
Diagnostic Procedure 4 (Driver Side Door Switch Input Signal Check)

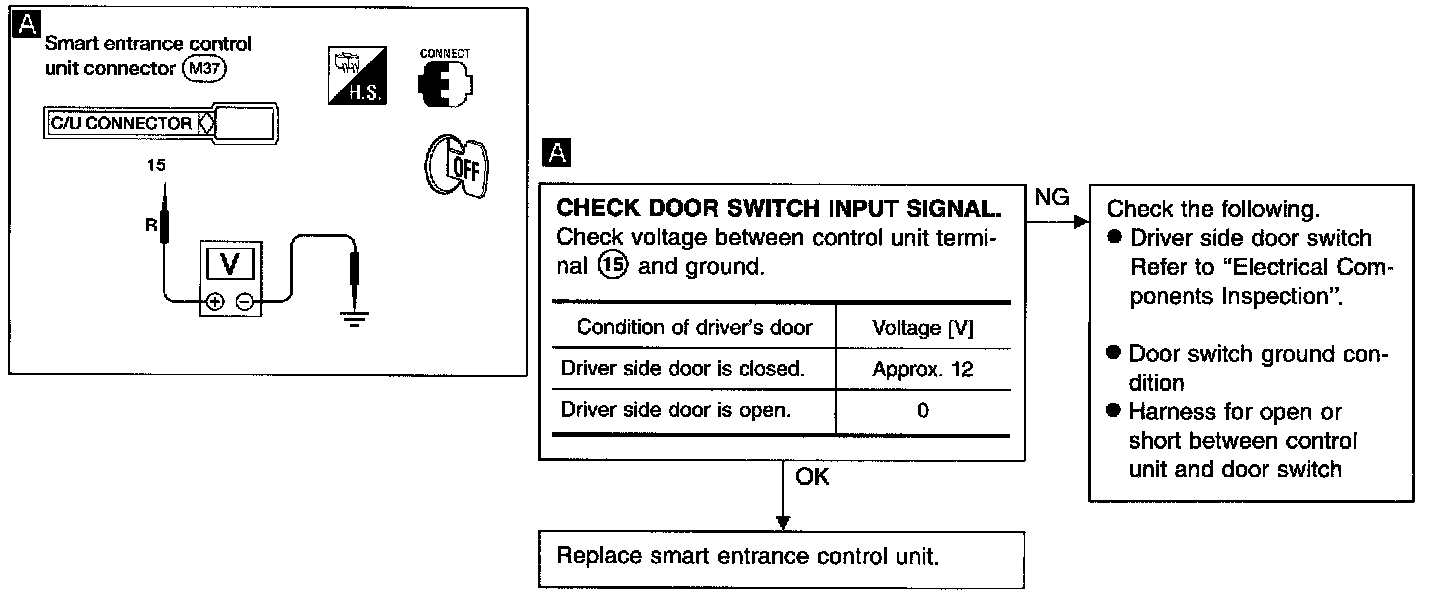

With Power Door Locks

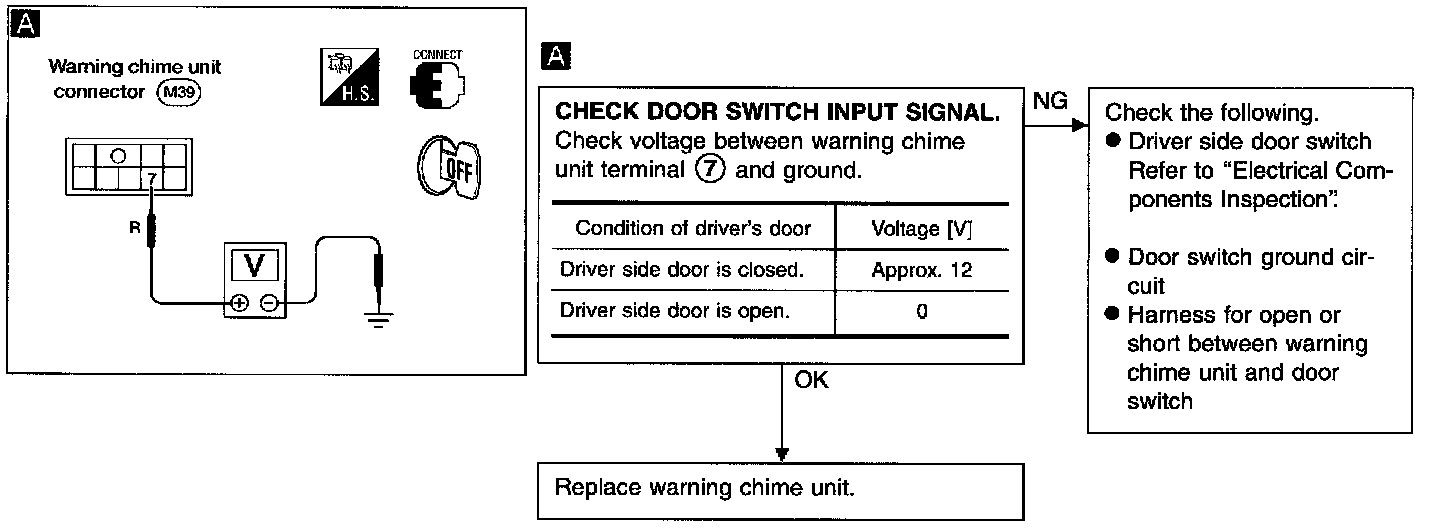

Without Power Door Locks
