Engine: Testing and Inspection

NVH Troubleshooting Chart-Engine Noise:

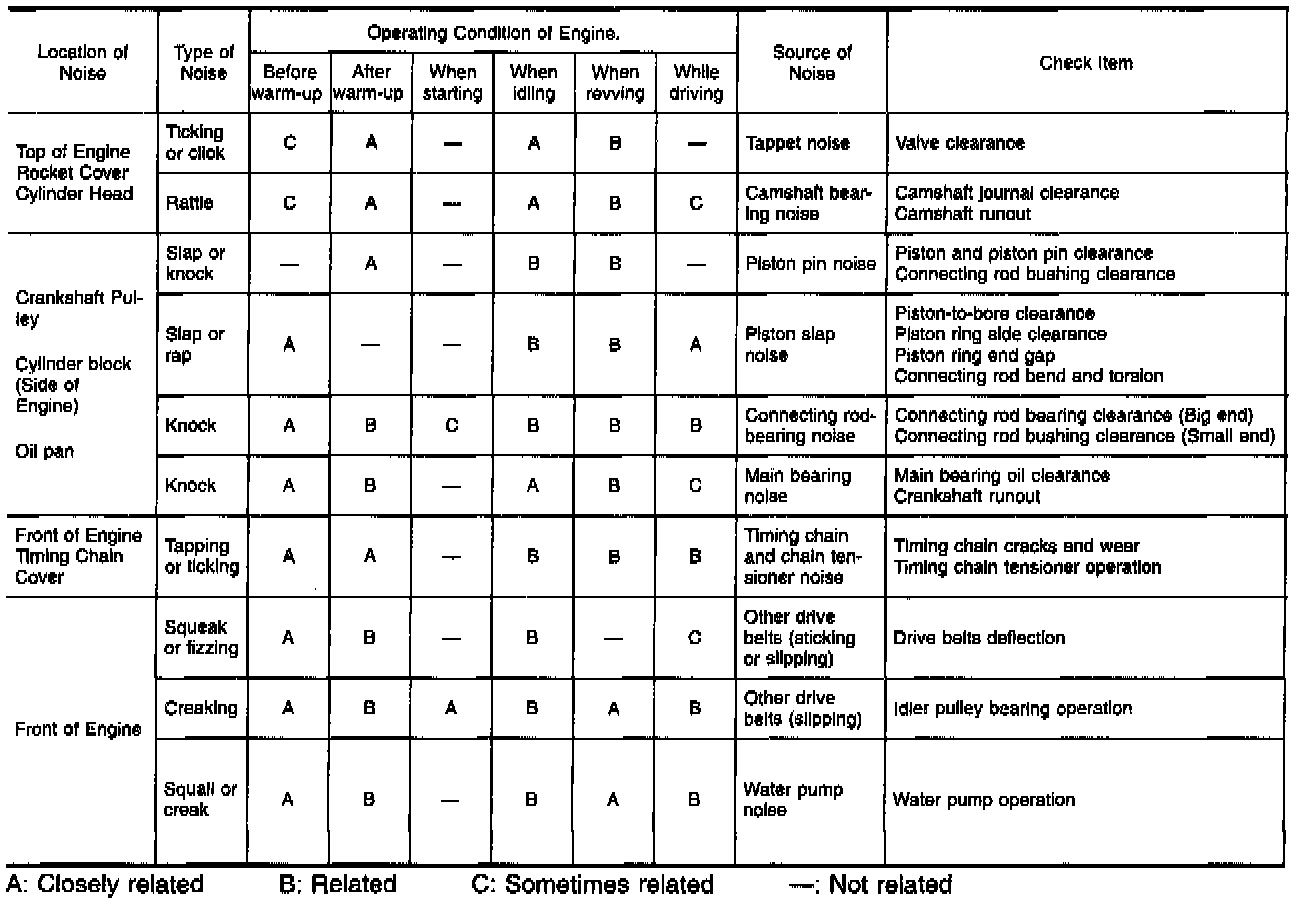

Use the chart below to help you find the cause of the problem.

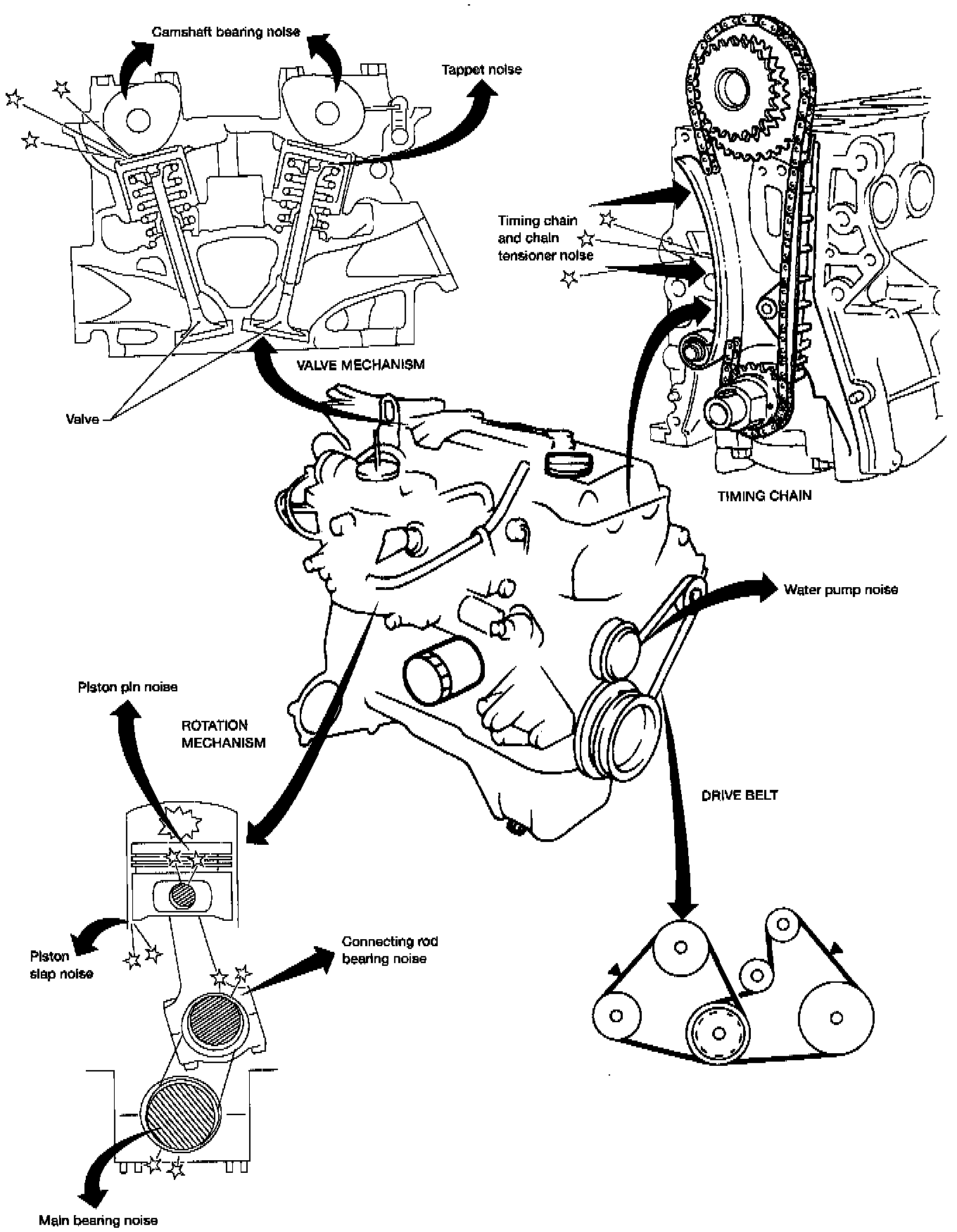

1. Locate the area where noise occurs.
2. Confirm the type of noise.
3. Specify the operating condition of engine.
4. Check specified noise source.
If necessary, repair or replace these parts.
