Trunk Lamp

MODELS WITHOUT POWER DOOR LOCKS

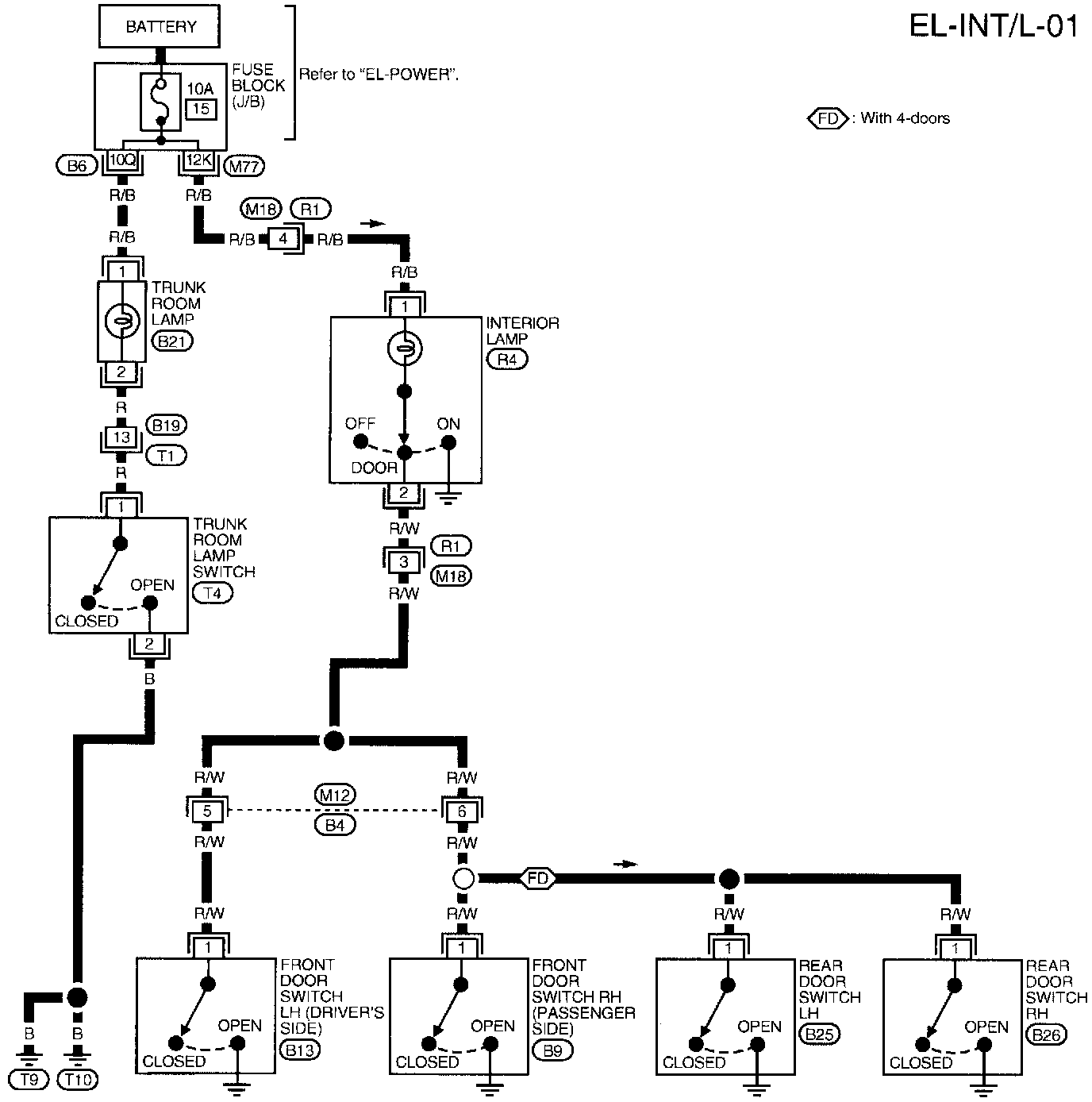

Circuit Diagrams





Circuit Connectors


MODELS WITH POWER DOOR LOCKS

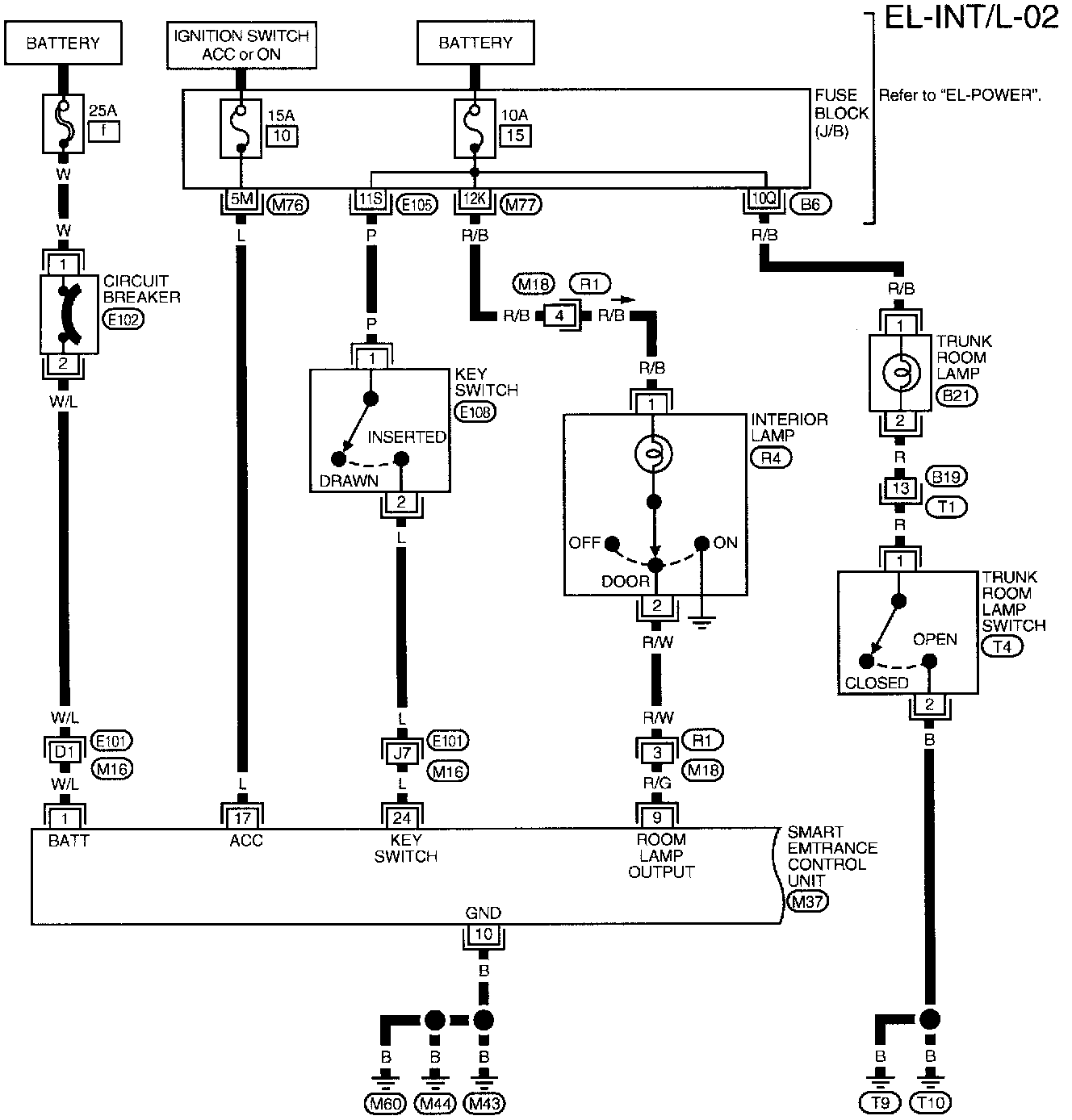

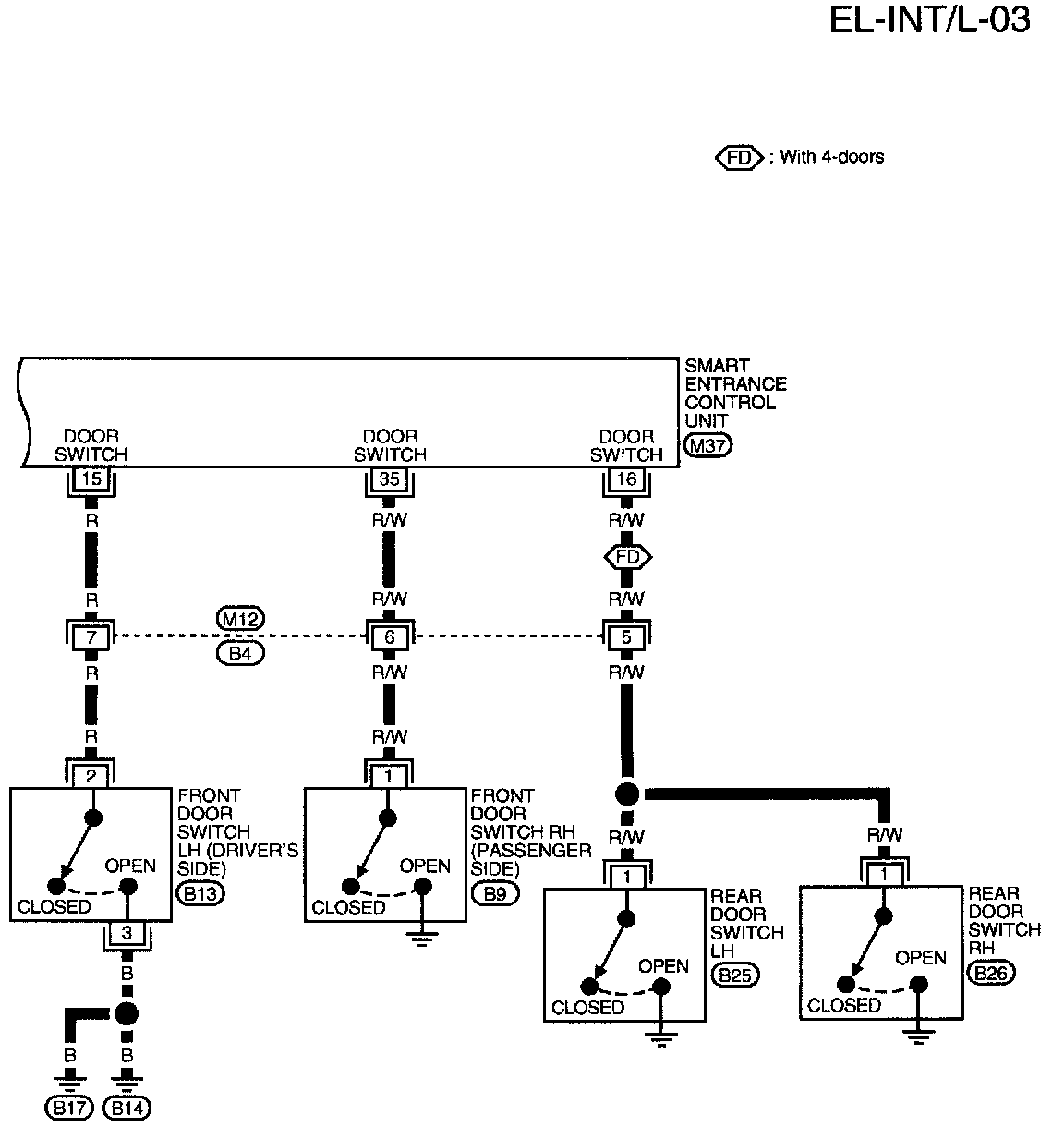

Circuit Diagrams








Circuit Connectors





M16, E101 Main Harness and Engine Room Harness Terminal Arrangement





M37 Smart Entrance Control Unit Terminal Arrangement
