Seals and Gaskets: Service and Repair

1. Drain gear oil from transaxle.
2. Remove drive shafts.

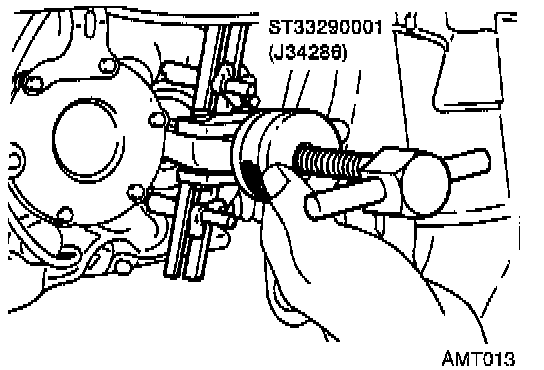

3. Remove differential oil seal with Tool.

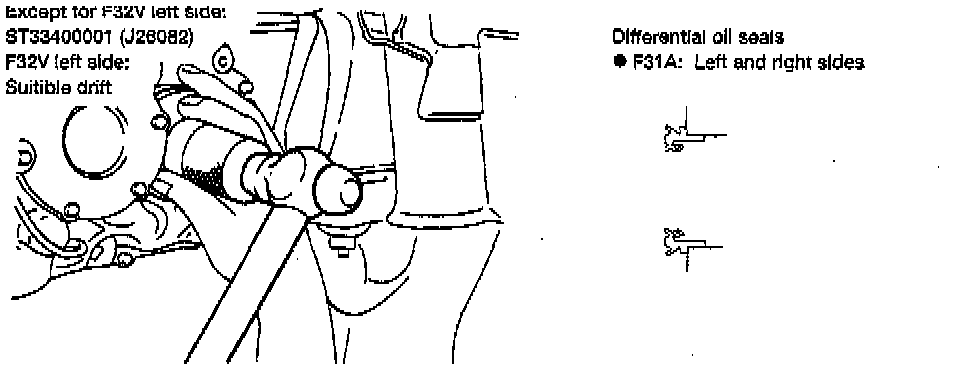

4. Using a suitable drift, install differential oil seal. Apply multi-purpose grease to seal lip of oil seal before installing.
5. Install drive shafts.
