Clutch: Service and Repair

REMOVAL AND INSTALLATION

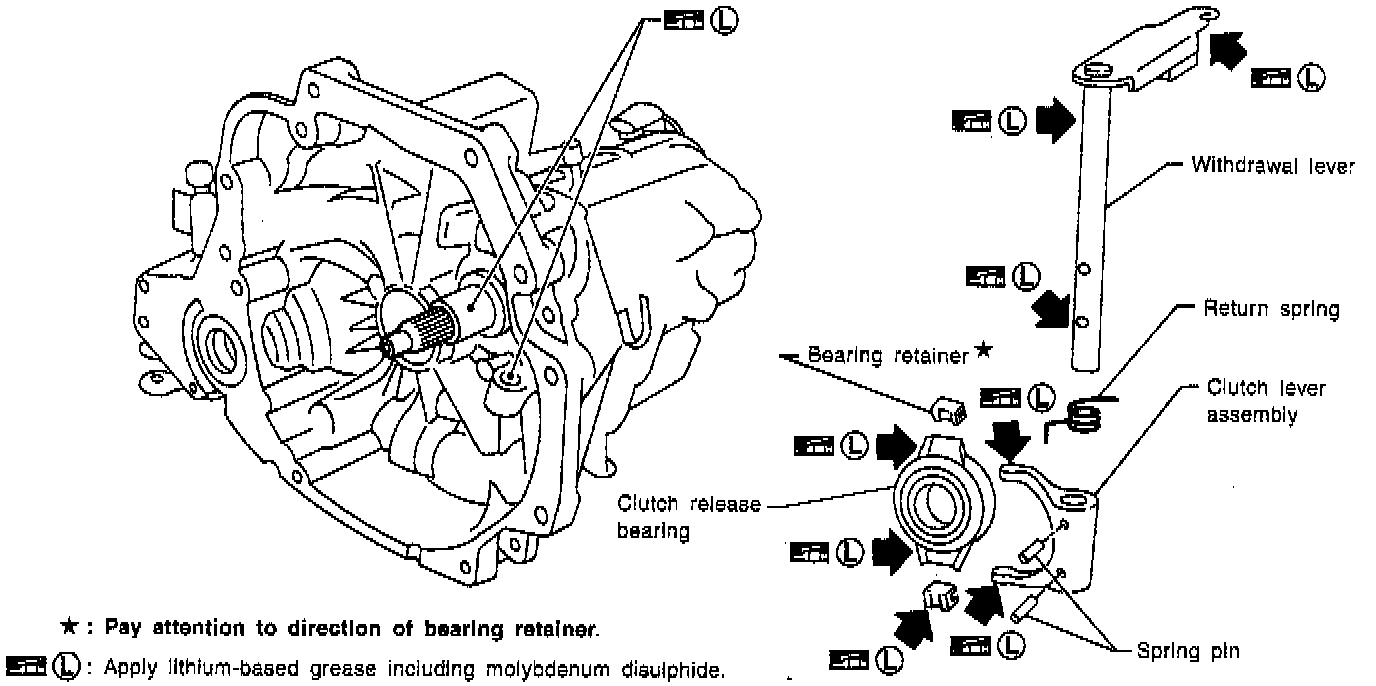

- Remove release bearing by pulling bearing retainers outward.

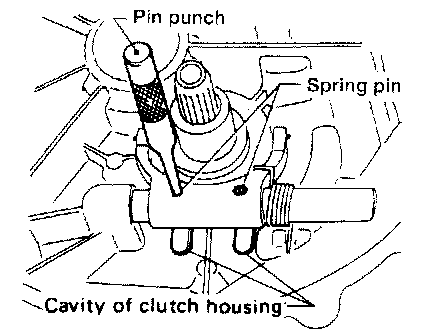

- Align spring pin with cavity of clutch housing and tap out spring pin.
- To install, reverse removal procedure.

INSPECTION
Check the following items, and replace if necessary.
- Release bearing, to see that it rolls freely and is free from noise, cracks, pitting or wear.
- Release sleeve and withdrawal lever rubbing surface, for wear, rust or damage.





LUBRICATION

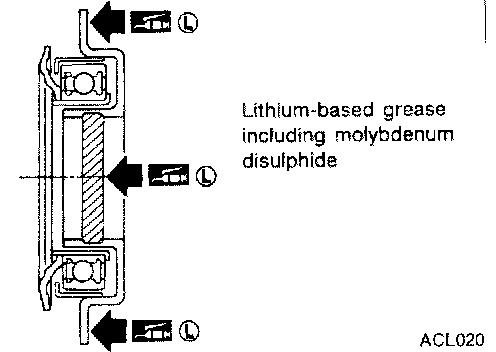

- Apply recommended grease to contact surface and rubbing surface.
- Too much lubricant may damage clutch disc facing.
