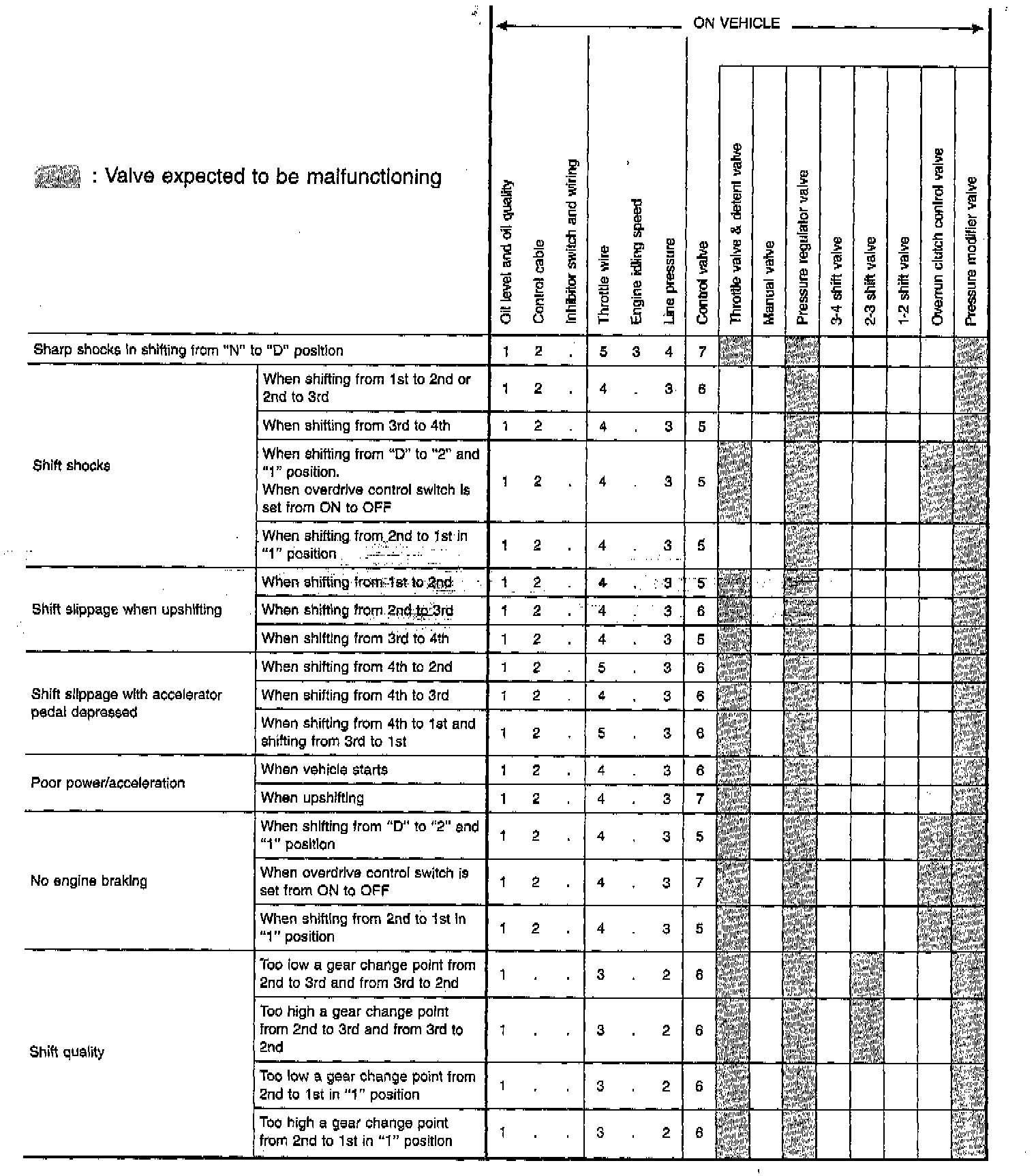

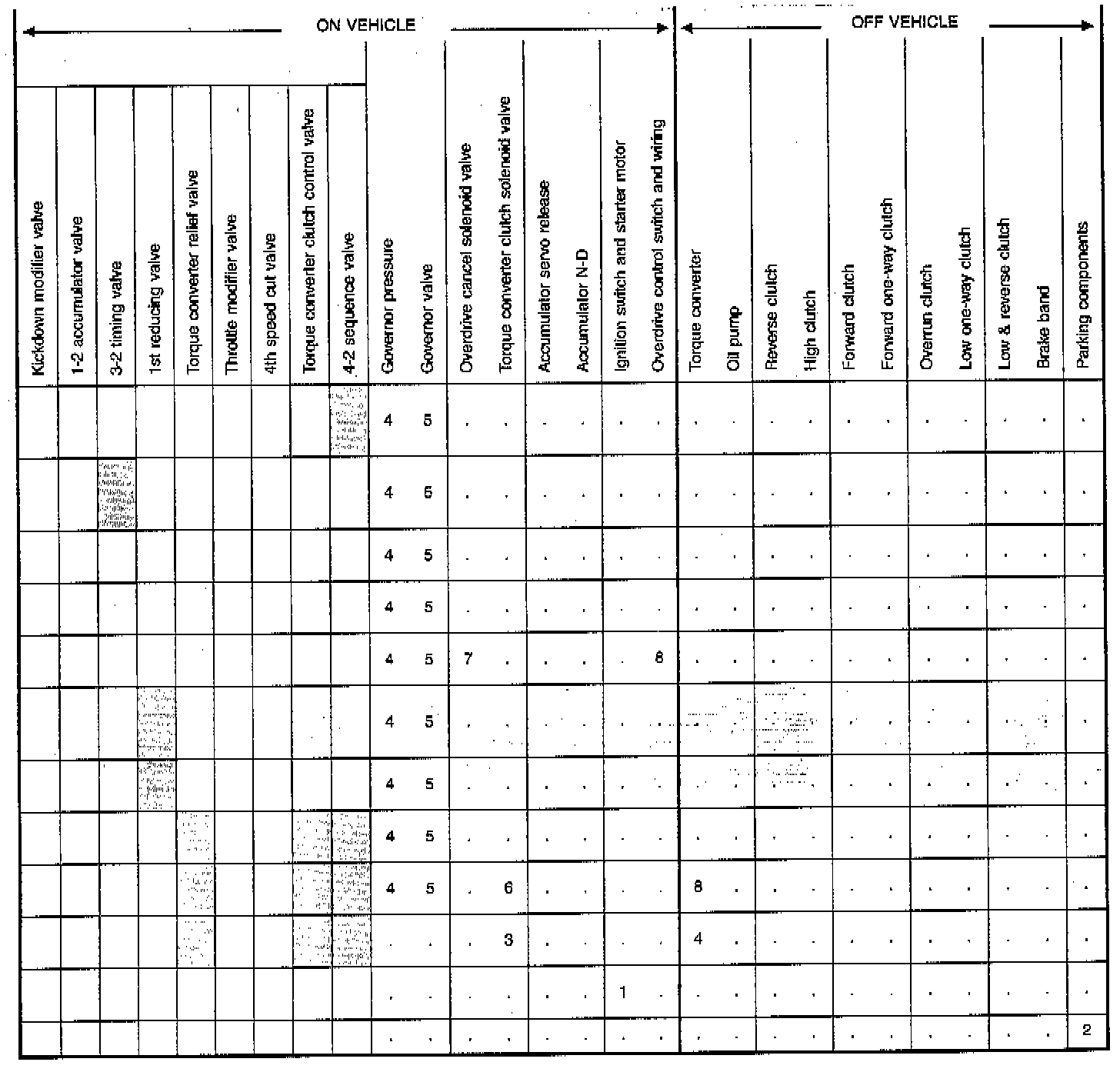

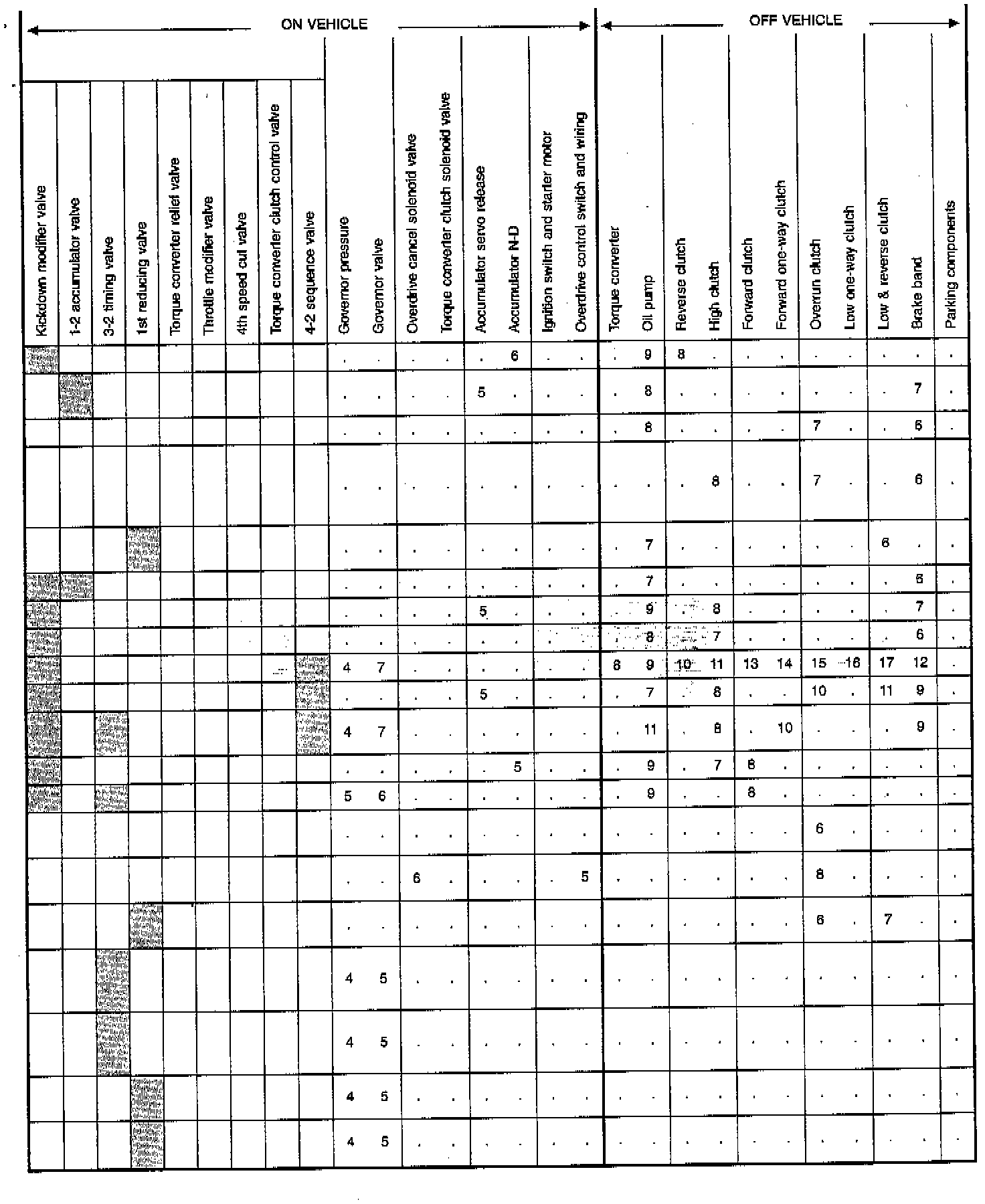

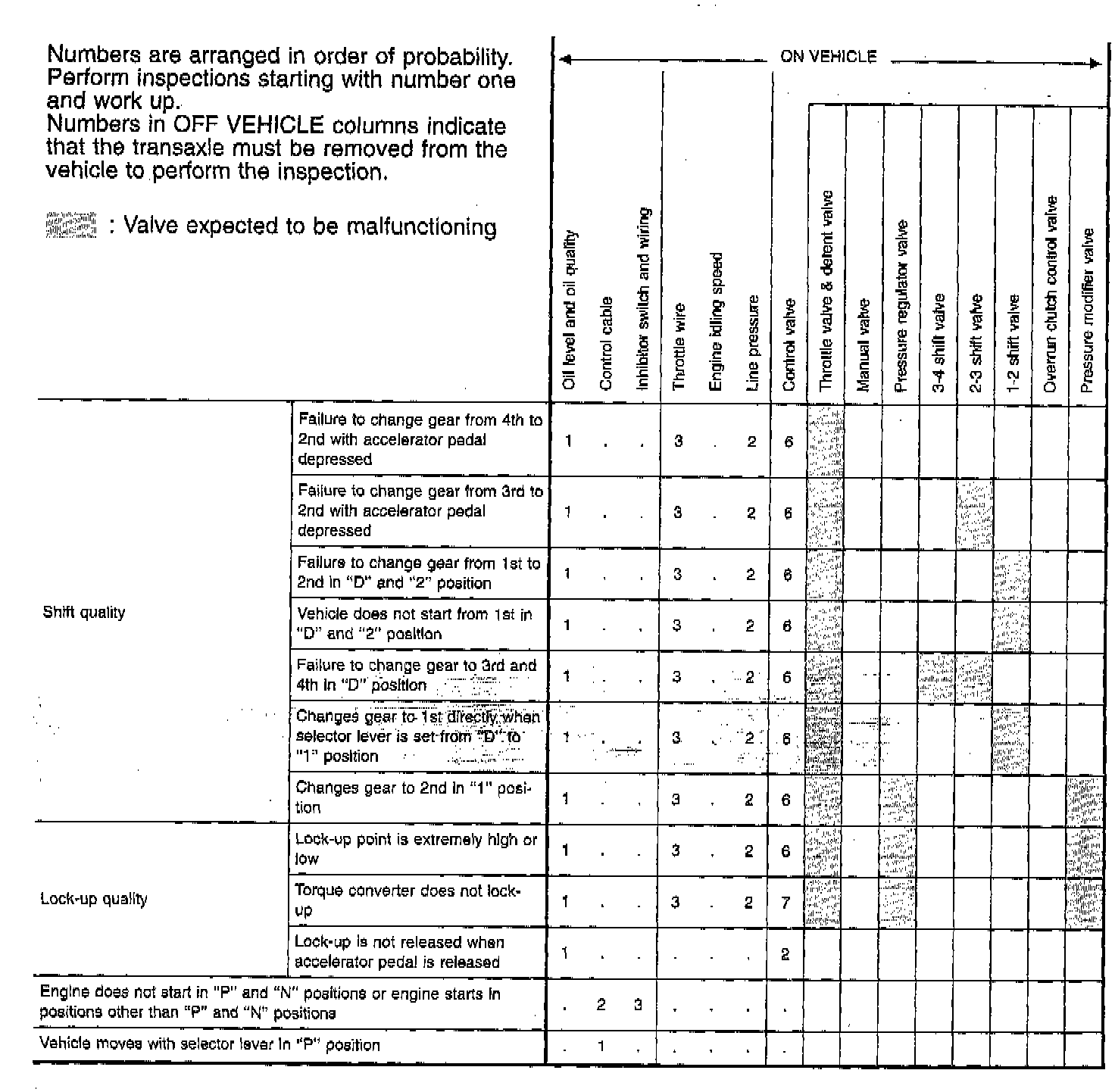

Symptom Related Diagnostic Procedures

Numbers are arranged in order of probability. Perform inspections starting with number one and work up. Numbers in OFF VEHICLE columns indicate that the transaxle must be removed from the vehicle to perform the inspection.
Valves expected to be malfunctioning are shaded.
