Differential Side Seal, Automatic Transaxle

REPLACEMENT
1. Remove drive shaft assemblies.

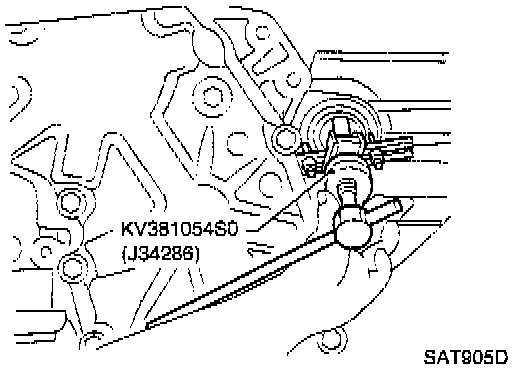

2. Remove oil seals.

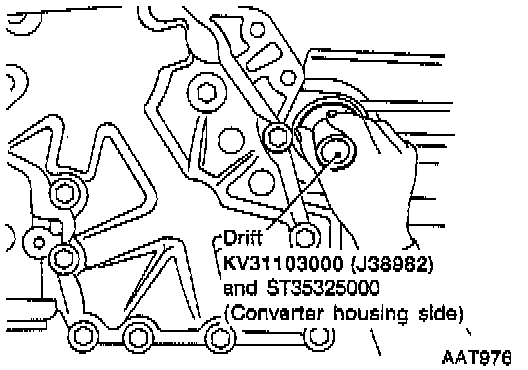

3. Install oil seals. Apply ATF to oil seal surface before installing.

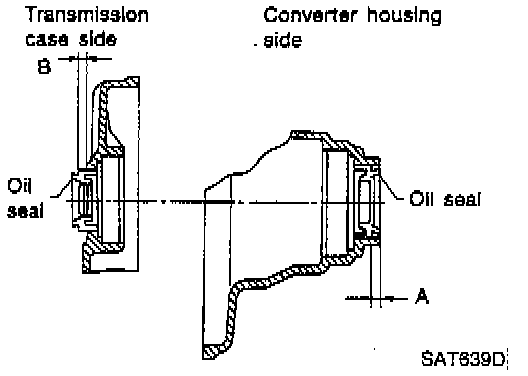

- Install oil seals so that dimensions "A" and "B" are within specifications.
A = 5.5 - 6.5 mm (0.217 - 0.256 inch)
B = 0.5 mm (0.020 inch) or less
4. Reinstall any part removed.
