Governor: Service and Repair

REPLACEMENT
1. Remove governor cap snap ring.

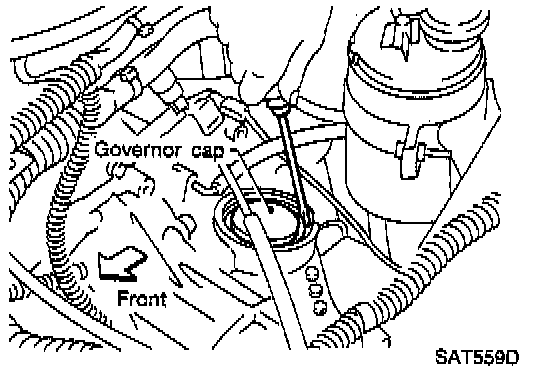

2. Remove governor cap.

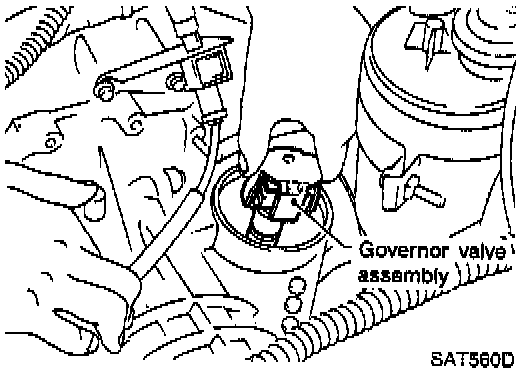

3. Remove governor valve assembly from transaxle.
4. Check governor valve assembly for damage or wear.
