Sentra XE L4-1597cc 1.6L DOHC MFI (GA16DE)
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Starting System
>>
Diagrams
>>
Electrical Diagrams
>>
M/T Model Wiring Diagram
M/T Model Wiring Diagram

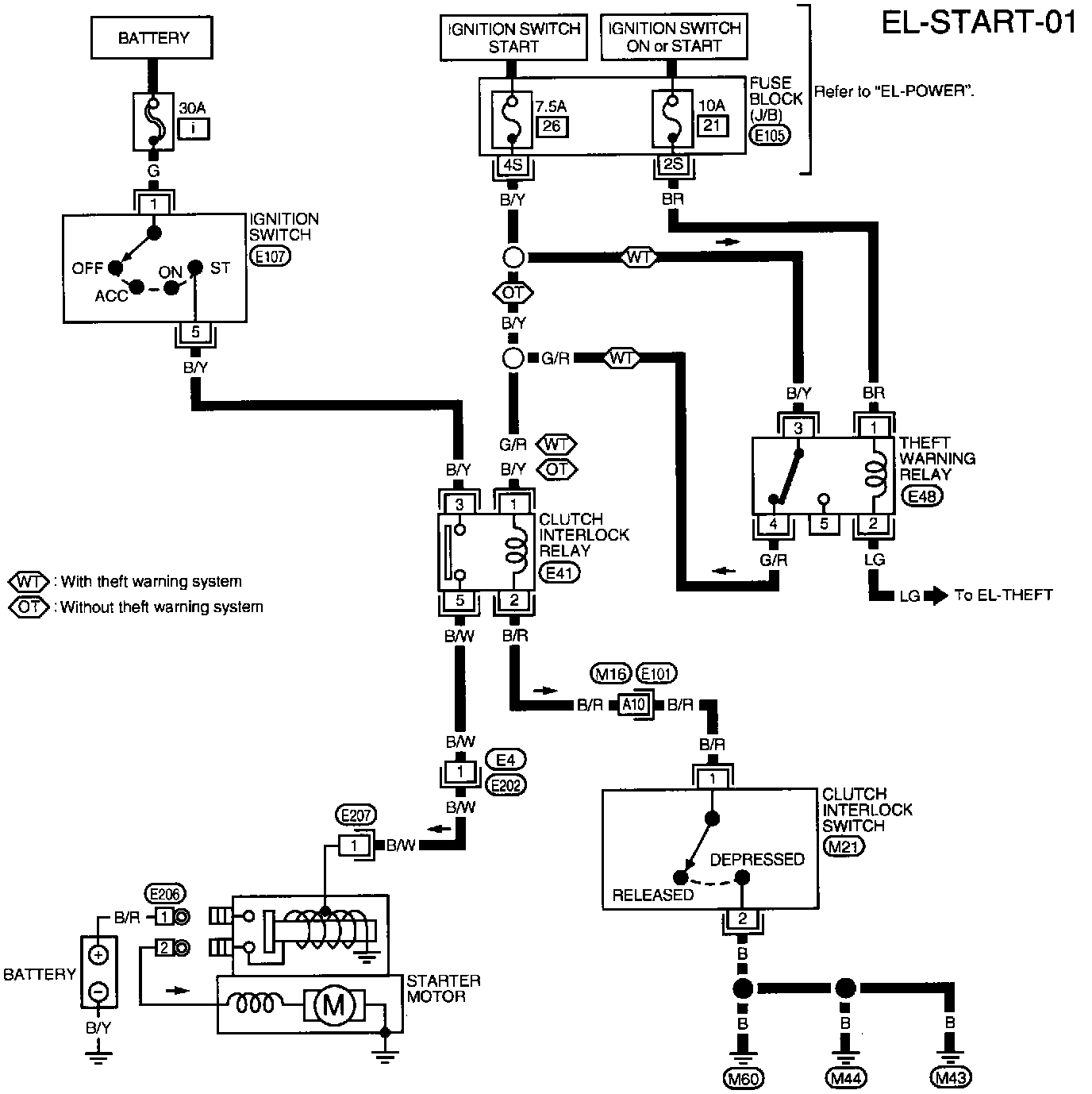

EL-START-01 Starting System (M/T Models):
