With IC Regulator

Generator Test: With IC Regulator:

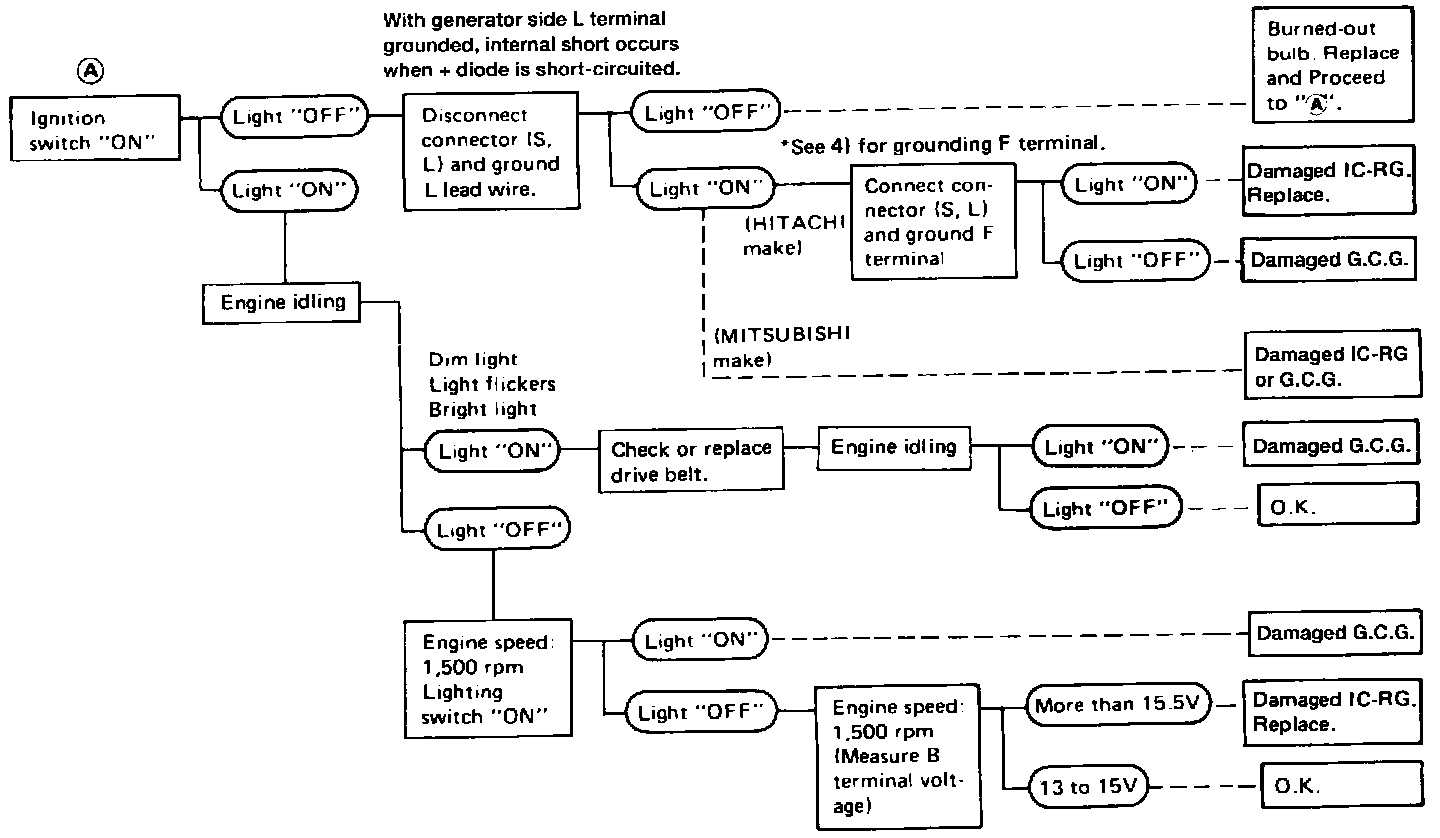

Before conducting a generator test, make sure that the battery is fully charged. A 30-volt voltmeter and suitable test probes are necessary for the test. The generator can be checked easily by referring to the Inspection Table.

^ Before starting diagnosis, inspect the fusible link.
^ use fully charged battery.
When field circuit is open, check condition of rotor coil, rotor slip ring and brush. If necessary, replace faulty parts with new ones.
