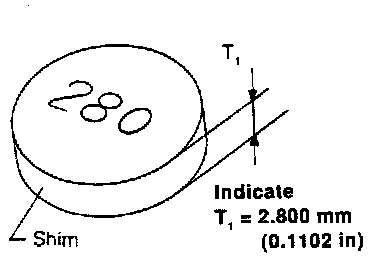

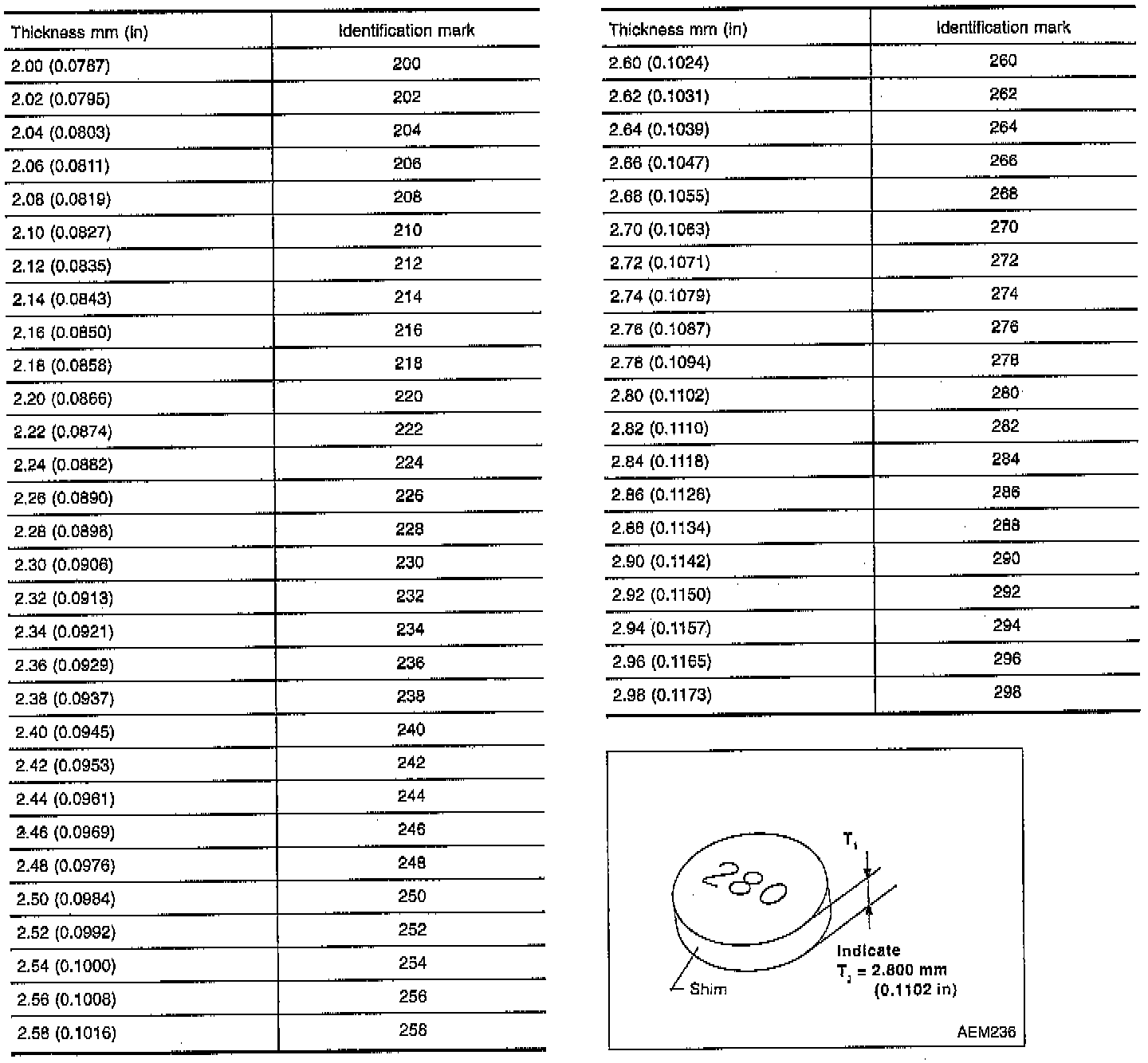

Valve Clearance Shim Selection

VALVE CLEARANCE SPECIFICATIONS
For Adjusting (Hot)
Intake 0.32 - 0.40 mm (0.013 - 0.016 inch)
Exhaust 0.37 - 0.45 mm (0.015 - 0.018 inch)
For Adjusting (Cold) [1]
Intake 0.25 - 0.33 mm (0.010 - 0.013 inch)
Exhaust 0.32 - 0.40 mm (0.013 - 0.016 inch)
For Checking (Hot)
Intake 0.21 - 0.49 mm (0.008 - 0.019 inch)
Exhaust 0.30 - 0.58 mm (0.012 - 0.023 inch)

[1] At a temperature of approximately 20° C (68° F)

NOTE: Whenever valve clearances are adjusted to cold specifications, check that the clearances satisfy hot specifications and adjust again, if necessary.
