Sentra XE L4-1597cc 1.6L DOHC MFI (GA16DE)
>>
Repair and Diagnosis
>>
Relays and Modules
>>
Relays and Modules - Instrument Panel
>>
Speedometer Module
>>
Diagrams
>>
Electrical Diagrams
>>
Speedometer, Tachometer, Temp. and Fuel Gauges
Speedometer, Tachometer, Temp. and Fuel Gauges

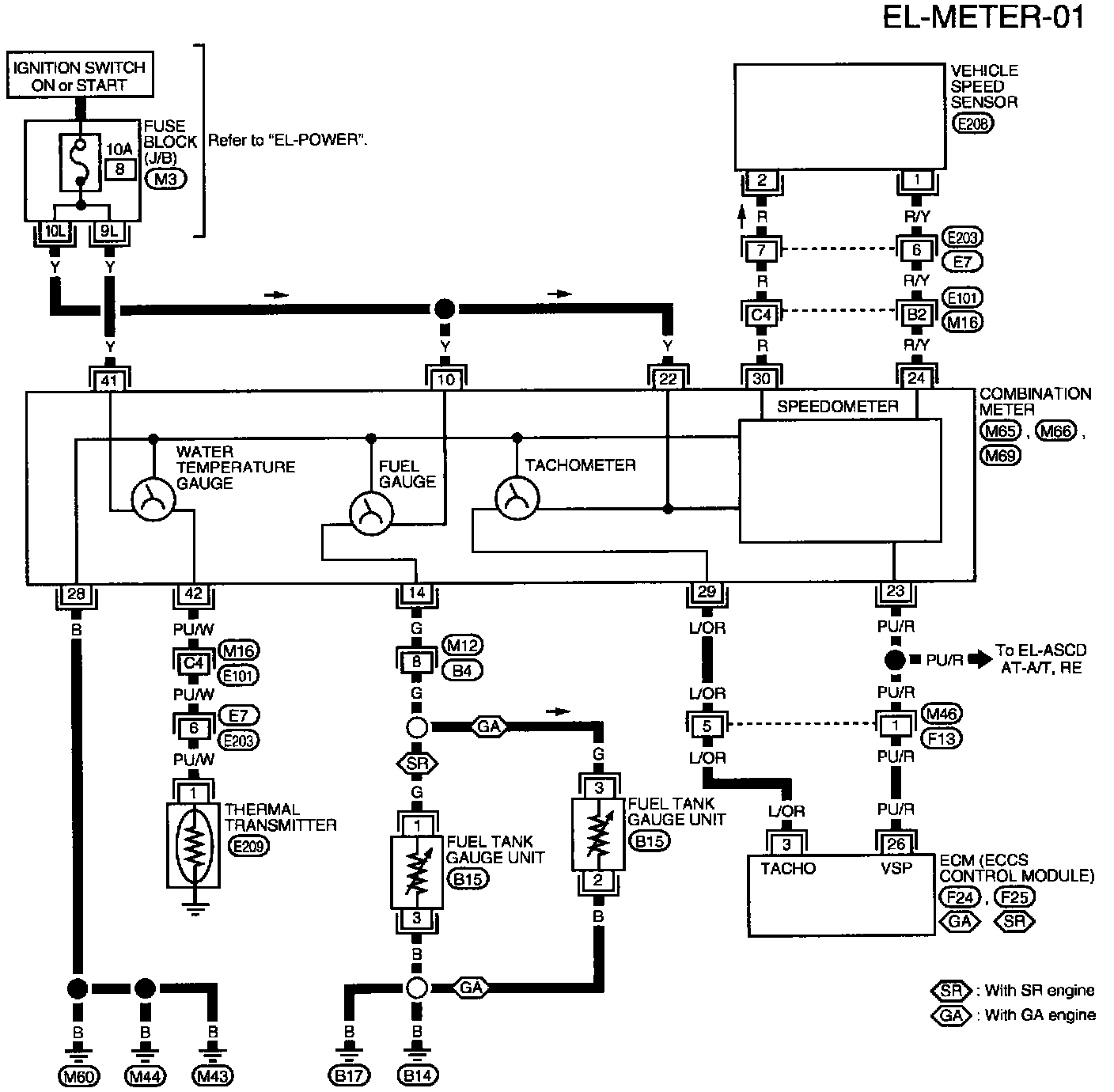

EL-METER-01 Speedometer, Tachometer, Temp. And Fuel Gauges:
