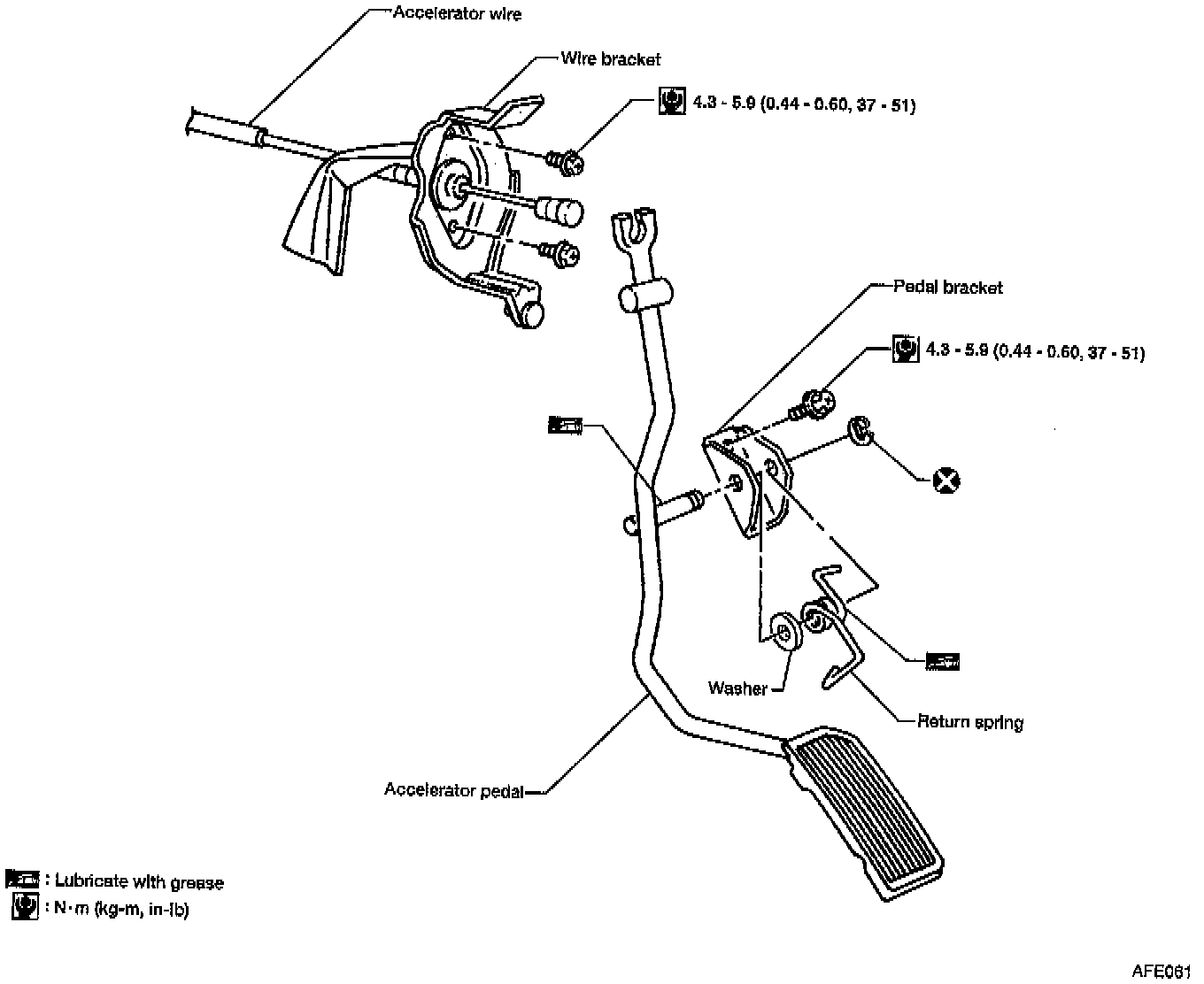

Throttle Cable/Linkage: Service Precautions

Caution:

^ When removing accelerator wire, mark lock nut's initial position.
^ Check that throttle valve opens fully when accelerator pedal is fully depressed. Check that throttle valve returns to idle position when accelerator pedal is released.
^ Check accelerator control parts for improper contact with any adjacent parts.
^ When connecting accelerator wire, do not twist or scratch inner wire.
^ For adjustment of automatic transmission throttle wire, refer to Automatic Transmission/Transaxle.
