Fuel Temperature Sensor: Testing and Inspection
COMPONENT INSPECTIONTank Fuel Temperature Sensor

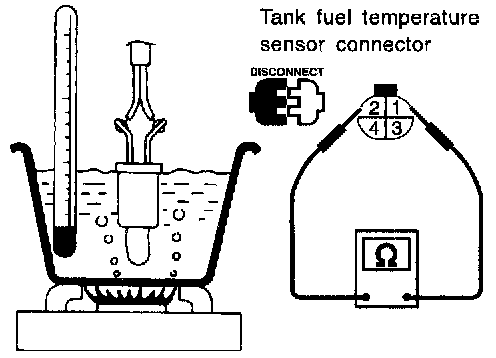

Check resistance as shown in the figure.

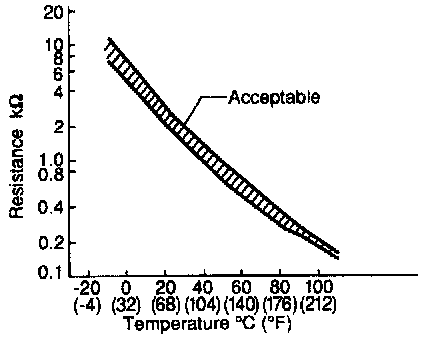

Temperature °C (°F)/ Resistance K Ohms
20 (68) / 2.3- 2.7
50 (122) / 0.79 - 0.90
If NG, replace tank fuel temperature sensor.
