Fog/Driving Lamp Switch: Service and Repair

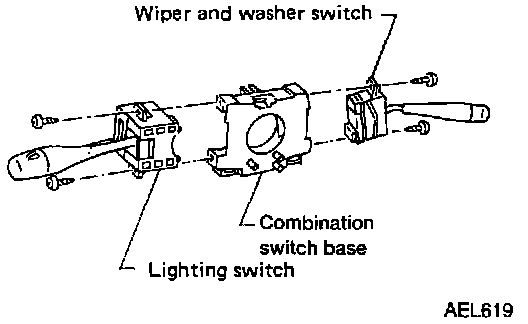

Combination Switch Replacement:

^ Each switch can be replaced without removing combination switch base.

Combination Switch Replacement:

^ To remove combination switch base, remove base attaching screws.

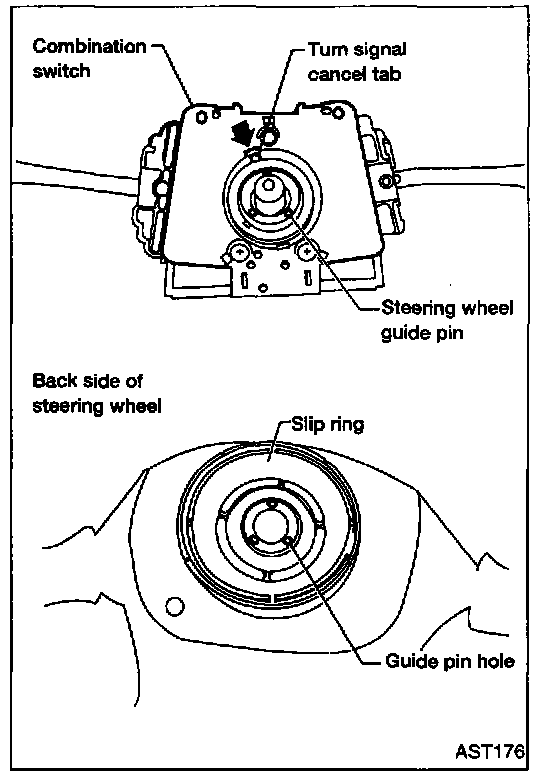

Combination Switch Replacement - Airbag models:

Air bag models
^ Before installing the steering wheel, align the turn signal cancel tube with the notch of combination switch.

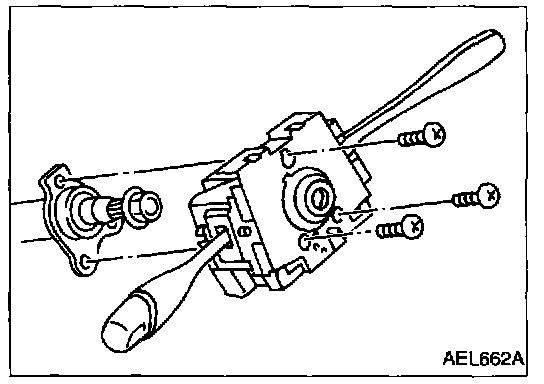

Combination Switch Replacement - Non-Airbag models:

Non Air bag models
