Diagnostic Procedure 3

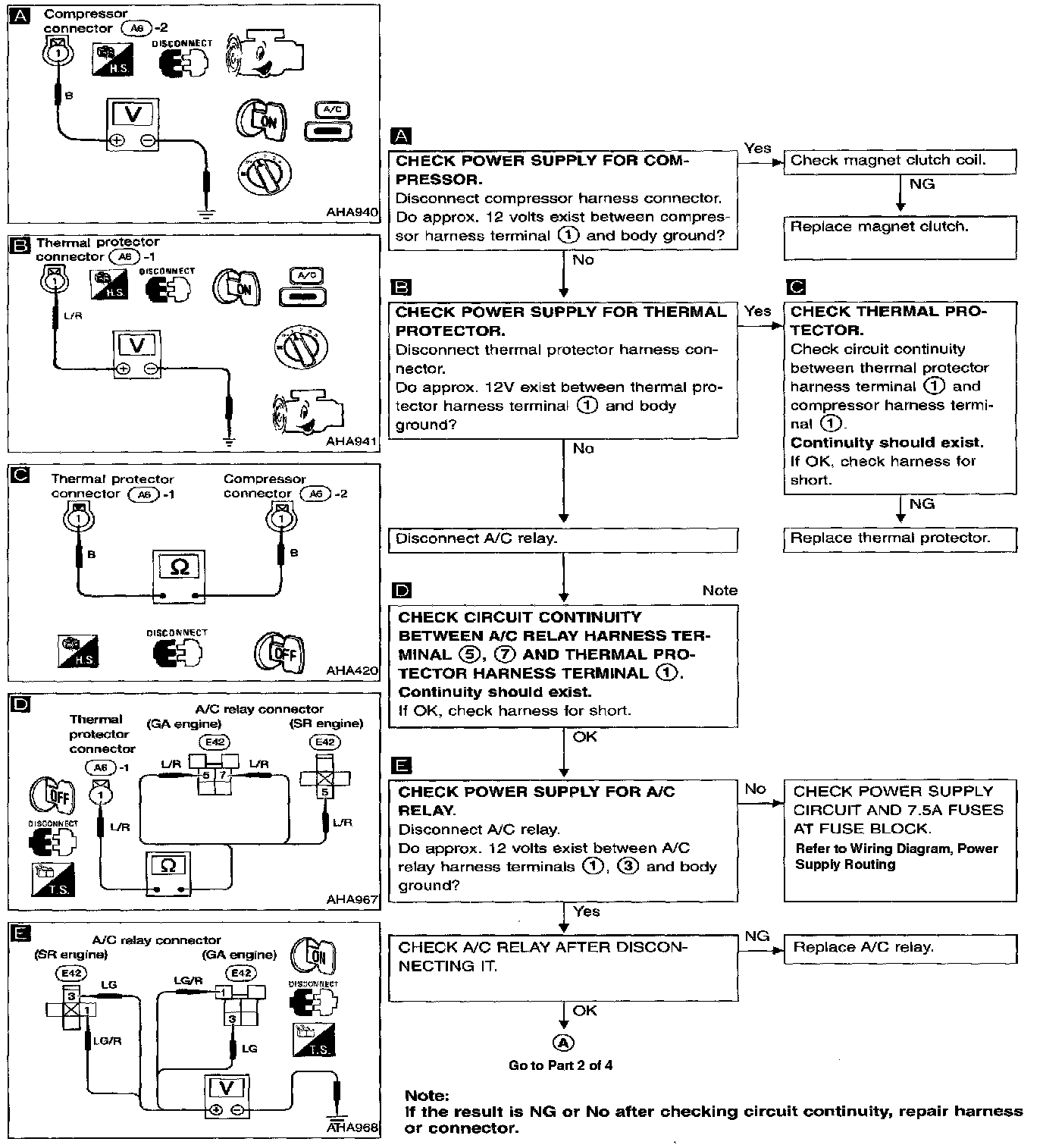

Diagnostic Procedure 3 (Part 1 Of 4):

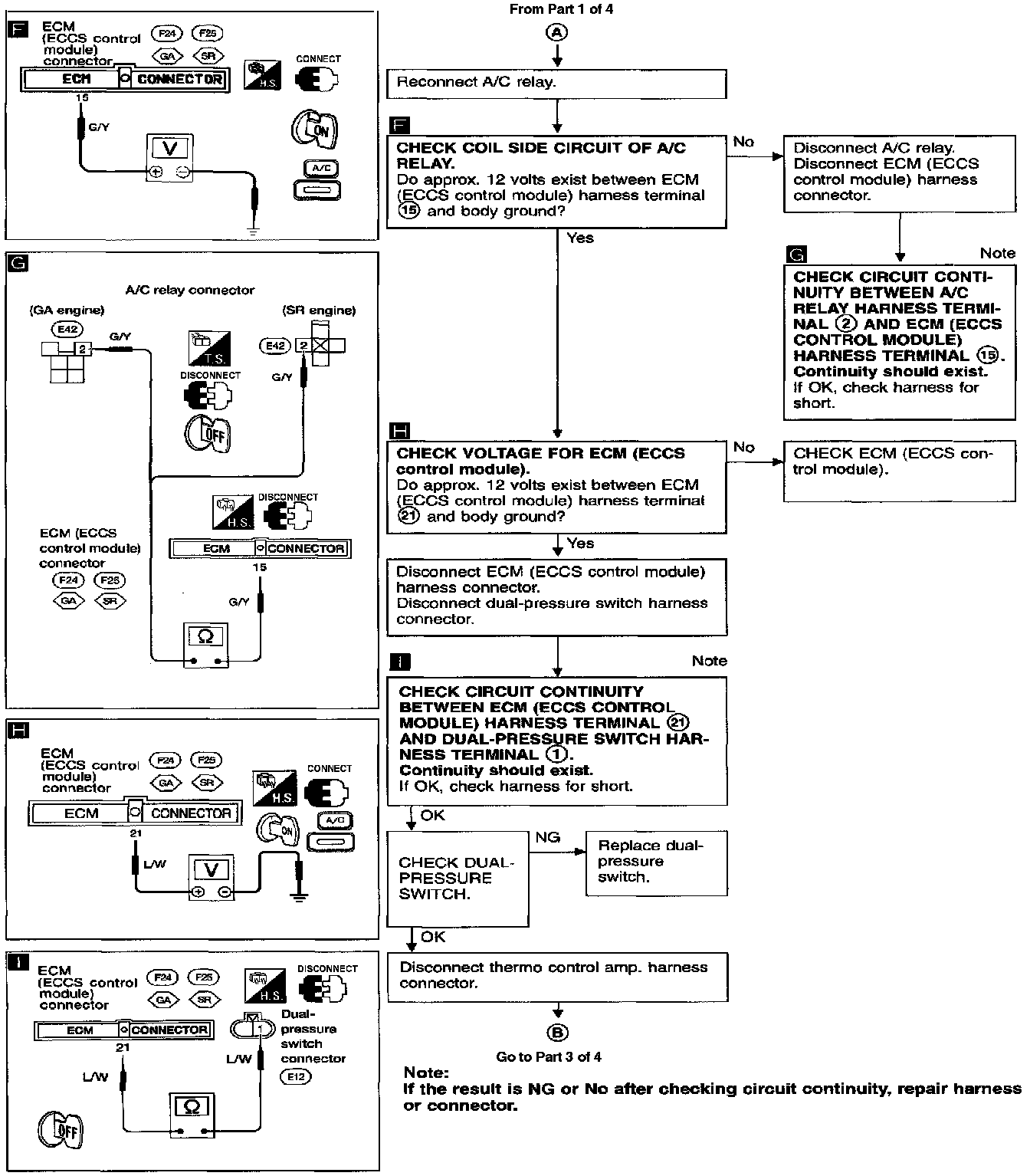

Diagnostic Procedure 3 (Part 2 Of 4):

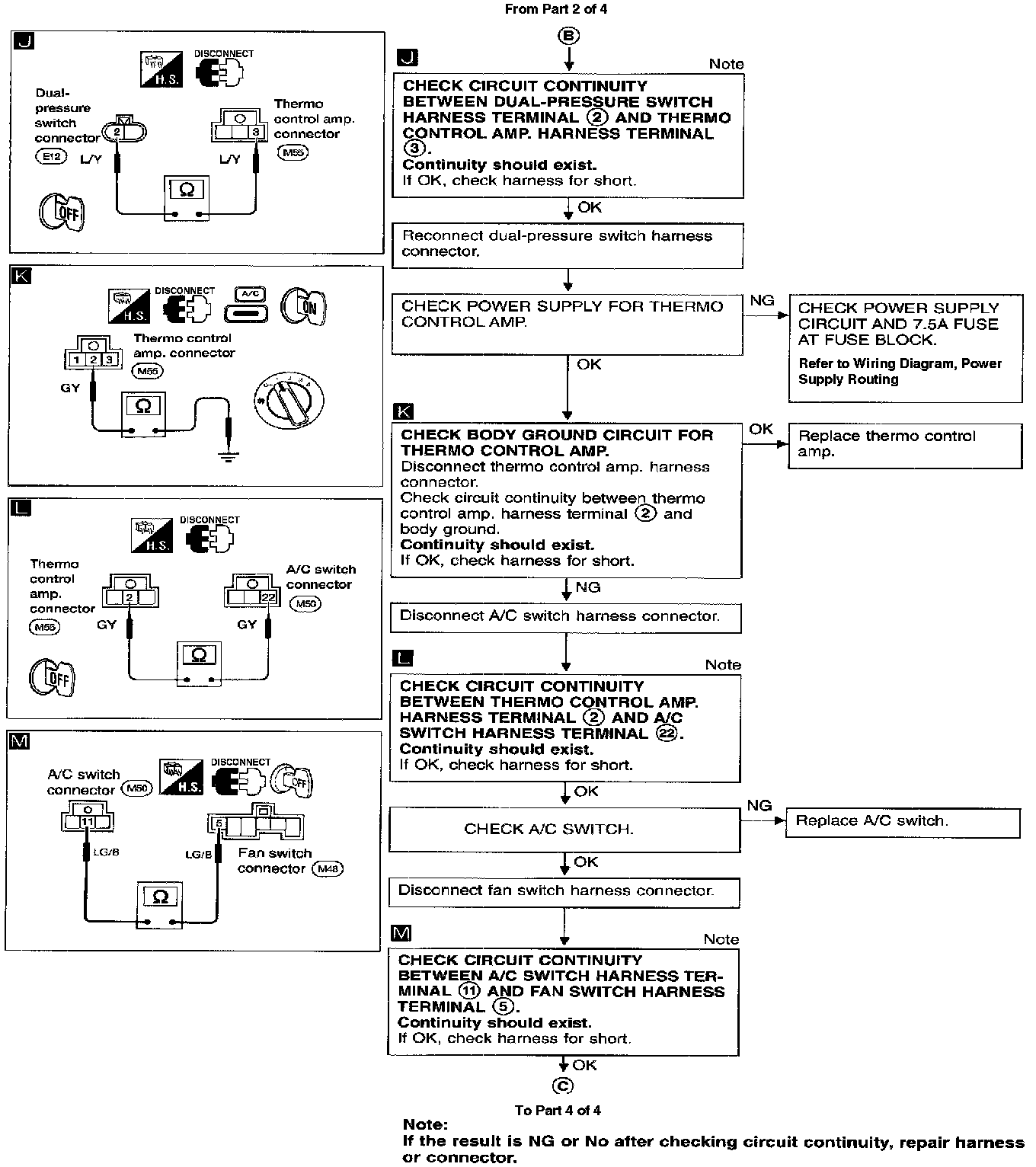

Diagnostic Procedure 3 (Part 3 Of 4):

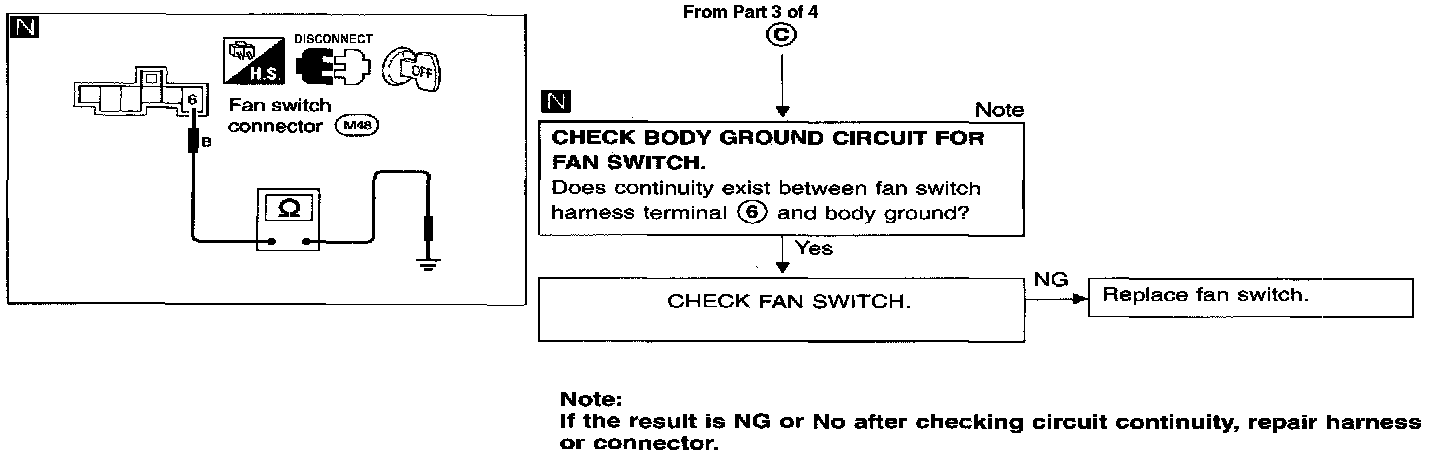

Diagnostic Procedure 3 (Part 4 Of 4):




SYMPTOM: Magnet clutch does not engage when A/C switch and fan switch are ON.
^ Perform PRELIMINARY CHECK 1 before referring to the flow chart.
