Diagnostic Procedure 2

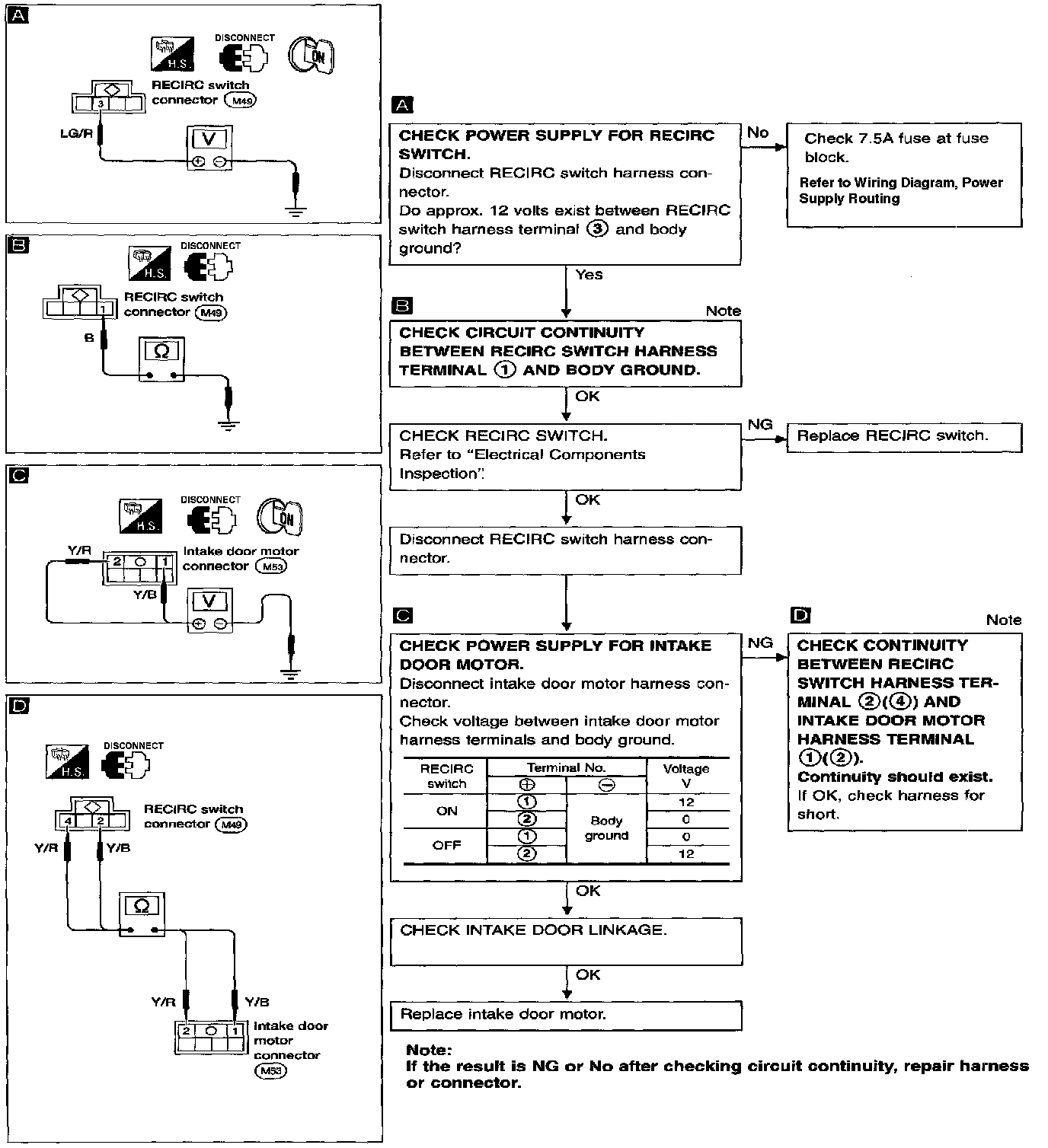

Diagnostic Procedure 2:




SYMPTOM: Intake door does not operate.
^ Perform Main Power Supply and Ground Circuit check before referring to the flow chart.
