Diagnostic Procedure 1

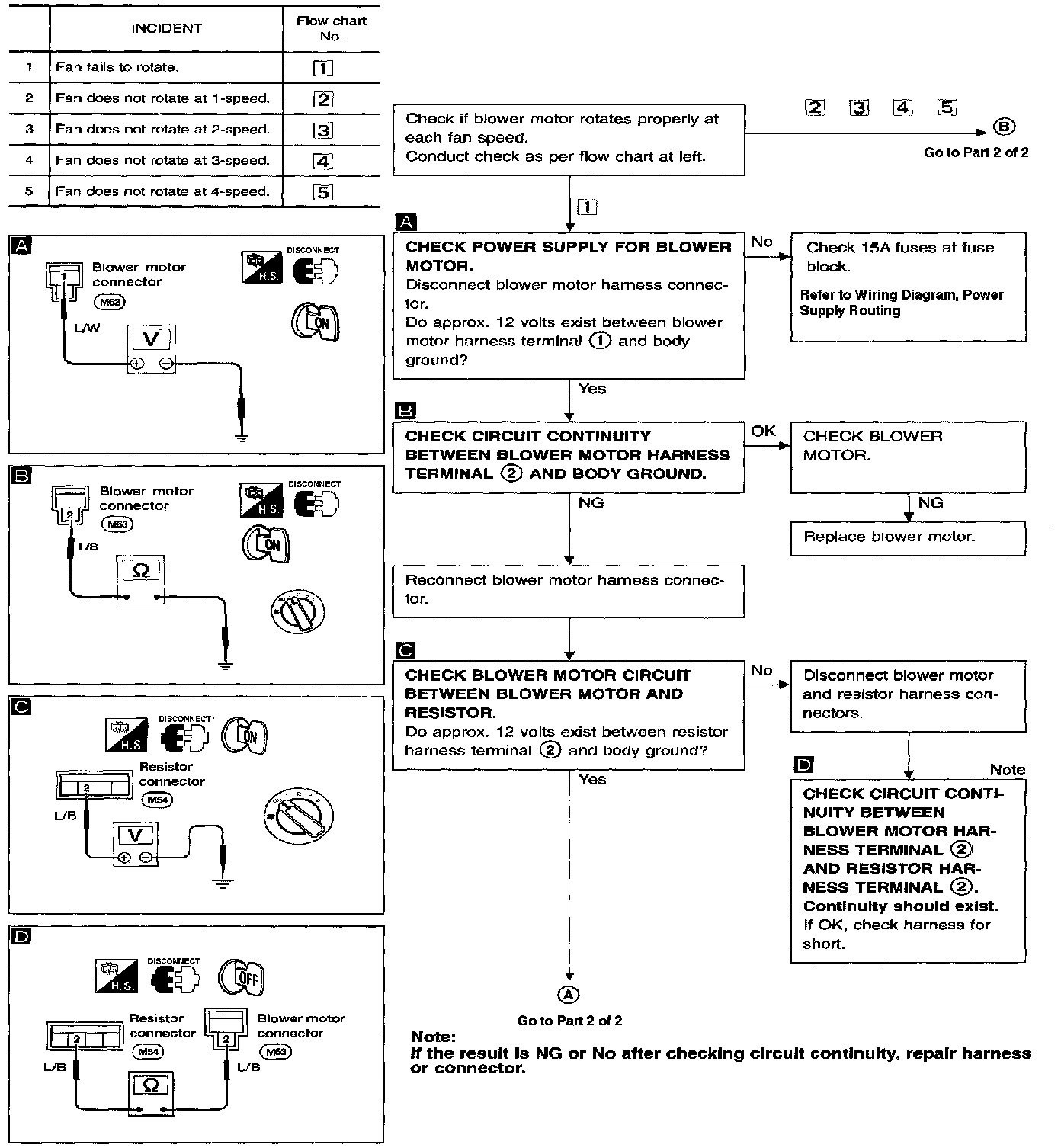

Diagnostic Procedure 1 (Part 1 Of 2):

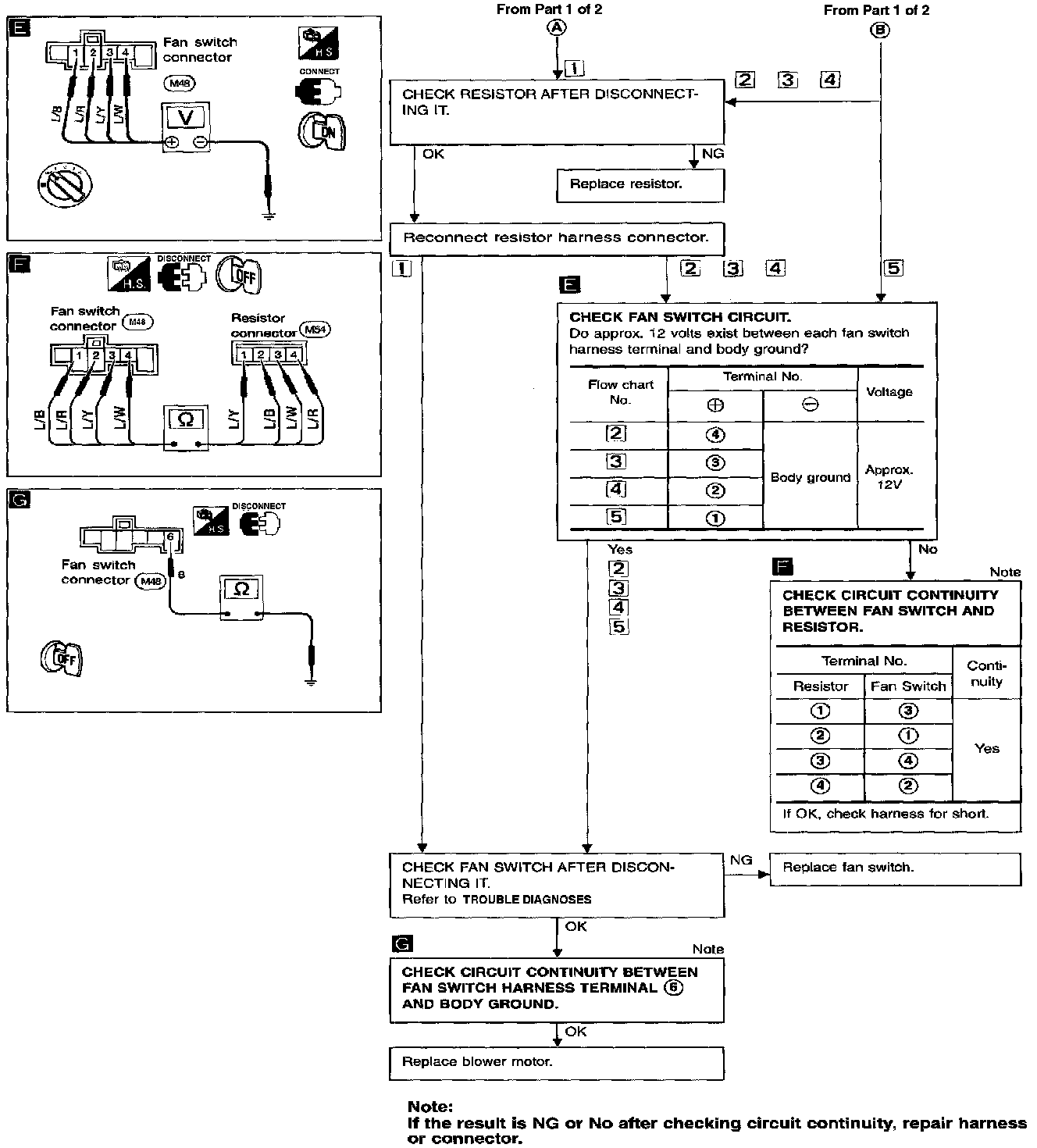

Diagnostic Procedure 1 (Part 2 Of 2):




SYMPTOM: Blower motor does not rotate.
^ Perform PRELIMINARY CHECK 1 before referring to the flow chart.
