Refrigerant Oil: Service and Repair

The lubricant used to lubricate the compressor circulates through the system with the refrigerant. Whenever any A/C component is replaced or gas leakage occurs, lubricant must be added.
If lubricant quantity is not maintained properly, the following malfunctions may result:
^ Lack of lubricant: May lead to a seized compressor
^ Excessive lubricant: Inadequate cooling (thermal exchange interference)

LUBRICANT
Name: NISSAN A/C System Lubricant Type R
Part No.: KLH00-PAGR0

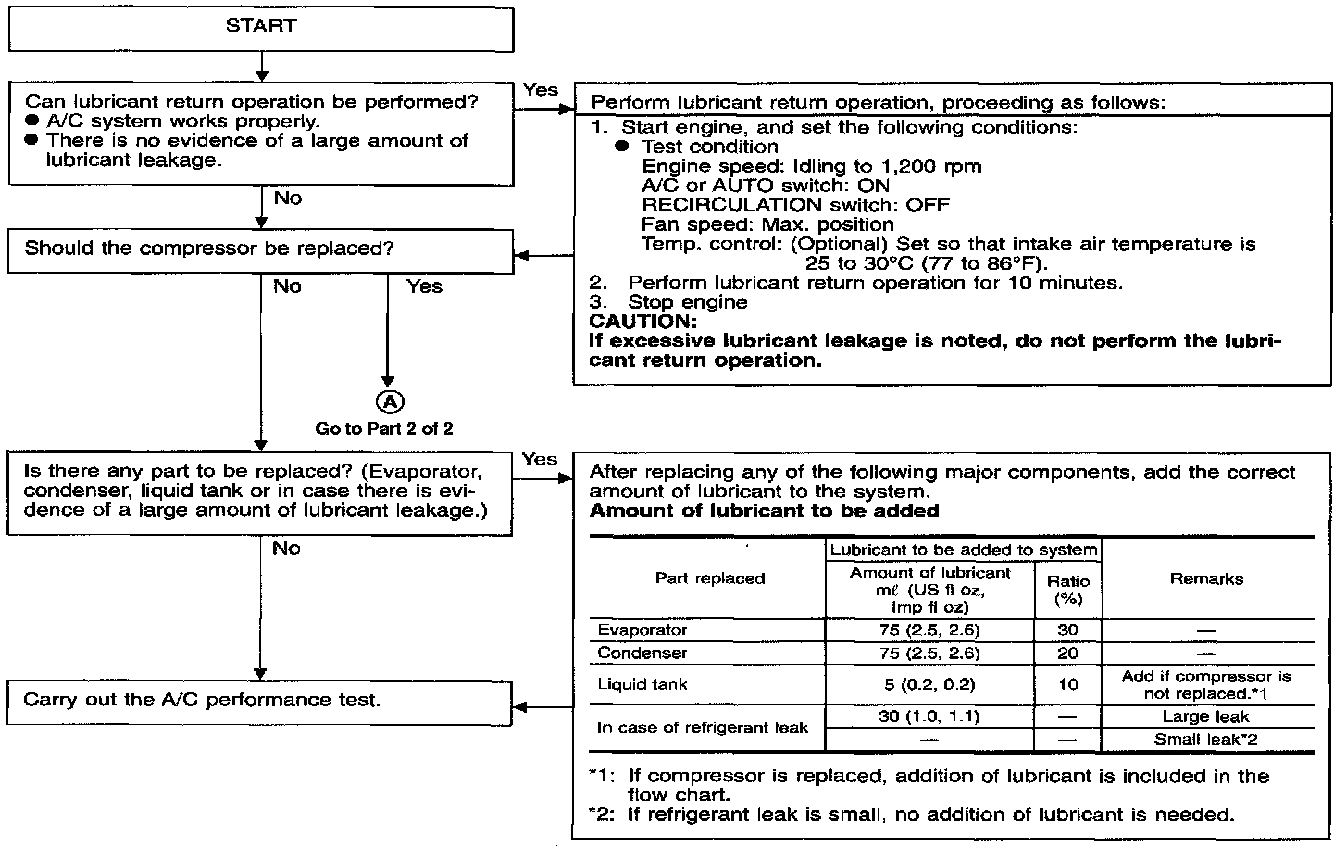

Compressor Lubricant Quantity (Part 1 Of 2):

Compressor Lubricant Quantity (Part 2 Of 2):

CHECKING AND ADJUSTING
Adjust the lubricant quantity according to the flow chart.

Compressor Lubricant Quantity:

Lubricant adjusting procedure for compressor replacement
