Air Door Cable: Adjustments

Mode Control Cable:

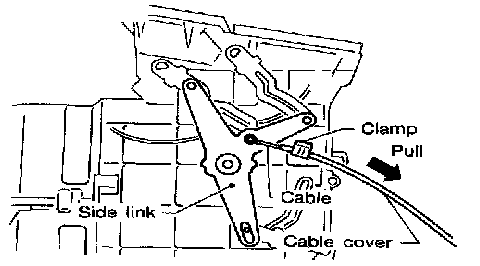

MODE CONTROL CABLE
1. Turn the mode control knob to the DEF position.
2. Set the side link in the DEF position by hand.
3. Pull on cable cover in the direction of arrow, then clamp cable cover.

After positioning control cable, check for proper operation.

Control Linkage Adjustment - Water Cock Control Rod:

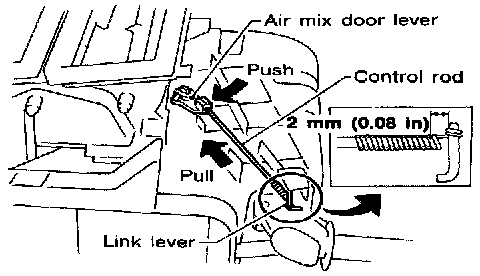

WATER COCK CONTROL ROD
^ When adjusting water cock control rod, first disconnect temperature control cable from air mix door lever. Reconnect temperature control cable and readjust it. Refer to "TEMPERATURE CONTROL CABLE."
1. Push air mix door lever in the direction of arrow.
2. Pull control rod in the direction of arrow to a clearance of about 2 mm (0.08 in) between ends of rod and link lever. Connect the rod to door lever.
After connecting control rod, check for proper operation.

Control Linkage Adjustment - Temperature Control Cable:

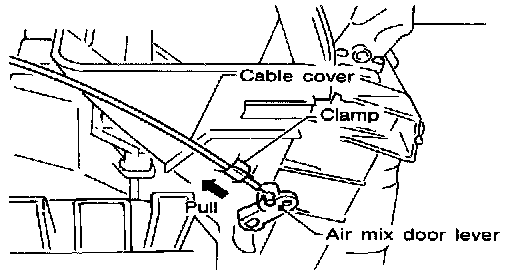

TEMPERATURE CONTROL CABLE
1. Move the temperature control knob to the full hot position.
2. Set the air mix door lever in the full hot position.
3. Pull on cable cover in the direction of arrow, then clamp cable cover.
After positioning control cable, check for proper operation.
