Runout

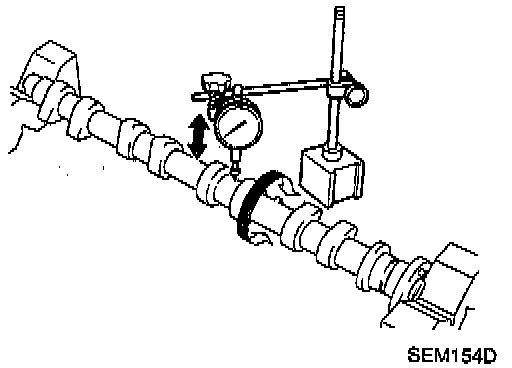

1. Measure the camshaft runout at the center journal. The runout (total indicator reading) standard value is less than 0.02 mm (0.0008 inch) and the limit is 0.1 mm (0.004 inch.)
2. If it exceeds the limit, replace the camshaft.
1. Measure the camshaft runout at the center journal. The runout (total indicator reading) standard value is less than 0.02 mm (0.0008 inch) and the limit is 0.1 mm (0.004 inch.)
2. If it exceeds the limit, replace the camshaft.
