Thermostat: Service and Repair

REPLACEMENT
- Refer to the illustration for service.
- Be careful not to spill coolant over engine compartment. Use a rag to absorb excess coolant.

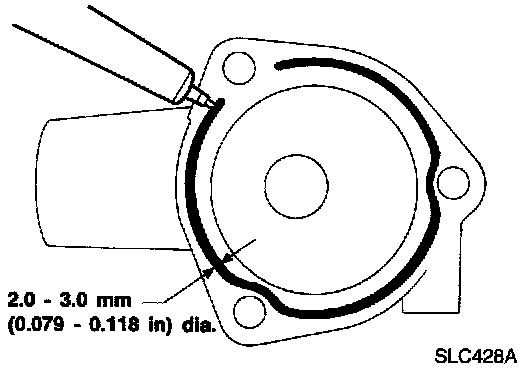

- - When installing water inlet apply liquid gasket as shown.

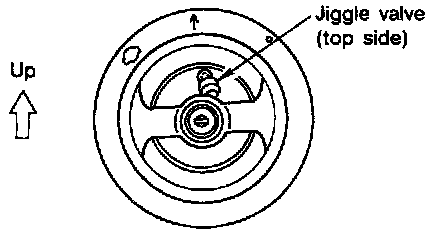

- Install thermostat with jiggle valve or air bleeder at upper side.
- After installation, run engine for a few minutes, and check for leaks.
