Thermostat Housing: Service and Repair

REPLACEMENT

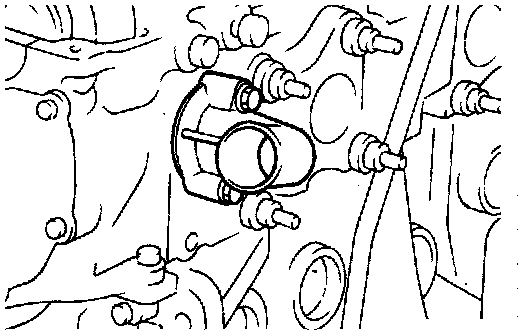

1. Use a scraper to remove old liquid gasket from water outlet. Also remove traces of liquid gasket from mating surface of cylinder head.

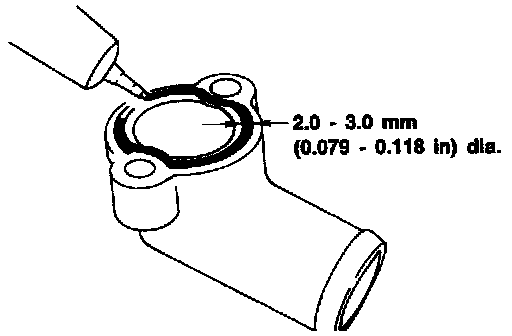

2. Apply a continuous bead of liquid gasket to mating surface of water outlet. Use Genuine Liquid Gasket or equivalent.
