Fuel Injection System Function (Lean Side)
Fuel Injection System Function (Lean Side)

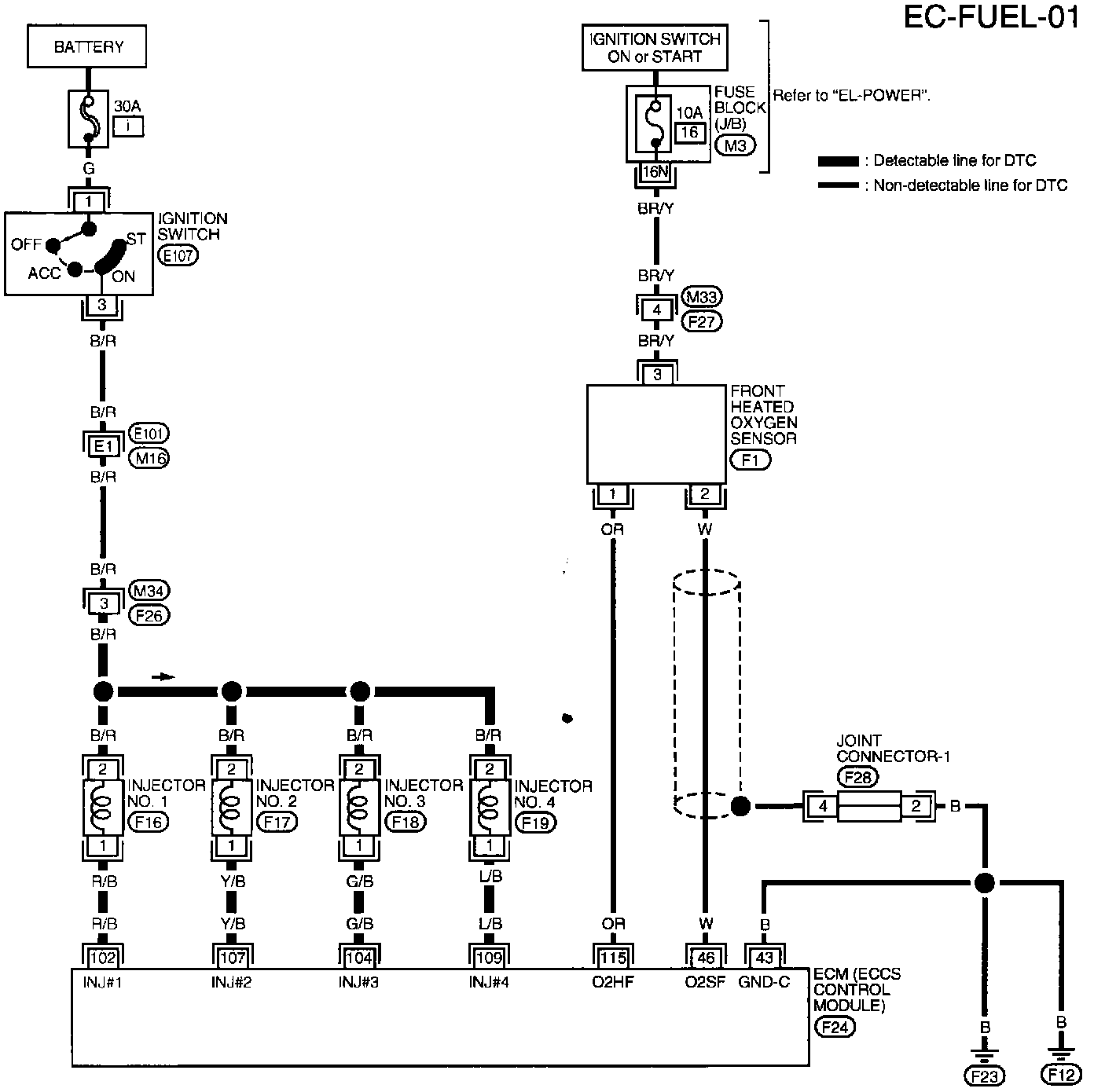

EC-FUEL-01 Fuel Injection System Function (Lean Side) (DTC: P0171):
